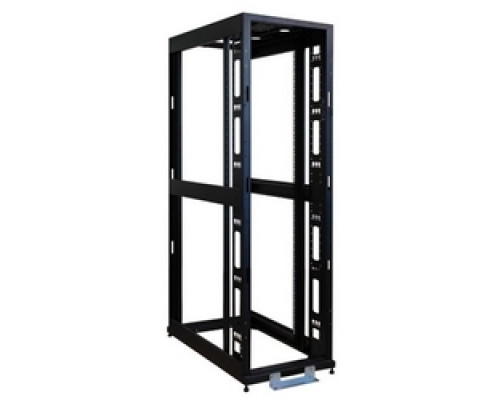

TRIPP LITE SR45UBEXPND SR45UBEXPND SmartRack 45U Standard-Depth 4-Post Premium Open Frame Rack

Features

• Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)
• Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view dept h index ensures consistent rail placement without requiring time-consuming measurements.
• Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are a rranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
• Mounting hardware of 50 pieces of M6 cage nuts and 50 pieces o f M6 screws included
• Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
• Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
• Weight ratings of 3000 lb stationary and 2250 lb roling.
• Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
• Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
• Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
• Open bottom for cable access.
• Included stabilizingbrackets are used for shipment and can be reattached at the bottom of the premium open frame rack on the inside or outside of the rack.
• Compatibility with all cable management accessories.

Specification Description

Product Group: Racks
