Spec Sheet
Request Quote
Features

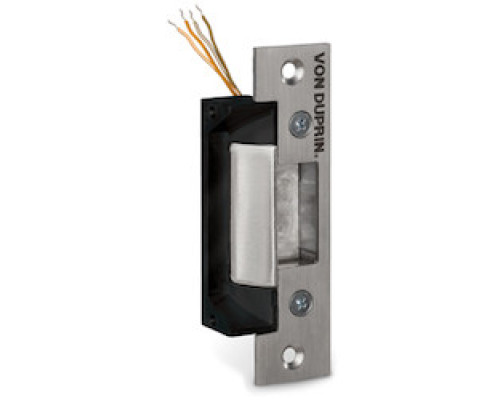

- TRAFFIC CONTROL,F/CYL,12/24V 5/8"-3/4" THROW
- Designed for cylindrical lock and deadlatch applications
- Suitable for interior doors with hollow metal or aluminum frames
- Optional latchbolt monitoring
- Versatility
- 4 in-field configurations
- Shallow 1-3/ackbox depth
- Field-selectable 12/24 VDC
- Non-handed, internal solenoid design
- Low current draw for PoE installations
- Field-selectable power failure mode without disassembly
- Strength and durability
- Heavy-duty stainless steel faceplate
- 1000 lbs. statrength
- 70 ft-lbs. dynamic strength
- 500,000 cycles endurance tested
- 5-year limited warranty
Technical
ANSI Grade
GRADE 1
Finish
US32D SATIN STAINLESS STEEL
Frame Material
ALUMINUM OR HOLLOW METAL
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 3/4 INCH THROW
Product Type
FOR USE WITH CYLINDRICAL LOCK
Sales Category
ELECTRIC STRIKE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
5 YEAR LIMITED
