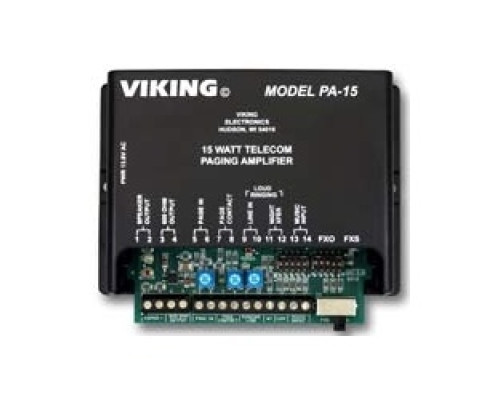

VIKING ELECTRONICS PA-15 15 Watt Paging Amp with Background Music and Loud Ringing

Features

• 15 Watts of paging power
• Drive up to (15) 8-ohm speakers
• 600 Ohm output to drive additional amplifiers
• Select: FXO (loop start), FXS (ring trip) or paging port (VOX relay) interface mode
• Independent volume controls for Paging, Ringing Tones and Backgund Music
• 36V DC talk battery for interfacing with FXO or unused phone system line input/trunk port
• Compatible with 24V to 48V FXS (ring trip) analog station operation
• 800 Hz pre-announce page tone (on/off)
• Provides "Night Bell" warble tone via conta closure or independent ringing analog circuit
• Choose one of four ringing sounds:
• - Electronic warble (traditional loud ringer)
• - Double gong (two identical "gong" tones)
• - Quadruple chime (four descending chime tones)
• - Door chime (ding-dong)
• Nighansfer switch input
• CPC detection for immediate disconnect
• Busy signal detect disconnect
• Adjustable silence time out disconnect
• Programmable VOX trigger sensitivity and time out
• 16 to 72 second (or off) default disconnect timer

Specification Description

Power: 120V AC/13.8V AC 1.25 A, UL Listed adapter provided
Amplifier: 15 watts - to power up to (15) 8-ohm speakers (cascadable to drive additional speakers)
Dimensions: 133 mm x 89 mm x 44 mm (5.25" x 3.5" x 1.75")
Shipping Weight: 1.36 kg (3 lbs)
Eironmental: 0C to 32C (32F to 90F) with 5% to 95% non-condensing humidity
Speakers: (1) 25AE paging horn provided - use additional 25AE, 30AE and 35AE speakers to complete the system (DOD# 498)
Sound Pressure Level: 115 dB, 1 k Hz @ 1m with (1) 25AE Paging Horn (included), each additional horn will drop the output level of all horns by 1 dB (see Page Power Chart, DOD# 895)
Talk Battery Output: 36V DC (loop current 36mA nominal)
Maximum Speaker Cable Length: 91 m (300 ft) 18 AWG
Connections: 14 cageclamp screw terminals
