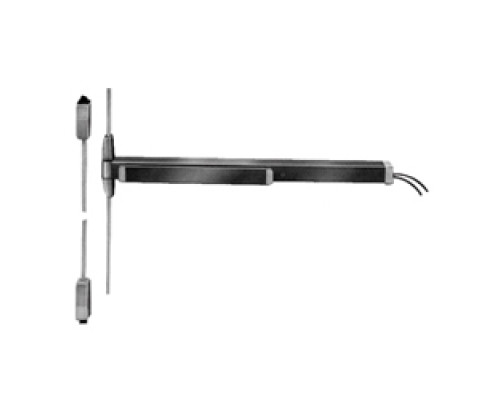

Model:
EL3327A-EO US3 36X84, CS192916SKU:
EL3327A-EO US3 36X84, CS192916Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features
- The EL Feature Allows for the Remote Unlatching of Exit Devices
- A Control Station Operator Can Flip a Switch to Retract the Latch Bolt and Immediately Change an Exit Door to Push-Pull Operation
- A Powerful, Continuous Duty Solenoid Retracts the Latch Bolt, Either for Momentary Unlatching, or for Extended Periods of Time
- The El Feature is an Alternative to Manual Dogging
- El Devices Are also Useful with Automatic Door Operators, and May be Applied to Fire-Rated Applications When Under the Control of an Automatic Fire Alarm System
Technical
ANSI Grade
ANSI GRADE 1
Finish
US 3 BRIGHT BRASS
Function
ELECTRIC LATCH RETRACTION
Input Voltage
24 VOLTS DC CONTINUOUS DUTY
Locking State
FAIL-SECURE (POWER TO UNLOCK)
Product Type
SURFACE VERTICAL ROD DEVICE
Rail Length - Inches
36 INCHES
Sales Category
ELECTRIC EXIT DEVICE, SVR
Stile Type
NARROW STILE APPLICATION
UL Listing Type
PANIC HARDWARE
