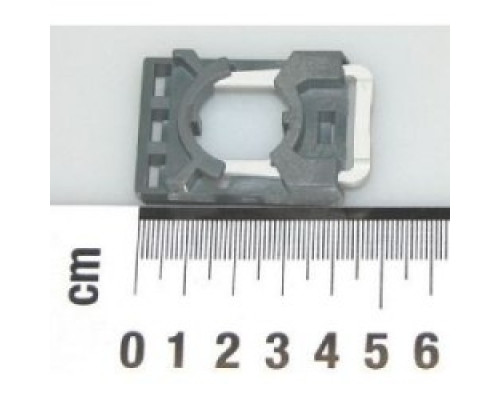

ABB MCBH-01 Modular contact block with holder for front mounting

Applications

For Non-Illuminated Operators. The ABB Pilot Device family is divided into two ranges; the Modular range that includes operators, holders, contact blocks and accessories that can be combined with high flexibility. The Compact range has all functions built-in into one single unit.

Features

• Includes: Holder
• Snap-on feature reduces installation time
• Bezels: Black plastic, chrome metal. Grey plastic available as an option
• Contact block holder features rear mounting with quick-release locking mechanism for high security
• Buttons available in several colors
• Engraved text caps available
• Custom-specific markings on request
• UL File# E57057
• CSA File# LR19700

Specification Description

Contact Configuration: 1 NC
Size: 048 m Width X 03 m Height X 036 m Depth
Frequency Rating: 50/60 Hz
Illumination: Non-Illuminated
Endurance: Mechanical: 10 Million Cycles
Enclosure: IP20
Amperage Rating: 6 A At 220/240 V AC, 8 A At 24/127 V AC, 1.At 125 V DC, 5 A At 24 V DC

Tech Info

RoHS Compliant
