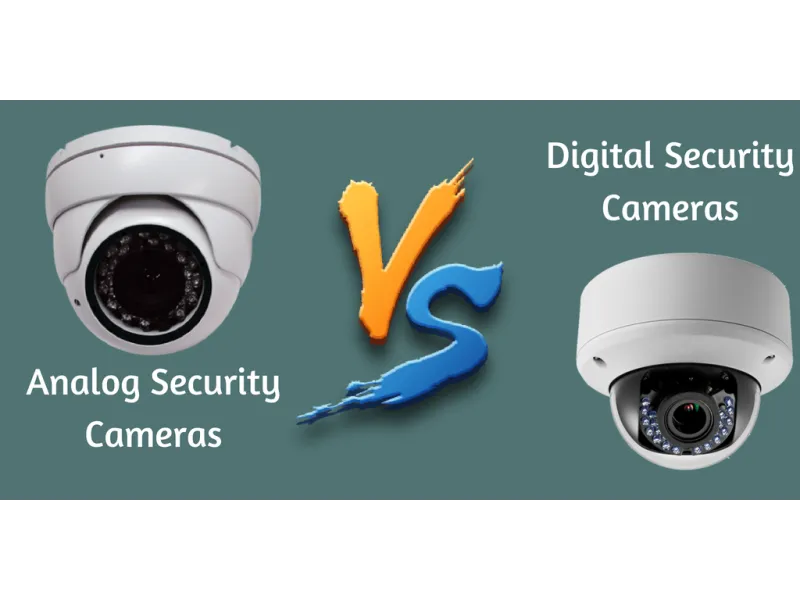

📹 Key Differences Between Analog and IP Security Cameras: Features, Options, and Recommendations

When choosing a security camera system, understanding the fundamental differences between analog and IP cameras is crucial. These differences impact not only the video signal transmission but also resolution, remote access, scalability, and overall technical solutions. Below, we break down the main aspects to help you decide which system fits your needs.

1️⃣ Video Signal Transmission

• Analog Cameras:
  Analog cameras transmit video signals using continuously varying waveforms (amplitude modulation). Modern analog systems include formats such as AHD, TVI, CVI, and traditional CVBS. Each transmits an analog signal that reflects changes in amplitude over time.

  • 👉 Tip: Analog cameras require a dedicated cable for each camera, whether using coaxial cables or twisted pair (with additional transmitter/receiver devices).

• IP Cameras:
  In contrast, IP cameras process and transmit video digitally using binary data—only two states (high/1 and low/0). As network devices, they have unique IP addresses and can share a single transmission line via network switches.

  • 👉 Pro: Digital transmission allows for flexible, scalable setups where multiple cameras can run over the same cable (e.g., via Ethernet).

2️⃣ Resolution and Image Quality

• Analog Cameras:
  Typically, modern analog (HD) systems support resolutions up to HD formats (around 720p to 1080p). For many residential or small business applications, a resolution of 1 to 2 megapixels is sufficient to capture key details.

  • ⚠️ Note: Although analog systems are improving, the maximum resolution tends to be capped by the format (e.g., 1080p for HD cameras).

• IP Cameras:
  IP cameras often support much higher resolutions, sometimes exceeding 5 megapixels. This improved resolution can provide better detail but also requires greater bandwidth and storage capacity.

  • 👉 Consideration: Higher resolution is beneficial when detailed identification is necessary, but for many everyday applications, a 2MP camera might strike the best balance.

3️⃣ Organization of Remote Access

• Analog Systems:
  Remote viewing with analog cameras typically involves a HD recorder (DVR) that converts the analog signal to a digital format. Although you can access DVR feeds over the internet using an Ethernet port, each camera is generally linked to its own channel.

  • 👉 Limitation: Each analog camera usually requires a separate cable and dedicated connection for remote access, making the system less flexible.

• IP Systems:
  IP cameras are designed for network connectivity, allowing direct remote access over the internet. They can connect directly to routers or via PoE switches, and many support wireless (WiFi) connections.

  • 👉 Advantage: This flexibility makes IP cameras easier to integrate with cloud services, enabling seamless remote monitoring without extra hardware like a DVR.

4️⃣ Impact on Technical Solutions

• Scalability and Flexibility:

  • IP Cameras:
    IP systems are highly scalable. You can integrate multiple cameras over a single network, adjust configurations remotely, and incorporate advanced features like two-way audio and video analytics. This makes them ideal for large or complex installations such as commercial or multi-site systems.
  • Analog Cameras:
    Analog systems tend to be more cost-effective but are less flexible in terms of integration. Each camera requires its own dedicated line, and upgrading the system can be more labor-intensive.

• Cost Considerations:

  • Analog:
    Typically, analog cameras are more budget-friendly, making them a popular choice for home or small-scale installations. They offer a good balance between quality and cost.
  • IP:
    While IP cameras offer enhanced features and scalability, they tend to be more expensive. For high-end or commercial applications, the additional cost may be justified by the advanced functionalities they provide.

• Network and Power Options:

  • PoE (Power over Ethernet):
    IP cameras can receive both power and data over a single Ethernet cable, simplifying installation and reducing clutter.
  • Wired vs. Wireless:
    IP systems support both wired and wireless configurations, whereas analog systems are typically wired. Wireless IP cameras offer flexibility in placement but must be managed carefully to ensure a stable connection.

🔍 Final Recommendations

• Choose Analog Cameras if:

  • You require a cost-effective solution for smaller areas.
  • Your focus is on basic surveillance without the need for advanced network features.
  • You have the infrastructure for dedicated cabling and individual connections.

• Opt for IP Cameras if:

  • You need high-resolution imaging and advanced functionalities (e.g., video analytics, remote configuration).
  • Scalability, integration with cloud services, and network-based management are priorities.
  • Your installation environment supports both wired and wireless configurations and benefits from simplified cabling via PoE.

In Summary:
The primary distinction between analog and IP cameras lies in how they form and transmit the video signal—analog uses a continuously varying signal, while IP relies on digital data transmission. This difference influences aspects like image quality, remote access, scalability, and overall system design. When selecting your system, consider your specific needs, budget, and installation environment to choose the best solution for effective, reliable surveillance.

Stay informed, and choose wisely to build a robust and future-proof security system! 🚀🔒📹
