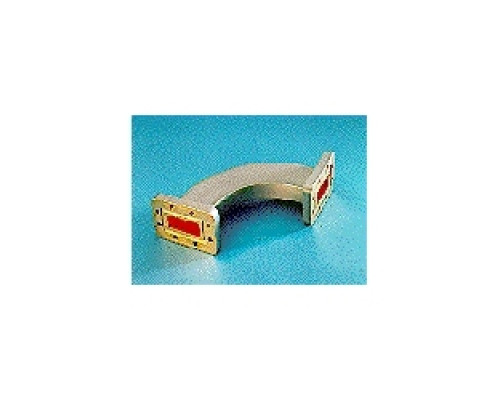

ANDREW H112MC10-2C102-SG 90 H Plane Swept Bend for WR112, 7.05-10.0 GHz, with interface types CPR112G and CPR112G, 102 mm x 102 mm, gray

Model:

H112MC10-2C102-SG, 467544

SKU:

H112MC10-2C102-SG, 467544

Availability:

In Stock

documents:

Spec Sheet

Request Quote

0 reviews

Specification Description

90 Degree H Plane Swept Bend
VSWR: 1.05
Length: 102 mm (4 Inch)
Length 2: 102 mm (4 Inch)
Operating Frequency Band: 7.05 - 10 GHz
Interface: CPR112G
Interface 2: CPR112G
Finish: Gray
Waveguide Size: WR112, WG15, R84

Technical

Coax Construction

COAXIAL

Conductor Material

BARE COPPER

Conductor Type

STRANDED CONDUCTOR

Dielectric Material

AIR

Flooded

NO NOT FLOODED OVER BRAID

Impedance

50 OHM NOMINAL IMPEDANCE

Jacket Material

NO JACKET

Outdoor

NO NOT OUTDOOR GRADE MATERIAL

Screen/Shield Type

UNSHIELDED
