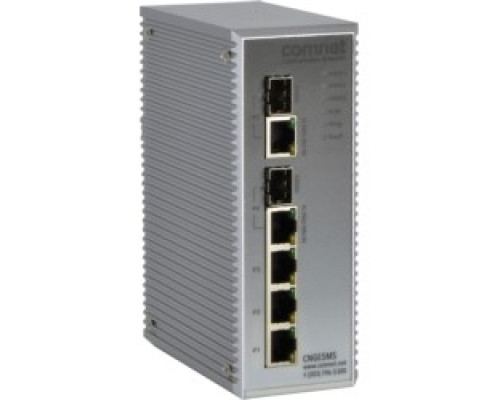

COMNET COMMUNICATION NETWORKS CNGE5MS Environmentally Hardened Managed Ethernet Switch With 3 10/100/1000Base-TX And 2 10/100/1000Base-TX/FX Combo Ports

Features

• 5 Gbps Ports: 3 10/100/1000Base-TX
• 2 10/100/1000Base-TX/100/1000Base-FX SFP Combo Ports
• Environmentally Hardened for use in unconditioned installations
• Certified for compliance with NEMA TS1/TS2 and CALTRANS environmental specifications
• Designed r and fully compliant with the EN50155 standard for railroad applications
• Fast Redundant Ethernet Ring: C-Ring (recovery time <20ms over 250 units of connection)
• Com-Ring supports proprietary ring technology in open architecture
• STP/RSTP/MSTP supporte
• Supports PTP Client (Precision Time Protocol) clock synchronization
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Port Trunking for bandwidth management
• Supports LLDP Protocol
• SNMP v1/v2c/v3 support for secured network managemeRMON for traffic monitoring
• Event notification through Syslog, Email, SNMP trap, and Relay Output
• Windows utility (eConsole) supports centralized management and configurable by Web-based Telnet, and Console (CLI) configurations
• DIN-Rail and wall mountng
• Lifetime Warranty
