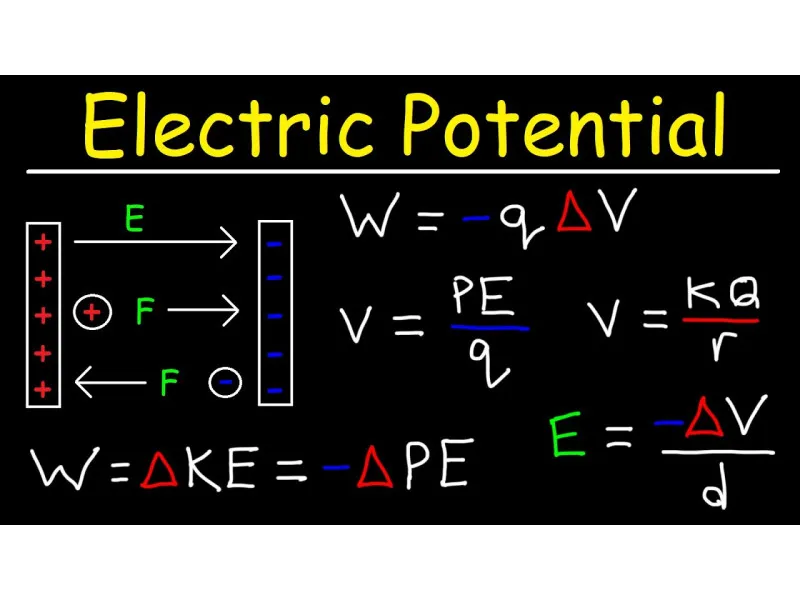

Electrical Potential

Electrical potential—often simply called potential—serves as a cornerstone concept in understanding how electric fields store and transfer energy. At safsale.com, we believe a clear explanation of electrical potential can illuminate a wide range of practical issues, from grounding and circuit design to measuring voltages in everyday electrical systems.

Defining Electrical Potential

In physics, electrical potential (φ) at a point in an electric field is the amount of work that would be done by the field to move a unit charge from one point to another. Because potential is location-dependent, we must specify two points:

1. Start Point (A) – The point where the charge originates.
2. End Point (B) – Where the charge is moved to.

When we consider the difference in potential between two points (A and B), we get:

$$\Delta \phi = \phi_A - \phi_B$$

In practical terms, this difference is equivalent to voltage (U):

$$U = \phi_A - \phi_B$$

Perspectives on Electrical Potential

1. Moving a Charge to Infinity

From a theoretical physics viewpoint, potential at a point $A$ is often measured relative to a point infinitely far away from the field (i.e., $\phi_0$). While this is conceptually useful for advanced calculations, it’s less crucial for everyday electrical applications in the USA or elsewhere.

2. Between Two Practical Points

A far more common scenario is comparing potential between two specific points—like two terminals on a battery or two nodes in a circuit. The difference in potential between these points is exactly what we call voltage (U). This perspective makes the concept readily applicable to real-world devices and electrical systems.

3. Ground Reference (Zero Potential)

Engineers and electricians often choose a point in a circuit or system and designate it as having zero potential—commonly referred to as “ground” or “earth.” This is crucial for:

• Measurement Consistency: Every other point can then be measured relative to this zero reference.
• Safety and Standardization: In many building codes across the USA, the ground provides a known reference for stabilizing voltage levels and protecting equipment.

Thus, the potential at a node “A” might be phrased as:

$$U_{A} = \phi_A - \phi_{\text{ground}}$$

If ground is defined at 0 V, $U_{A} = \phi_A$. This approach simplifies our discussions of “phase” versus “neutral” in AC power systems or the “positive” versus “negative” in DC circuits.

Practical Applications of Electrical Potential

1. Voltage Measurement:
   Any digital multimeter uses the principle of potential difference to display voltage. You connect the meter leads between two points (A and B), and the meter displays $\phi_A - \phi_B$.

2. Grounding Systems:
   In American household power, “ground” is set to zero potential for safety. Exposed metal parts of appliances are often connected to ground, preventing dangerous voltage build-up if a fault occurs.

3. Voltage Drops in Circuits:
   When current flows through a resistor or load, it “drops” in electrical potential. Understanding this helps you diagnose why a device that’s too far from a power source or uses undersized wiring may experience dim lights or insufficient power.

4. Phase and Neutral in AC Grids:
   In the USA, residential AC supplies often have one or more “hot” wires at potentials of 120 V (or sometimes 240 V) relative to a neutral or ground reference at 0 V. The difference in potential between “hot” and “neutral” is what powers most household devices.

5. High-Voltage Transmission:
   For efficient power transmission, electric utilities step up the potential to thousands or hundreds of thousands of volts, reducing current and thus minimizing losses. Distribution transformers then lower the potential back down for consumer use.

Key Takeaways

• Definition:
  Electrical potential is the energy characteristic of an electric field—indicating how much work can be done by moving a unit charge from one point to another.

• Voltage vs. Potential:
  The difference in potential between two points is called voltage (U). Voltage is what you actually measure when diagnosing a circuit or checking power outlets.

• Referencing to Ground:
  Setting one point to “0 V” simplifies measurement and safety considerations, turning potential differences into straightforward voltage readings.
