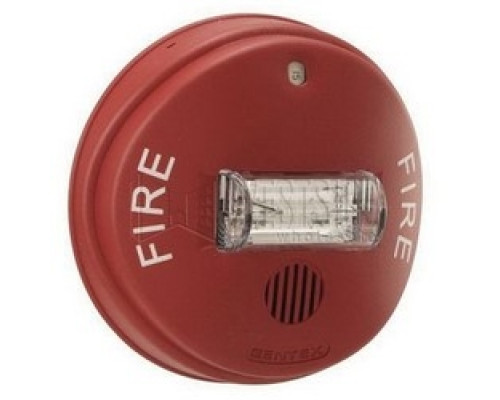

GENTEX CORP 904-1209-002 GCC24CR GCC Commander4 Series Selectable Horn/Strobe, 24 Volt DC, 6 Inch Dia x 2.6 Inch Depth, Selectable Candela Evacuation Signal, Ceiling Mount

Features

• Tamperproof field selectable candela options of 15, 30, 75, 95,115 And 150
• Super-Slide bracket - ease of supervision testing
• Checkmate- instant voltage verification
• Synchronize strobe and/or horn with Gentex AVSM control module
• Prewire entire system,nstall mounting bracket, then install signals
• Input terminals 12 to 18 AWG
• Switch Selection for High or Low dBA, Switch Selection for 2400 Hz or mechanical tone
• Switch selection for continuous or temporal 3
• Tamperproof re-entrant grill, surface mountith the GCSB
• Silence audible while visual appliance will remain flashing
• Faceplate available in red

Tech Info

ANSI/UL 464 and ANSI/UL 1971 Listed, FM Approved, CSFM: 7135-0569:122 (GCC), NFPA 72, IBC/IFC/IRC, ISO 9001:2008
