Model:
5200C-12/24D-630 10590404, CS507383SKU:
5200C-12/24D-630 10590404, CS507383Availability:
In Stockdocuments:
Spec Sheet
Request Quote
Features

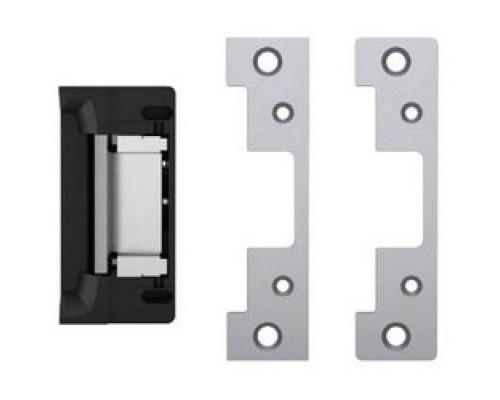

- The 5200 Series Electric Strikes Feature an In-Frame Horizontal Adjustable Design to Simplify the Installation Process
- This Feature Allows the Installer to Easily Adjust the Electric Strike Opening to Accommodate the Horizontal Position of the Latchbol t After the Strike Has Been Installed
- Tamper Resistant
Tech Info
UL 1034/294, ANSI/BHMA A156.31
Technical
ANSI Grade
GRADE 1
Finish
US32D SATIN STAINLESS STEEL
Frame Material
WOOD OR HOLLOW METAL
Locking State
SELECTABLE FS OR FSE
Max Latch Length - Inch
MAXIMUM 3/4 INCH THROW
Mounting
FOR CENTERLINE INSTALLATIONS
Product Type
CYLINDRICAL OR NARROW STILE MORTISE LATCH
Pull Strength - Lbs
1000 - 1500 LBS.
Sales Category
ELECTRIC STRIKE
UL
UL BURGLARY RESISTANCE
Voltage and Duty CONT
SELECTABLE 12/24V DC
Voltage and Duty INT
SELECTABLE 12/24V AC/DC INT
Warranty
5 YEAR LIMITED
