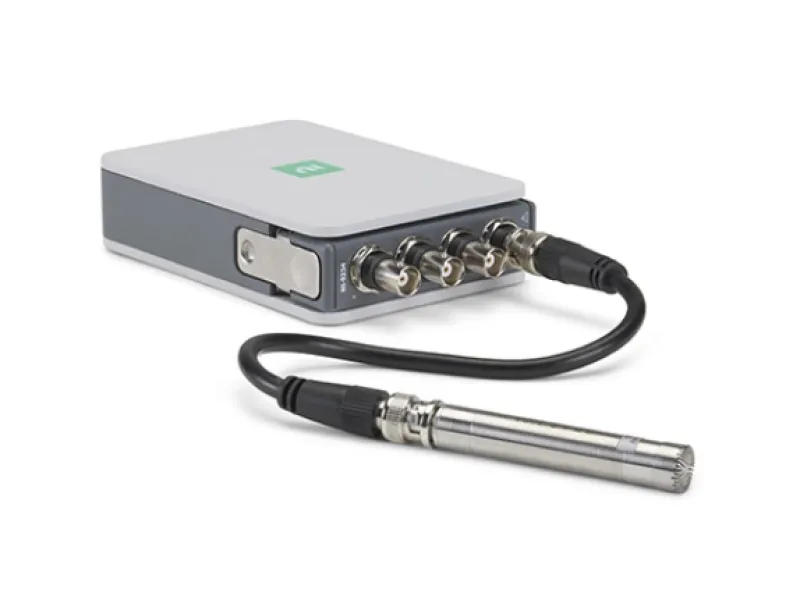

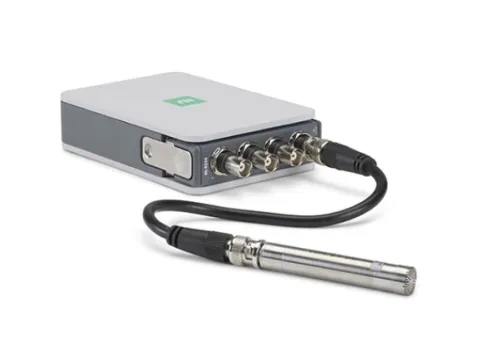

A sensor is an electronic or electromechanical device designed to convert a specific physical input into a usable electrical signal. Whether monitoring temperature, detecting motion, or measuring fluid levels, sensors play an essential role in modern automation, safety systems, and process control. Below, we’ll break down how sensors function, the range of sensor types available, and how they interface with control and monitoring equipment.
1. Sensor Definition and Operation
1.1 Basic Concept
From a functional standpoint, you can imagine a sensor as a “black box” with some physical stimulus on its input and an electrical signal on its output. The “black box” approach emphasizes two main considerations:
- What physical parameter is measured?
(e.g., temperature, pressure, presence of an object) - How is the output signal formed?
(e.g., a switch contact, analog voltage, or digital data)
1.2 Contact vs. Non-Contact Sensors
Sensors can be divided broadly based on how they detect phenomena:
- Contact Sensors:
These require direct mechanical contact with the object or medium being measured. Examples include limit switches, mechanical flow meters, and pressure sensors that respond directly to fluid or gas pressure. - Non-Contact Sensors:
Employ one of several detection principles—magnetic, optical, microwave, capacitive, inductive, or ultrasonic—to measure parameters from a distance. For instance, inductive sensors only detect metal objects, while optical sensors can monitor an object’s presence or absence over larger distances.
2. Typical Applications
Sensors are crucial in many fields, enabling systems to:
- Detect the presence of objects in manufacturing lines (proximity sensing).
- Measure position, velocity, or movement, ensuring precise motion control.
- Monitor environmental conditions, such as air quality, temperature, or humidity (e.g., HVAC systems).
- Trigger alarms in safety or security setups, like smoke detectors or door contacts.
For instance, smoke sensors in fire detection systems can sense smoke particulates early, while level sensors ensure tanks or silos don’t overflow or run dry. In these scenarios, the sensor’s design and mounting arrangement must match the environment’s operating conditions and precision needs.
3. Output Signal Types
Beyond what parameter a sensor detects, the output signal classification is often just as pivotal:
3.1 Threshold (On/Off)
These “two-state” devices produce a high or low signal, effectively operating as a switch:
- Dry Contacts (Relay Outputs): A mechanical relay that opens or closes a circuit.
- Solid-State Switches (Transistors, Triacs, Thyristors): Semiconductor components toggling an output state.
Key specs typically include the maximum voltage/current the contact or transistor can switch.
3.2 Analog Signals
Analog-output sensors produce a continuously varying signal (often a voltage) proportional to the measured variable. Examples include:
- Thermistor or RTD circuits in temperature sensors.
- Pressure sensors yielding 0–10 V or 4–20 mA current loops.
While analog signals can convey fine-grained data, they demand specialized circuitry or modules for reading and converting those values (e.g., ADCs—Analog-to-Digital Converters).
3.3 Digital Signals
Digital sensors transmit data in a numeric format—commonly via communication protocols such as:
- 1-Wire or I²C: Found in certain temperature sensors or small devices.
- SPI or Serial Data Streams: Used for more complex or higher-speed measurements.
Digital outputs can embed additional capabilities like sensor IDs, calibration info, or advanced diagnostics. However, a control system must support the same protocol to ensure seamless integration.
4. Practical Considerations and Selection
4.1 Environmental Suitability
When choosing a sensor, note:
- Ingress Protection Rating (IP): Check its dust and moisture tolerance.
- Temperature Range: Ensure the device can withstand operational extremes.
- Material Compatibility: Some chemicals or environments may degrade sensor housings or detection elements.
4.2 Operating Distance and Resolution
Each detection principle imposes inherent constraints:
- Long-Range Sensing: Optical, ultrasonic, or microwave sensors typically can detect objects at distances from inches to many feet.
- Short-Range Sensing: Inductive and capacitive sensors excel at near-field detection.
- Resolution: Minimum object size or smallest change a sensor can reliably measure.
4.3 Integration and Compatibility
Combining sensors within automation or safety systems requires verifying:
- Compatible Power Supply/Signal Levels: e.g., 5 VDC, 12–24 VDC, or 4–20 mA loops.
- Signal Conditioning: Some systems need filtered, amplified, or converted signals.
- Controller Interfaces: For instance, PLCs (Programmable Logic Controllers) might have digital or analog input modules sized to sensor outputs.
Conclusion
A sensor serves as the critical link between a physical variable and an electrical control or monitoring system, translating temperature, movement, or other stimuli into actionable data. By classifying sensors both by what they measure and by how they produce output signals (threshold, analog, or digital), engineers can select the optimal device for their application.
Whether employed in automated manufacturing lines, security setups, or environmental monitoring, choosing the right sensor ensures stability, accuracy, and efficiency. For specialized advice or deeper insights into sensor integration, safsale.com provides expertise on optimizing sensor-driven processes—from hardware selection to system-level design.
