Spec Sheet
$2,614.41
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

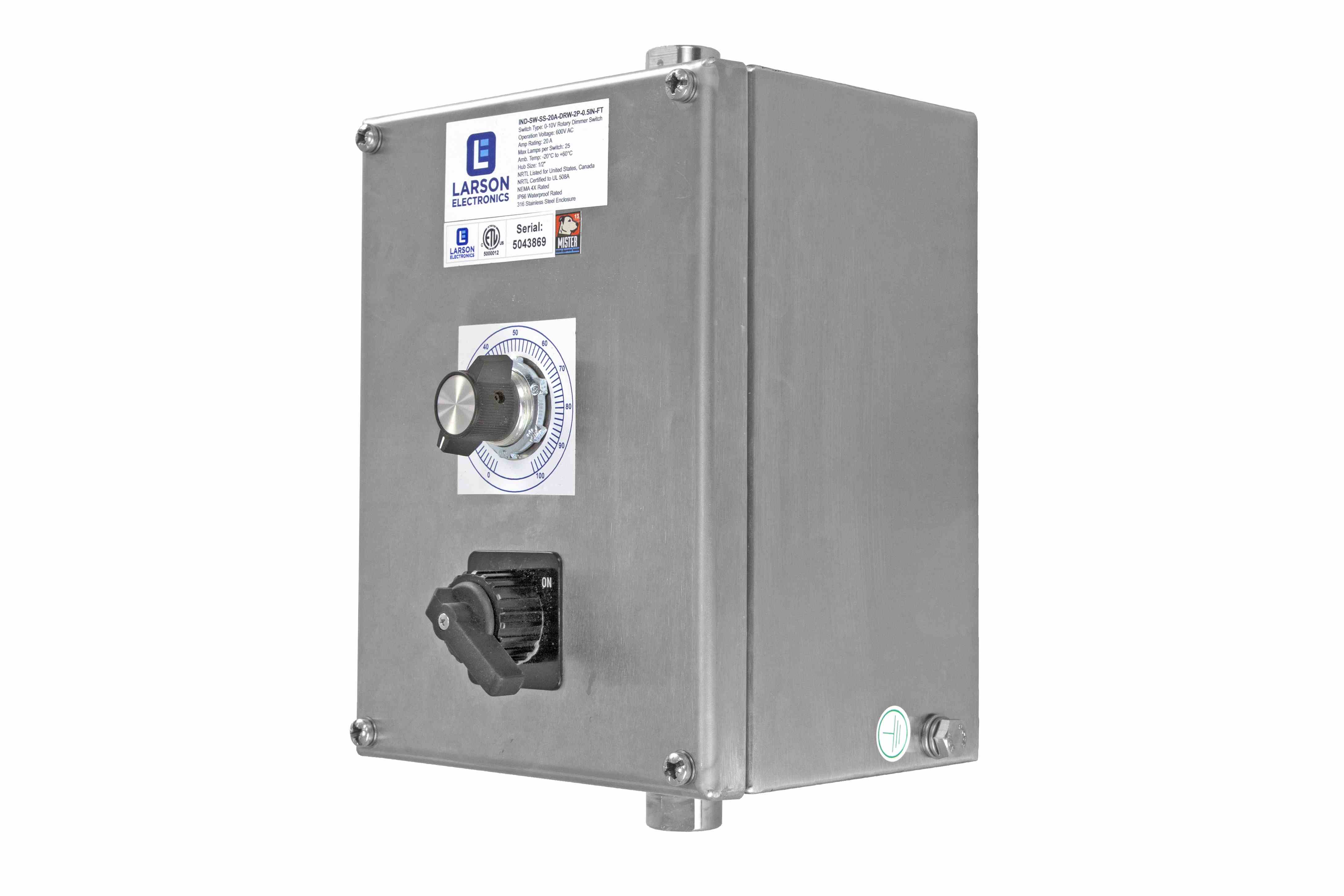

0-10V Rotary Dimmer w/ On/Off Switch - Double Pole Single Throw - 316 Stainless Steel - NEMA 4X is a product intended for professional commercial and industrial applications.
Key Specifications
- Operation Voltage: The IND-SW-SS-20A-DRW-2P operates on 600 V AC. This operation voltage covers 120V, 220V, 240V, 277V, 347V, 480V, and 600V.
- Note on Dimming Voltage/Amperage: The voltage range is 0-10V, with 0V being completely off and 10V being full power. The max resistance is calculated for up to 25 devices being controlled by this unit. This dimmer is NOT compatible with incandescent lamps or screw-in compact fluorescent lamps. This unit IS compatible with LED, HID, fluorescent, compact fluorescent, induction, and any type of lamp that the power supply or ballast is 0-10V capable and has 0-10V control wires.
- Hubs: Operators can choose between two hub sizes of either 1/2" or 3/4". The available hub configurations are as follows: dead end, feed through, bottom U-feed through, and top U-feed through. The U-feed options feature the input and output on the same side allowing wires to enter and exit on the same side of the switch. All predrilled hubs are CNC cut and include factory installed conduit hubs and lock nuts.
- Mounting: External mounting lugs provide simple and secure mounting of the unit to walls and flat surfaces.
- Suggested Applications: Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
This item is grouped with Explosion Proof Switches, Junction Boxes, and Device Boxes.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Hubs
Operators can choose between two hub sizes of either 1/2" or 3/4". The available hub configurations are as follows: dead end, feed through, bottom U-feed through, and top U-feed through. The U-feed options feature the input and output on the same side allowing wires to enter and exit on the same side of the switch. All predrilled hubs are CNC cut and include factory installed conduit hubs and lock nuts.
Mounting
External mounting lugs provide simple and secure mounting of the unit to walls and flat surfaces.
Note on Dimming Voltage/Amperage
The voltage range is 0-10V, with 0V being completely off and 10V being full power. The max resistance is calculated for up to 25 devices being controlled by this unit. This dimmer is NOT compatible with incandescent lamps or screw-in compact fluorescent lamps. This unit IS compatible with LED, HID, fluorescent, compact fluorescent, induction, and any type of lamp that the power supply or ballast is 0-10V capable and has 0-10V control wires.
Operation Voltage
The IND-SW-SS-20A-DRW-2P operates on 600 V AC. This operation voltage covers 120V, 220V, 240V, 277V, 347V, 480V, and 600V.
Suggested Applications
Manufacturing, Industrial, Warehouse, Lighting, Lighting, Wet areas or Locations Where Combustible Dust is Present.
