Model:
VFD-1P-208V-1.5HP-6.3A-DCMSKU:
VFD-1P-208V-1.5HP-6.3A-DCMAvailability:
In StockDocuments:
Spec Sheet
$1,055.01
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

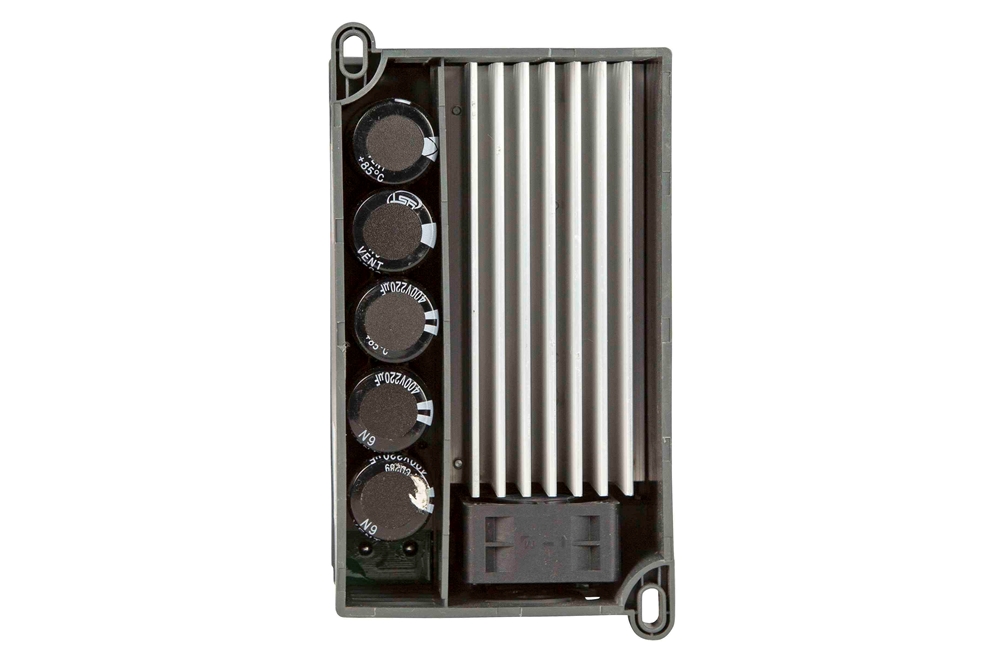

1.5 HP Variable Frequency Device - 208V AC 1PH Input/Output - 6.3 Amps is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Variable Frequency Device
- Dimensions: 5.59" x 3.34" x 4.44"
- Weight: 4.4 lbs
- Input/Output Voltage: 208V AC 1PH
- Output Current: 6.3 Amps
- Operating Frequency: 0 to 3000 Hz
- HP: 1.5
- Efficiency: 90%
- Power Factor: 0.95
- Starting Torque: 1 Hz/150%
This item is grouped with 208V 220V 230V 240V AC Variable Frequency Drives (VFDs).
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Analog Input/Output
2 Input (0~10V or 0/4~20mA), 2 Output (0/4~20mA or 0~10V)
Carrier Frequency
1.0-16kHz, auto adjusted according to temperature and load
Color
Gray
Communication Terminal
RS485 communication interface, support MODBUS-RTU communication protocol
Dimensions
5.59" x 3.34" x 4.44"
Efficiency
90%
Frequency Accuracy
Dial setting: 0.01Hz, Analog Setting: Max frequency X 0.05%
HP
1.5
Input/Output Voltage
208V AC 1PH
Inputs
7 on-off programmable digital, 1 high-speed pulse, 2 programmable analog
Materials
-
Max Operating Humidity
90% (non condensing)
Mounting
Surface
Operating Frequency
0 to 3000 Hz
Operating Temp
–10°C to +40°C
Output Current
6.3 Amps
Outputs
1 programmable open collector, 1 analog (open collector or high-speed pulse), 2 relay, 2 analog
Overload
150% @ 60s, 180% @ 10s, 200% @ 3s
Starting Torque
1 Hz/150%
Torque Boost
Automatic torque boost; manually torque boost: 0.1%~30.0%
Unit Type
Variable Frequency Device
V/f curve
Linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Weight
4.4 lbs
Technical
Power Factor
0.95
