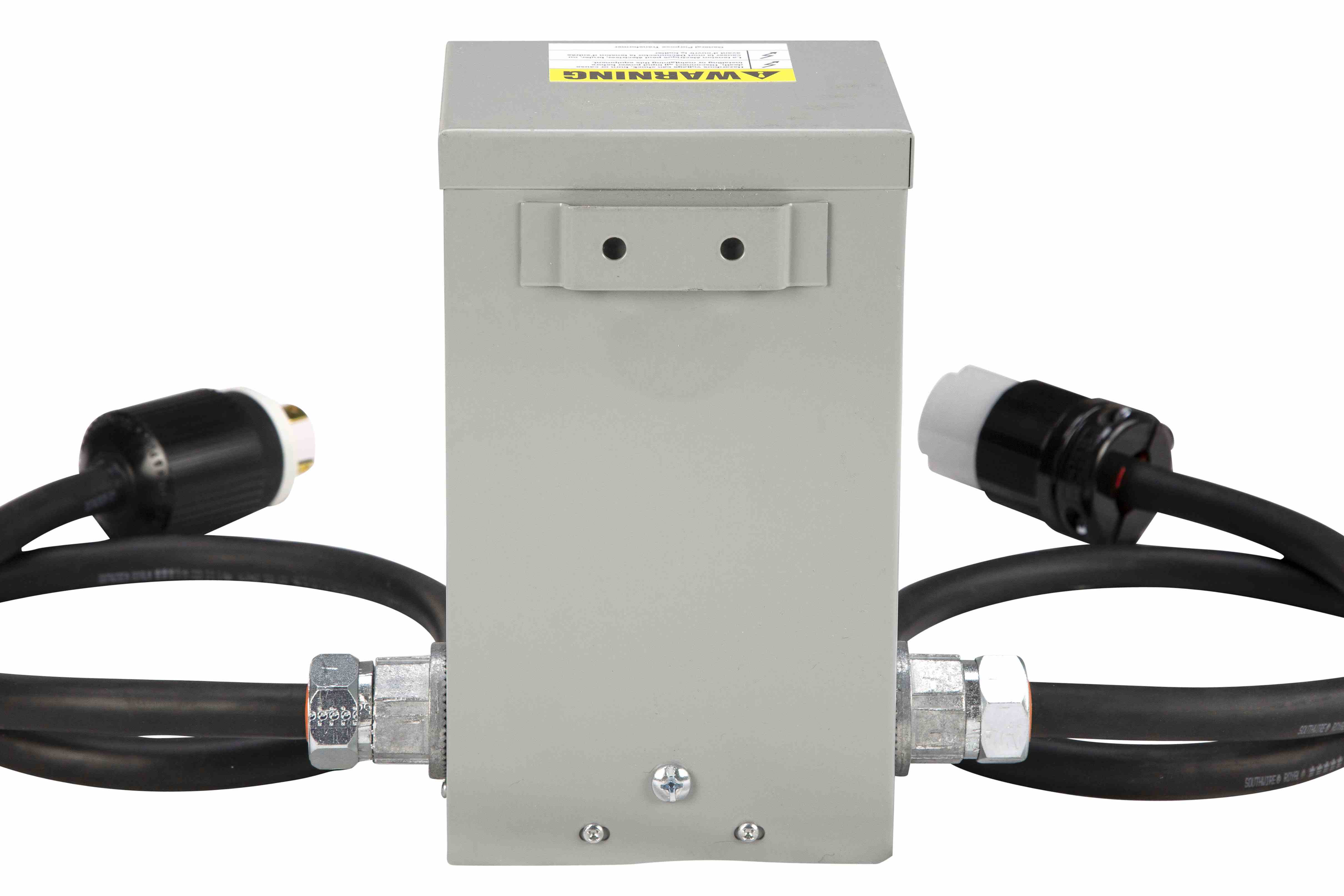

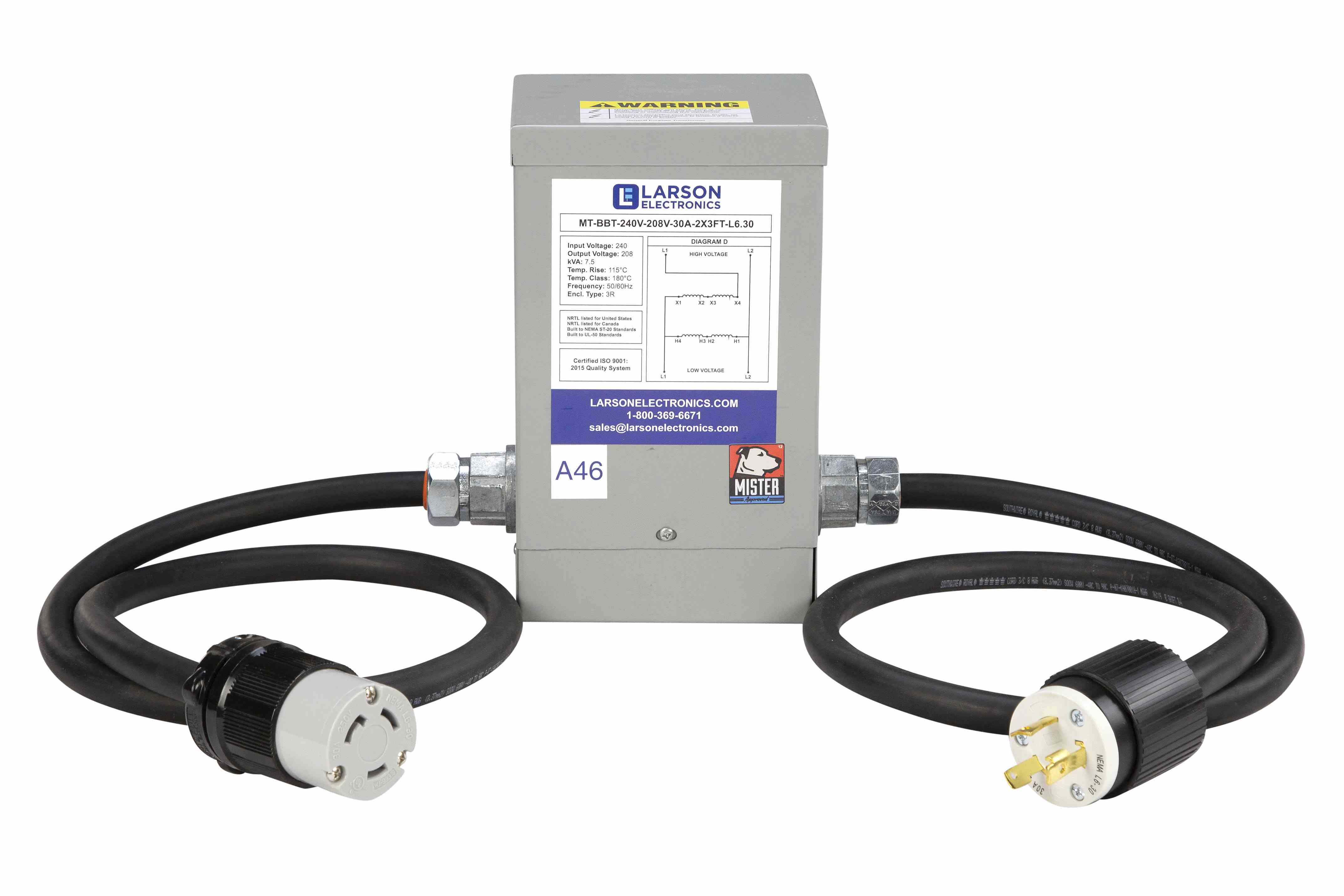

1-Phase Buck/Boost Step-Down Prewired Transformer - 215V Primary - 208V Secondary - 30 Amps - 50/60Hz - Taps

Product Overview

1-Phase Buck/Boost Step-Down Prewired Transformer - 215V Primary - 208V Secondary - 30 Amps - 50/60Hz - Taps is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: The MPD-MT-BBT-215V-208V-30A-TP-2X2FT-L6.30 buck and boost transformer is a single phase unit with a 7.32 kVA rating and a primary voltage of 215 V AC using a maximum of 34.04 amps on the primary side. This step-down transformer has a secondary voltage of 208 V AC and provides up to 30 amps available on the secondary side. The transformer offers +/- 10% taps on the secondary side for 186V and 230V power. Featuring robust construction, this unit's cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
• Benefits: The MPD-MT-BBT-215V-208V-30A-TP-2X2FT-L6.30 buck/boost step-down transformer offers many benefits to the consumer. Buck/boost transformers pass the majority of the load voltage directly through the transformer, only transforming a small percentage of the load. Due to this technology, a smaller and quieter step-down transformer is manufactured and uses less materials. This provides owners with significant energy savings as well as offering environmental benefits.
• Mounting: Integrated wall mounting brackets make installation fast and easy. Because of the smaller overall footprint, heavy machinery is rarely needed for mounting and installation.
• Wiring/Installation: The MPD-MT-BBT-215V-208V-30A-TP-2X2FT-L6.30 is equipped with 2` 8/3 SOOW whips on both the primary and secondary sides. The primary side whip is equipped with a 30 amp 250V 3 prong twistlock plug and the secondary side whip is equipped with a 30 amp 250V 3 prong receptacle. This transformer makes installation simple. Operators connect them to the corresponding current. For example, the 208V whip gets connected to 208V current.
• Applications: Air conditioners, lighting systems, heating elements, motor applications and other applications that that require the ability to power loads that differ from the available line voltage.
• Limitations: While there are many benefits to a buck/boost transformer, there are some limitations to consider. This transformer will only transformer voltage, it will not convert phases, has no circuit isolation, and does not create a neutral for applications where a neutral is not already present. If any of these limitations apply to you, you will need a standard transformer. Please see below link for our standard line of

This item is grouped with 65-75 KVA Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
