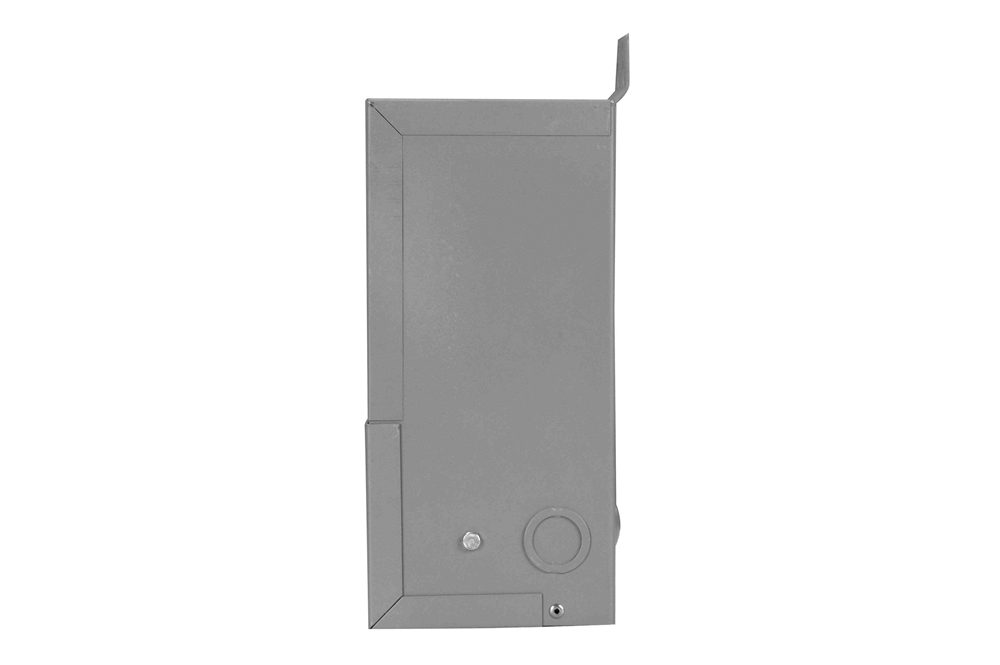

1 Phase Buck & Boost Step-Down Transformer - 277V Primary - 240V Secondary - 50 Amps - 50/60Hz

Product Overview

1 Phase Buck & Boost Step-Down Transformer - 277V Primary - 240V Secondary - 50 Amps - 50/60Hz is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: The MT-BBT-277V-240V-50A buck and boost transformer is a single phase unit with a 12 kVA rating and a primary voltage of 277 V using a maximum of 41.7 amps on the primary side. This step-down transformer has a secondary voltage of 240 V and provides up to 50 amps available on the secondary side. Featuring robust construction, this unit's cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
• Benefits: The MT-BBT-277V-240V-50A buck/boost step-down transformer offers many benefits to the consumer. Buck/boost transformers pass the majority of the load voltage
• Mounting: Integrated wall mounting brackets make installation fast and easy. Because of the smaller overall footprint, heavy machinery is rarely needed for mounting and installation.
• Installation: Installation is simple. Connect the primary leads and secondary leads to the step-down transformer per the provided wiring diagram. Knockout hubs on either side and the bottom of the transformer allow for easy line-in and line-out wiring. The front access cover provides convenient.
• Applications: Air conditioners, lighting systems, heating elements, motor applications and other applications that that require the ability to power loads that differ from the available line voltage.
• Limitations: While there are many benefits to a buck/boost transformer, there are some limitations to consider. This transformer will only transformer voltage, it will not convert phases, it will not create even legs between line 1 and line 2 (L1 and L2 WILL be UNEVEN), has no circuit isolation, and does not create a neutral for applications where a neutral is not already present. If any of these limitations apply to
• Note on Voltage Generation: Buck/boost transformers, like this unit, do NOT generate even legs of voltage on the secondary side. The generate voltage legs will always be unbalanced. This is acceptable for some situations, but other situations call for even legs on the secondary side. This simply cannot be achieved with a buck/boost transformer.
• Note on Phases: This buck/boost transformer is a single phase step-down transformer. For three
• phase transformers, click on the following links: Three

This item is grouped with 9-15 KVA Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
