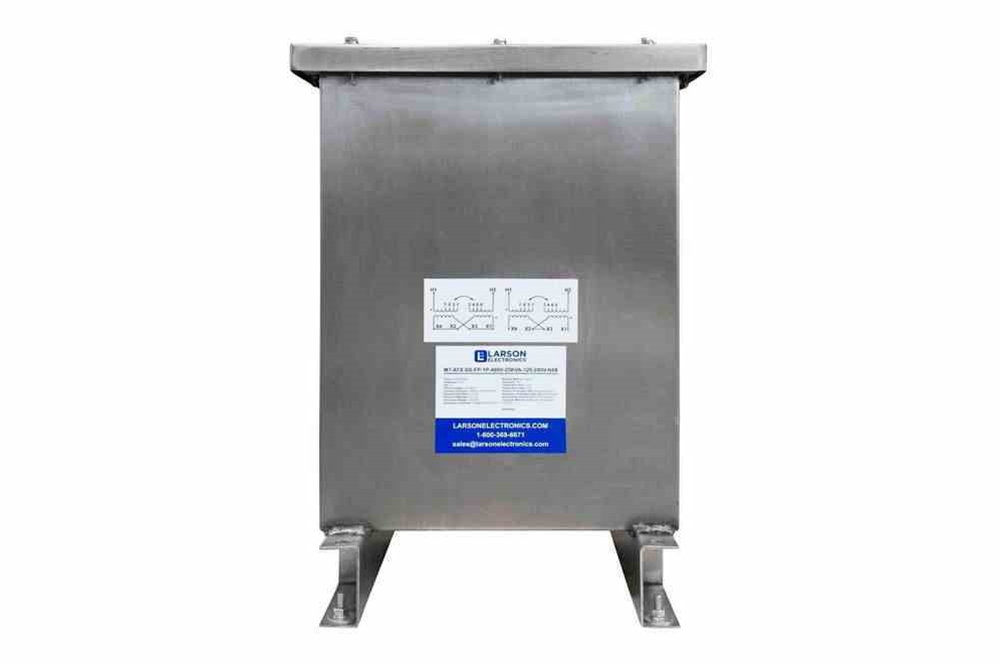

10 kVA Isolation Transformer - 400V Delta Primary - 230Y/133 Wye-N Secondary - NEMA 4X - Fully Potted/Encapsulated - 304 Stainless Steel Enclosure

Product Overview

10 kVA Isolation Transformer - 400V Delta Primary - 230Y/133 Wye-N Secondary - NEMA 4X - Fully Potted/Encapsulated - 304 Stainless Steel Enclosure is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: With a transformer rating of 10 kVA, the MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 isolation transformer is a three phase unit with a primary voltage of 400 V Delta that can operate at +/- 5% of the rated input voltage. It also provides a secondary voltage of 230Y/133 V Wye-N. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
• Safety: The MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 is a fully potted isolation transformer which means that it provides operators with an increased level of protection against electric shock. An isolation transformer can also suppress electrical noise in sensitive devices and transfer power between two circuits which must not be connected. The MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 achieves these safety features by seperating or "isolating" the powered device from the power source and insulation between the primary and secondary power sources.
• Humidity: For operation purposes, the MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 has an acceptable humidity range of 0 to 100%. This includes condensation, rain from 0 to 10 cm/hr (4in/hr), radial ice from 0 to 2.5 cm (1 inch), 15.0 cm (5.9 inches) of snow and direct exposure to sunlight. For storage purposes, this unit has an acceptable humidity range of 0 - 100% including condensation.
• Storage Humidity: The MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 will meet the requirements of the specification after being subjected to a store humidity range of 0-100%, including condensation, while in its factory shipping container.
• Short Circuit Strength: The MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 is capable of withstanding the following without injury: stresses caused by short circuits on the secondary side with rated voltage applied to the transformer as long as the short circuit duration does not exceed time limits specified by NEMA.
• Seismic: The MT-ISX-SS-FP-3P-400D-10KVA-230Y.133-GD1-4509-01 is designed to withstand seismic forces produced by an earthquake of Intensity VIII on the modified Mercalli Scale.
• Environmental Exposure: This fully potted transformer will continue to meet all specified ratings when exposed to salt fog and to sunlight or solar radiation of 1110 W/M2.
• Applications: Power supplies for sensitive equipment such as computers, medical devices, or laboratory instruments.

This item is grouped with 7.5 KVA and Below Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
