Model:
EPL-HB-100LED-RT-DLC-140DB-JB2-40C-BCESKU:
EPL-HB-100LED-RT-DLC-140DB-JB2-40C-BCEAvailability:
In StockDocuments:
Spec Sheet
$2,494.17
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

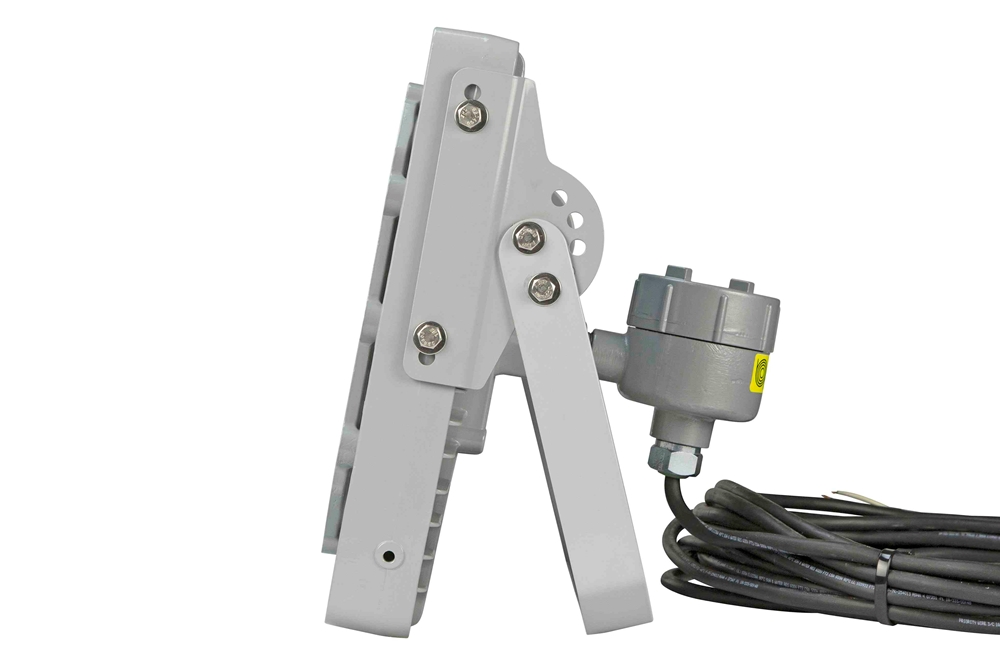

100W Explosion Proof High Bay LED Light Fixture - 140° - C1D1 - Paint Spray Booth Approved is a product intended for professional commercial and industrial applications.
Key Specifications
- Listing: United States - Canada
- Lamp Type: LED
- Dimensions: 14"H x 16"W 5"D
- Weight: 32 lbs
- Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC
- Total Watts: 100W
- Total Lumens: 14,000
- Luminous Efficiency: 140
- Lamp Life: 60,000+ Hours
- Color Temp: 5000K
This item is grouped with Explosion Proof Lighting.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Operating Temp Range
-50°C to +65°C
Beam Angle
140°
BUG Rating
B4-U1-G0 (60° Optics); B4-U1-G1 (125° Optics); B3-U1-G2 (140° Optics)
CIE Type
Direct
Cutoff Classification
Cutoff
Dimensions
14"H x 16"W 5"D
Gasket Material
Silicone
Housing Material
Copper Free Cast Aluminum
IES Classification
Type I (60° Optics); Type VS (125° Optics); Type VS (140° Optics)
Input Current
1.8A Max
Lighting Configuration
Flood Pattern
Listing
United States - Canada
Longitudinal Classification
Very Short (60° Optics); Very Short (125° Optics); Short (140° Optics)
Luminous Efficiency
140
Mounting
3/4" Pendant & Swivel Mount - Both Ship w/ Fixture
NEMA Type (Lighting)
6H x 6V (60° Optics); 6H x 6V (125° Optics); 6H x 7V (140° Optics)
Operating Temp Rating
T5
Output Current
2.1A
Output Voltage
54V Max
Power Efficiency
>95%
Total Lumens
14,000
Total Watts
100W
Voltage
100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC
Weight
32 lbs
Wiring Hub
3/4" NPT
Technical
Color Rendering Index
>75 CRI
Color Temp
5000K
Input Voltage
100-277 Volts AC
Lamp Life
60,000+ Hours
Wiring
40` 16/3 SOOW w/ Explosion Proof Cord Blunt Cut Ends
Lamp Type
LED
Power Factor
0.992
Lens Material
Hardened Borosilicate Glass
