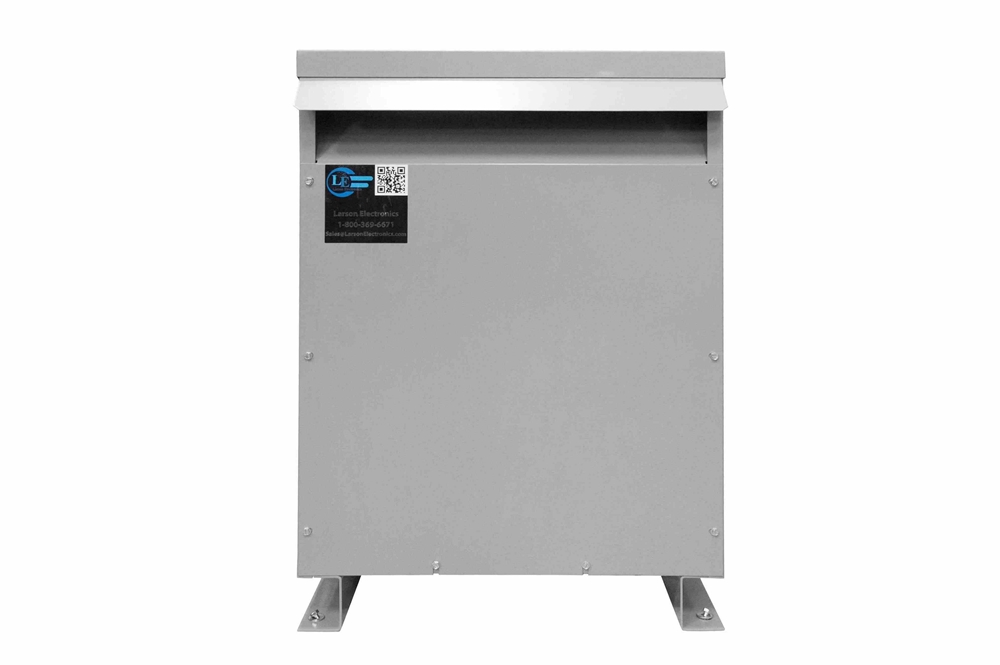

104 kVA Isolation Transformer - 690V Delta Primary Voltage - 480V Delta Secondary - NEMA 3R - w/ Monitoring and Communications Ports

Product Overview

104 kVA Isolation Transformer - 690V Delta Primary Voltage - 480V Delta Secondary - NEMA 3R - w/ Monitoring and Communications Ports is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: With a transformer rating of 104 kVA, the MT-ISX-3P-690D-104KVA-480D-N3R-M2 isolation transformer is a three phase unit with a primary voltage of 690 V Delta. It also provides a secondary voltage of 480 V Delta. Featuring robust construction, this unit's cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
• Benefits: The MT-ISX-3P-690D-104KVA-480D-N3R-M2 isolation transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material helps to improve performance. The close tolerances used during manufacturing also eliminate burrs, which hinder performance. Each core is specially coated to prevent the ingress of moisture and is electrically balanced to minimize axial forces during short circuit situations.
• Safety: The MT-ISX-3P-690D-104KVA-480D-N3R-M2 is an isolation transformer which means that it provides operators with an increased level of protection against electric shock. An isolation transformer can also suppress electrical noise in sensitive devices and transfer power between two circuits which must not be connected. The MT-ISX-3P-690D-104KVA-480D-N3R-M2 achieves these safety features by separating or "isolating" the powered device from the power source and insulation between the primary and secondary power sources.
• Applications: General purposes.

This item is grouped with 100-112.5 KVA Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
