Model:
MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2SKU:
MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2Availability:
In StockDocuments:
Spec Sheet
$21,334.24
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

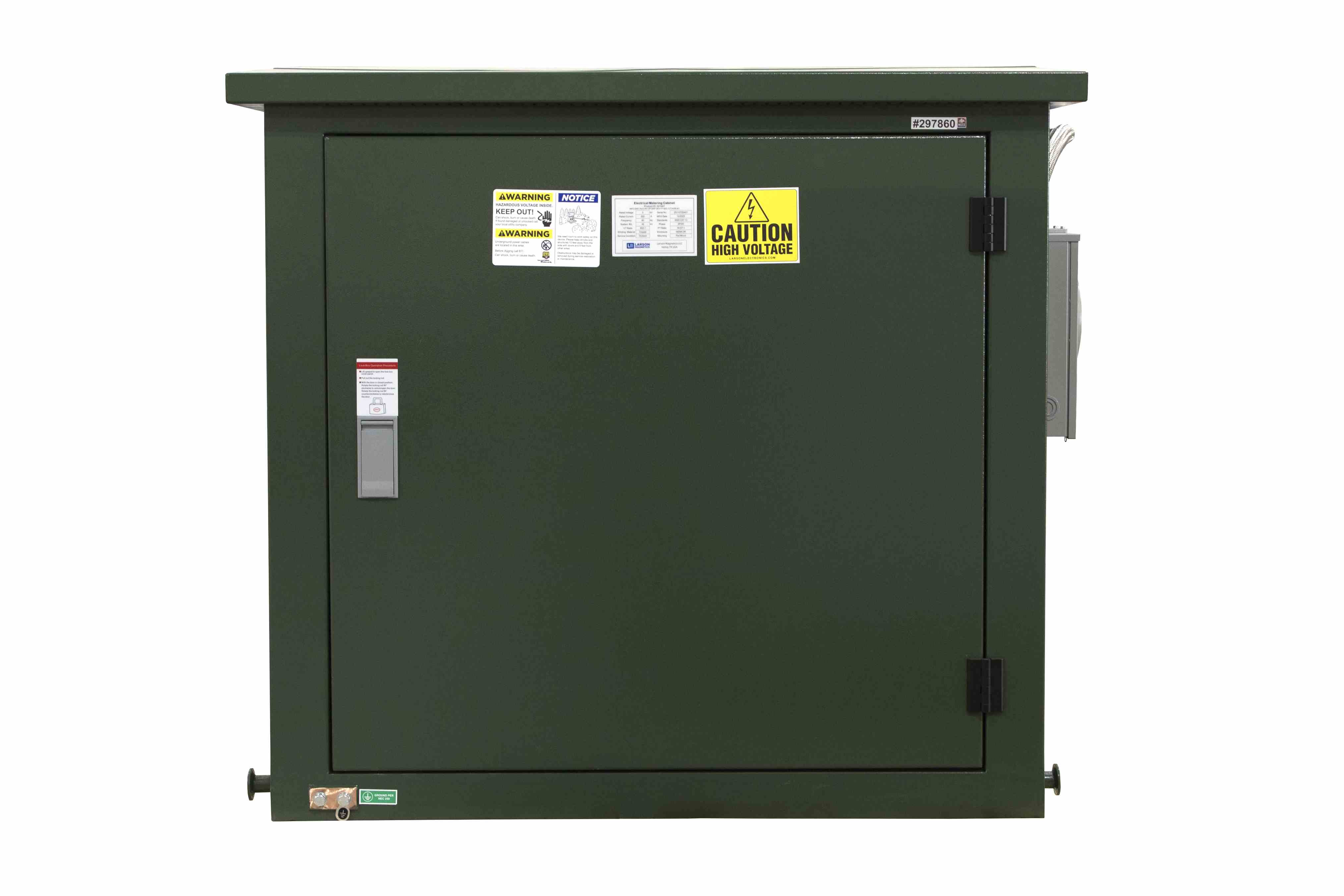

15 kV Electrical Metering Cabinet, Combination CT/PT, 3-Phase, Dry Type - ACUVIM II Power & Energy Meter - Pad Mount, Outdoor Service is a product intended for professional commercial and industrial applications.
Key Specifications
- Cabinet Features: The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 is rated for 15 kV, 60 Hz, three-phase operation. The system features dry-type CT/PT construction with copper buswork and dead-front separable load-break terminations. The integrated ACUVIM II Series Power & Energy Meter provides multifunction monitoring of voltage, current, power, energy consumption, frequency, power factor, demand, and harmonic distortion parameters with revenue-grade accuracy.
- Metering System: The ACUVIM II Series advanced multifunction meter supports real-time monitoring and data acquisition for utility and industrial applications. The metering device offers Ethernet and RS-485 communication capabilities with support for Modbus RTU/TCP protocols for integration into SCADA, BMS, and remote monitoring systems.
- Insulation System: The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 utilizes dry-type insulated CT/PT components for reliable medium voltage metering applications. The system is engineered for low maintenance operation and long service life in demanding outdoor environments.
- Primary Connections: The cabinet features 200A separable load-break bushings and fused jumpers insulated for 15 kV service. The primary conducting surfaces are designed for reliable medium voltage operation with high mechanical and thermal strength.
- Secondary Connections: The CT/PT assembly provides accessible terminal blocks and test switch provisions for simplified testing and maintenance procedures. Secondary wiring utilizes solid copper conductors with industry-standard color coding for accurate field identification and installation.
- Mount: The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 is pad mounted and constructed with a NEMA 3R weatherproof aluminum enclosure suitable for outdoor service conditions.
- Benefits: The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 Electrical Metering Cabinet provides accurate revenue-grade electrical monitoring for utilities, substations, industrial facilities, and power distribution systems. The integrated ACUVIM II metering platform enables improved energy management, power quality analysis, system diagnostics, and reduced operational costs through advanced monitoring capabilities.
- Applications: Utility metering, electrical substations, medium voltage distribution systems, industrial power monitoring, power quality analysis, SCADA integration, energy management systems, utility power generation, power grids, and high voltage system control applications.
This item is grouped with Medium Voltage Pad Mount Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
Utility metering, electrical substations, medium voltage distribution systems, industrial power monitoring, power quality analysis, SCADA integration, energy management systems, utility power generation, power grids, and high voltage system control applications.
Benefits
The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 Electrical Metering Cabinet provides accurate revenue-grade electrical monitoring for utilities, substations, industrial facilities, and power distribution systems. The integrated ACUVIM II metering platform enables improved energy management, power quality analysis, system diagnostics, and reduced operational costs through advanced monitoring capabilities.
Cabinet Features
The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 is rated for 15 kV, 60 Hz, three-phase operation. The system features dry-type CT/PT construction with copper buswork and dead-front separable load-break terminations. The integrated ACUVIM II Series Power & Energy Meter provides multifunction monitoring of voltage, current, power, energy consumption, frequency, power factor, demand, and harmonic distortion parameters with revenue-grade accuracy.
Insulation System
The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 utilizes dry-type insulated CT/PT components for reliable medium voltage metering applications. The system is engineered for low maintenance operation and long service life in demanding outdoor environments.
Metering System
The ACUVIM II Series advanced multifunction meter supports real-time monitoring and data acquisition for utility and industrial applications. The metering device offers Ethernet and RS-485 communication capabilities with support for Modbus RTU/TCP protocols for integration into SCADA, BMS, and remote monitoring systems.
Mount
The MPD-EMC-R7-3P-DMR-15KV-YT-200.5CT-N3R-M2 is pad mounted and constructed with a NEMA 3R weatherproof aluminum enclosure suitable for outdoor service conditions.
Primary Connections
The cabinet features 200A separable load-break bushings and fused jumpers insulated for 15 kV service. The primary conducting surfaces are designed for reliable medium voltage operation with high mechanical and thermal strength.
Secondary Connections
The CT/PT assembly provides accessible terminal blocks and test switch provisions for simplified testing and maintenance procedures. Secondary wiring utilizes solid copper conductors with industry-standard color coding for accurate field identification and installation.
