Model:
MGL-60C-480-15K-120-208Y-12X20-E18SKU:
MGL-60C-480-15K-120-208Y-12X20-E18Availability:
In StockDocuments:
Spec Sheet
$15,194.90
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

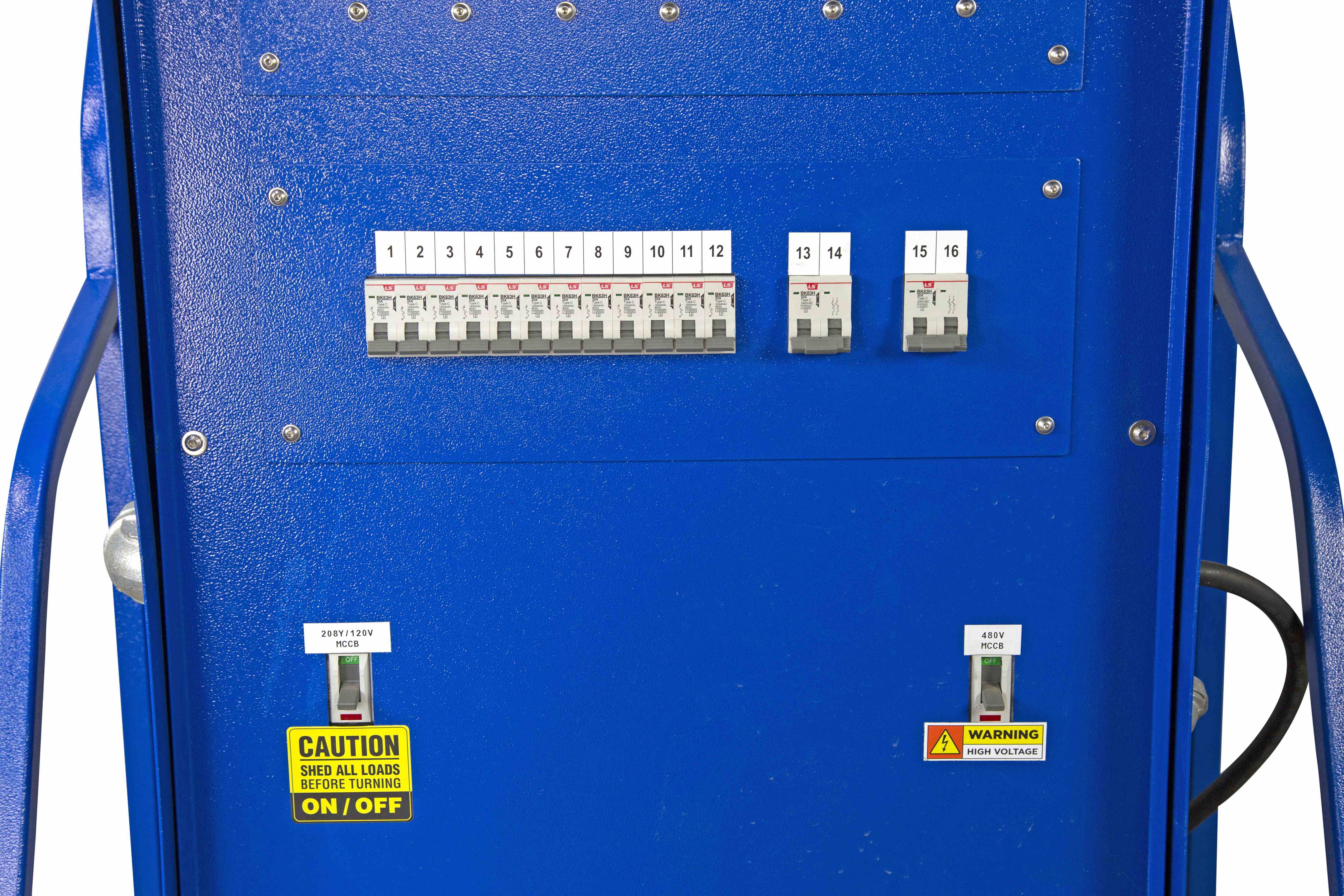

15 KVA Temporary Power Distribution - 480V Transformer - (12) 120V GFCI Outlets - 18" Above Ground is a product intended for professional commercial and industrial applications.
Key Specifications
- Line-In: 60` #6 Type-W Cable
- Line-In Cord Cap: Crouse-Hinds NPJ-3484 or compatible plug
- Primary Voltage: Three Phase, 480 VAC 60Hz
- Disconnect: 30A 480V AC, 3PH - Fused at 20A
- Transformer: 15 KVA 480 120/208Y
- Secondary Panel: 100A Main Breaker 120/208Y
- Secondary Breakers: (12) 20A Breakers
- Form Factor: Powder Coated Steel Dolly Cart w/ Run Flat Tires
- Dimensions: W-40" X D-40" X H-48"
- Weight: 350lbs
This item is grouped with Power Distribution Panels with KVA Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Dimensions
W-40" X D-40" X H-48"
Disconnect
30A 480V AC, 3PH - Fused at 20A
Line-In
60` #6 Type-W Cable
Line-In Cord Cap
Crouse-Hinds NPJ-3484 or compatible plug
Max Primary OCP
18 amps @ 480V
Max Secondary OCP
41 amps @ 208Y
Secondary Breakers
(12) 20A Breakers
Secondary panel
100A Main Breaker 120/208Y
Transformer
15 KVA 480 120/208Y
Weight
350lbs
Technical
Form Factor
Powder Coated Steel Dolly Cart w/ Run Flat Tires
Primary Voltage
Three Phase, 480 VAC 60Hz
