Model:
MT-PCPU-3P-12KV-150KVAR-3.32UF-50.60HZ-M1SKU:
MT-PCPU-3P-12KV-150KVAR-3.32UF-50.60HZ-M1Availability:
In StockDocuments:
Spec Sheet
$4,416.08
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

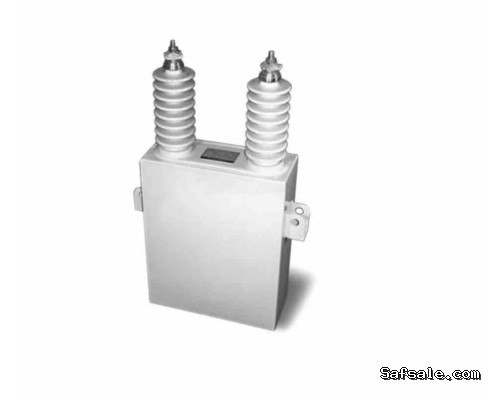

150/180 KVAR 3-Phase Power Capacitor Unit - 12 kV Nominal Voltage, 3.32 uF, 50/60 Hz, Light Grey is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Power Capacitor Unit, Externally Fused
- Phase: Three Phase
- Nominal Voltage Rating: 12 kV
- Capacitor Power Rating: 150/180 KVAR
- Capacitance: 3 x 3.32 µF (-5/+10%)
- Rated Current: 3 x 7.2/8.7 A
- Rated Frequency: 50/60 Hz
- Insulation Level: 20/60 kV
- Number of Bushing(s): (3)
- Creepage Distance: ≥ 12.6"
This item is grouped with 800A-1200A Non-Fused Disconnect Switches - Wall Mount Disconnects.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Altitude
<3,300ft Above Sea Level
Arc Distance
4.25"
Bushing Material
Porcelain, w/ Stud Connection
Capacitance
3 x 3.32 µF (-5/+10%)
Capacitor Power Rating
150/180 KVAR
Connection
Wye
Creepage Distance
≥ 12.6"
Discharge
75/600 V/s (3x 12 MΩ)
Distance Between the Bushings
9.25
Dry LI Withstand Voltage
75 kV
Dry PF Withstand Voltage
28 kV
Enclosure Finish
Munsell™ 5BG
Enclosure Material
Stainless Steel
Insulation Fluid
Faradol 810 Insulation Fluid, Non-PCB Fluid
Insulation Level
20/60 kV
Internal Fuse
N/A
Lifting Provisions
Included
Mount
Floor Mounted
Nominal Voltage Rating
12 kV
Number of Bushing(s)
(3)
Operating Temperature
-25°C to +45°C
Overall Dimensions
20.87"-W x 5.63"-D x 22.83"-H
Parallel Element(s)
(2)
Pressure Switch
N/A
Rated Current
3 x 7.2/8.7 A
Rated Frequency
50/60 Hz
Seismic Zone
Dev. +2
Series Group(s)
(3)
Shipping Dimensions
TBD
Shipping Weight
TBD
Side Brackets
Included, 2+2
Snow Load
-
Tan δ
< 0.05%
Temperature Category
-25/D
Total Weight
70.55 lbs
Unit Type
Power Capacitor Unit, Externally Fused
Weight
18.96 lbs (Non-PCB)
Wet PF Withstand Voltage
28 kV
ΔC
-3~+5%
Technical
Phase
Three Phase
