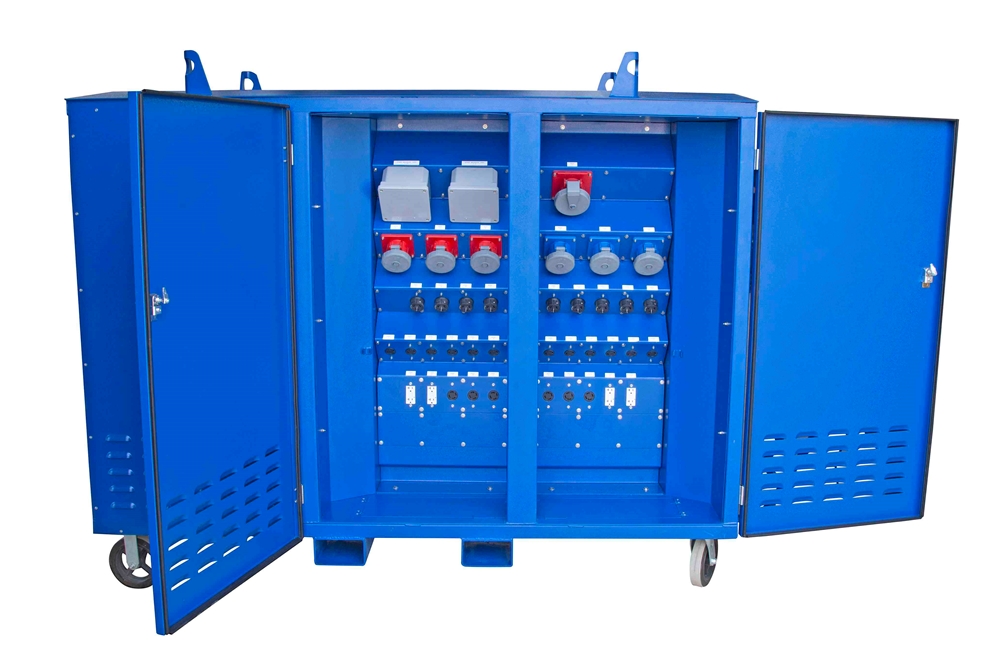

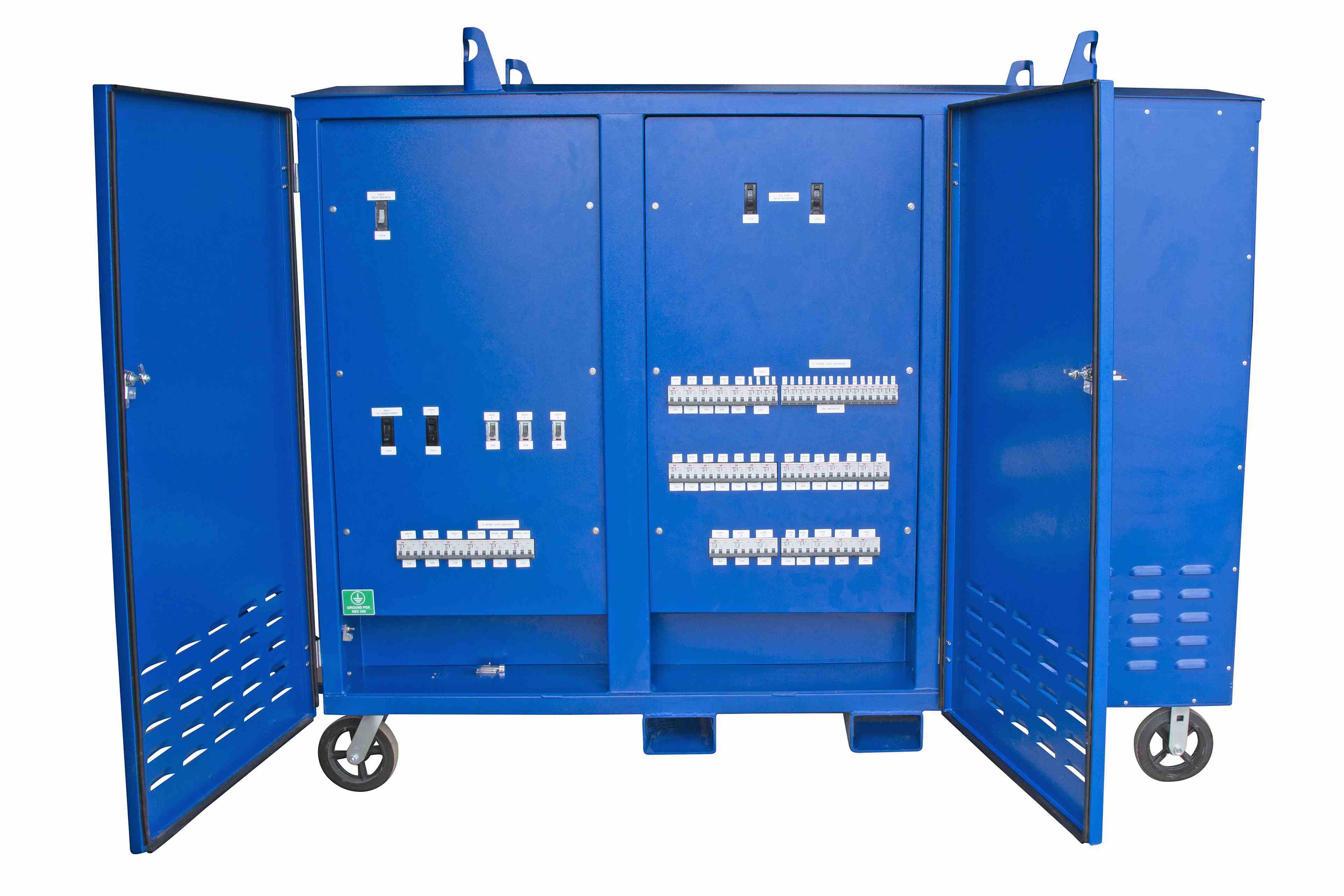

150KVA Power Distribution - 480V to 208Y/120V 3PH - Camlock Inputs - (4) 5100R9W Receptacles

Product Overview

150KVA Power Distribution - 480V to 208Y/120V 3PH - Camlock Inputs - (4) 5100R9W Receptacles is a product intended for professional commercial and industrial applications.

Key Specifications

• Operation: One set of 600V-rated, 400-amp male camlock inputs (brown, orange, yellow, and green) brings in 480V three phase power to the NEMA 3R 150 KVA transformer. The transformer converts 480V three phase power to 208Y/120V three phase and passes the current to the secondary panel. The secondary side of the transformer feeds a NEMA 3R 400-amp, 208Y/120V three phase main circuit breaker panel. This main circuit breaker panel contains four 100-amp breakers protecting four 100-amp, 5100R9W pin/sleeve receptacles for 208Y/120V equipment.
• Certification: Larson Electronics is a UL 1640 panel shop and certified to build portable power distribution systems. All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
• Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
• Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
• Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or

This item is grouped with 45-55KVA Portable Power Distribution Systems.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
