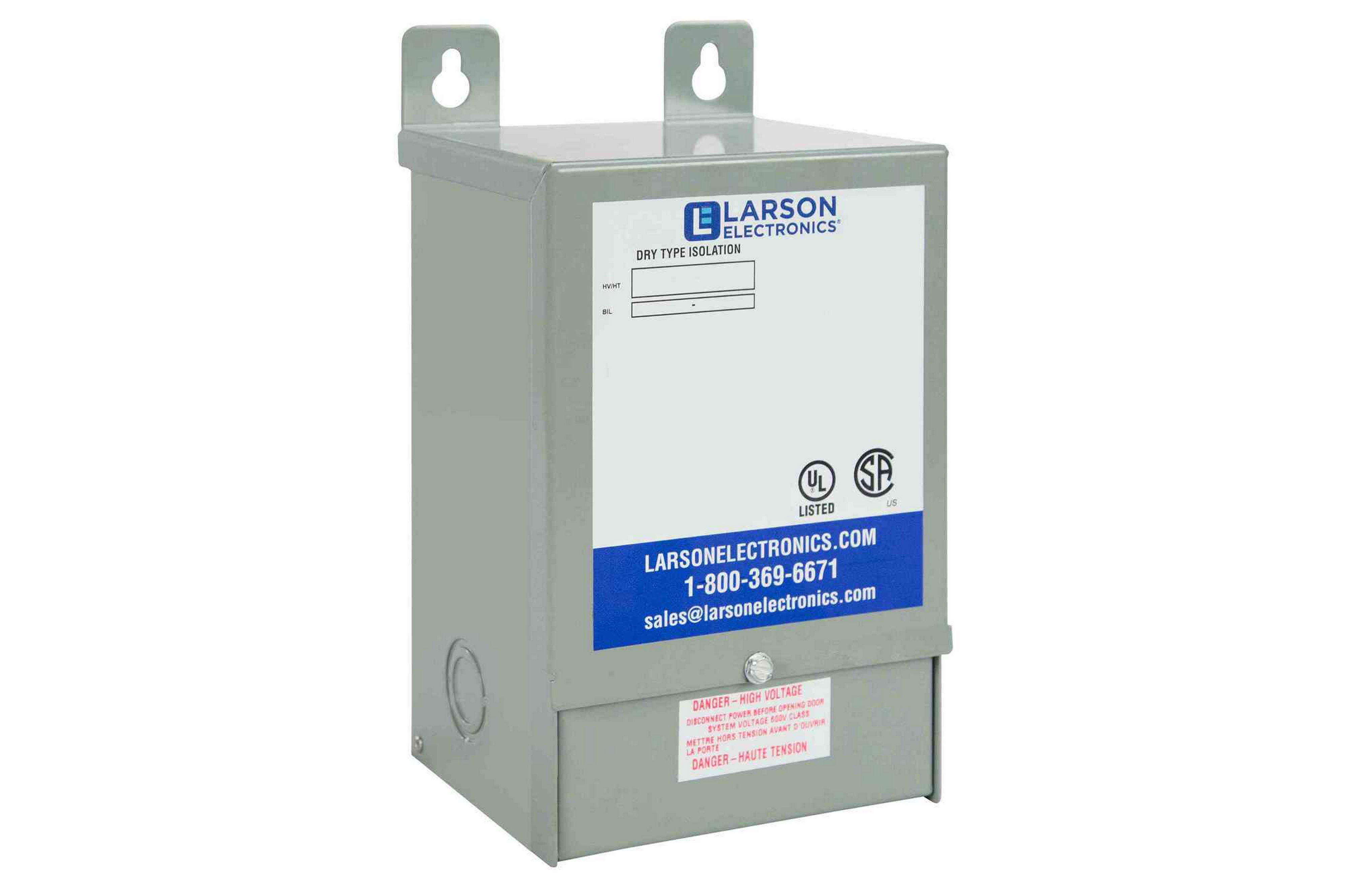

200 VA Isolation Transformer - 120V Primary - 24V AC Secondary - 50/60Hz - Fully Potted/Encapsulated

Product Overview

200 VA Isolation Transformer - 120V Primary - 24V AC Secondary - 50/60Hz - Fully Potted/Encapsulated is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: The MT-ISX-FP-1P-120V-200VA-24V-N3R isolation transformer is a single phase unit with a 200 VA (0.20 kVA) rating and a primary voltage of 120 V AC on the primary side. This transformer has a secondary voltage of 24 V AC on the secondary side. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
• Construction: The aluminum winding in the MT-ISX-FP-1P-120V-200VA-24V-N3R are formed from high quality aluminum wire help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. Isolation
• Benefits: The MT-ISX-FP-1P-120V-200VA-24V-N3R isolation transformer offers many benefits to the consumer. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Installation and maintenance costs are reduced due to the smaller form factor, and less overall space requirements are decreased. In addition, these transformers operate quieter than a standard autotransformer of the same capacity.
• Mounting: Integrated wall mounting brackets make installation fast and easy. Because of the smaller overall footprint, heavy machinery is rarely needed for mounting and installation.
• Applications: Air conditioners, lighting systems, heating elements, motor applications and other applications that that require the ability to power loads that differ from the available line voltage.
• Limitations: While there are many benefits to an isolation transformer and there are some limitations to consider. This transformer will only transform voltage, it will not convert phases and does not allow use of the neutral. If any of these limitations apply to you, you will need a standard transformer. Please see below link for our standard line of
• For three phase transformers, click on the following links: Three

This item is grouped with 7.5 KVA and Below Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
