Model:
MPD-DS-WM-FDS-3P-3W-5KV-200A-DF-BM-N1SKU:
MPD-DS-WM-FDS-3P-3W-5KV-200A-DF-BM-N1Availability:
In StockDocuments:
Spec Sheet
$6,878.55
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

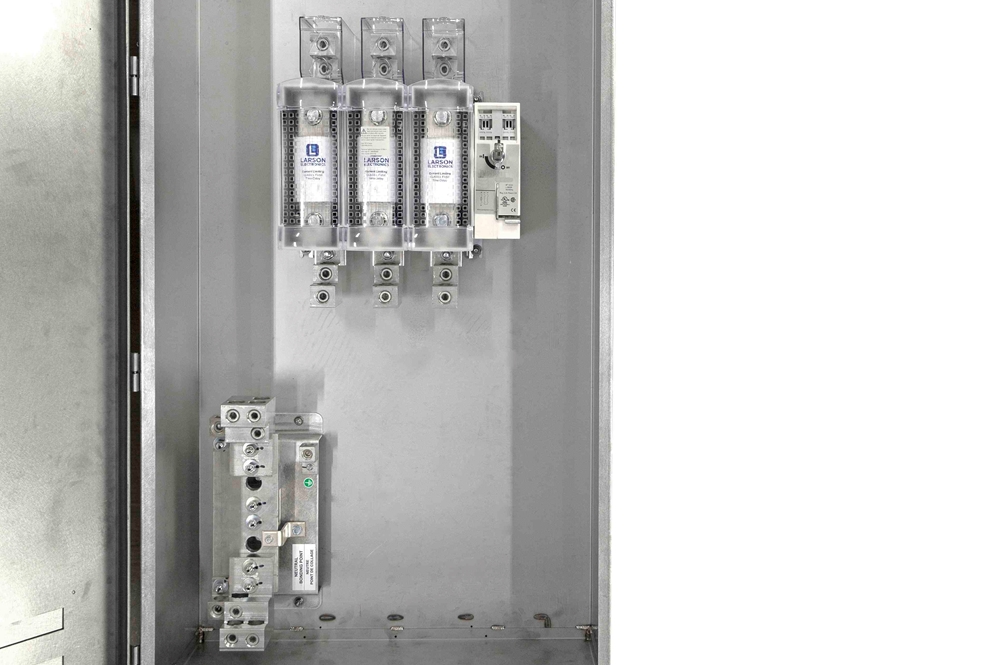

200A Fused Disconnect Switch, 4160V (5kV Class), Wall Mount, NEMA 1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Fused Disconnect Switch
- Configuration: 3-Phase, 3-Wire
- Voltage: 4160V AC (5kV Insulation Class)
- Amperage: 200A
- Disconnect Means: Manual via Handle
- Line-In Connections: Terminal Lugs
- Line-In Orientation: Bottom Feed
- Line-Out Connections: Terminal Lugs
- Line-Out Orientation: Bottom Feed
- Enclosure Material: Sheet Steel
This item is grouped with Fused Disconnect Switches - Wall Mount Disconnects.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Amperage
200A
Approximate Weight
800 lbs (estimated)
Configuration
3-Phase, 3-Wire
Disconnect Means
Manual via Handle
Enclosure Material
Sheet Steel
Enclosure Type
NEMA 1
Line-In Connections
Terminal Lugs
Line-In Orientation
Bottom Feed
Line-Out Connections
Terminal Lugs
Line-Out Orientation
Bottom Feed
Mount
Wall Mount
Overall Dimensions
36"W × 52"H × 24"D (estimated)
Shipping Dimensions
TBD
Shipping Weight
TBD
Unit Type
Fused Disconnect Switch
Voltage
4160V AC (5kV Insulation Class)
