200mW Explosion Proof Red Crane Warning Laser- C1D1/C2D1 - 50/60 Hz - Aluminum

Product Overview

200mW Explosion Proof Red Crane Warning Laser- C1D1/C2D1 - 50/60 Hz - Aluminum is a product intended for professional commercial and industrial applications.

Key Specifications

• Durability: The EXHL-TRN-LE5-CRN-RED-200MW-1227 explosion proof red laser from Larson Electronics is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining lightweight and easy to use. These units can operate in temperatures of -40° Celsius to 50° Celsius, are waterproof to 3 meter and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are shatterproof borosilicate glass.

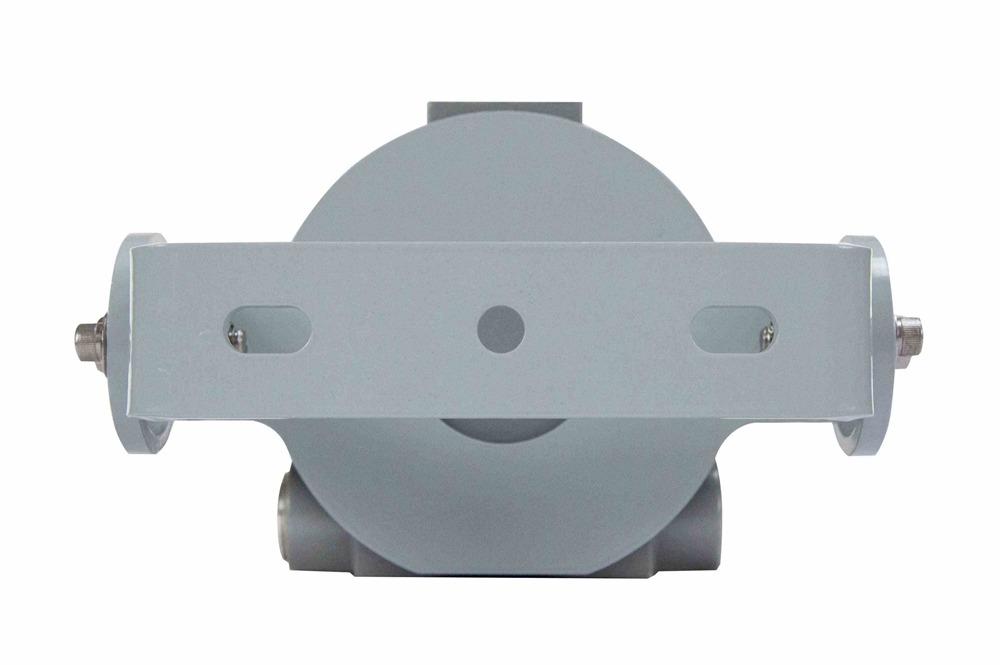

• Mounting: This explosion proof laser features an adjustable surface mount bracket for seamless control. The included adjustable flat surface bracket has two set screws on the bracket, allowing operators to loosen the mounting bracket, adjust the laser`s tilt orientation, and re-tighten to hold the unit in position. A single thru-hole mounting bolt allows operators to adjust the rotation of the fixture by loosening one bolt.
• Wiring: Terminal strips inside the unit allow operators to make electrical connections. Wiring is fed through rigid pipe to the 3/4" NPT hubs on either side of the fixture and tied in to the fixture’s terminal strips, completing the electrical connection.
• Applications: Crane safety, crane measurements, crane warning system and more.

This item is grouped with 12 / 24 Volt Lights.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
