Model:
WCDE-20KW-8X250LTL-LED-220V-CPRSKU:
WCDE-20KW-8X250LTL-LED-220V-CPRAvailability:
In StockDocuments:
Spec Sheet
$59,634.17
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

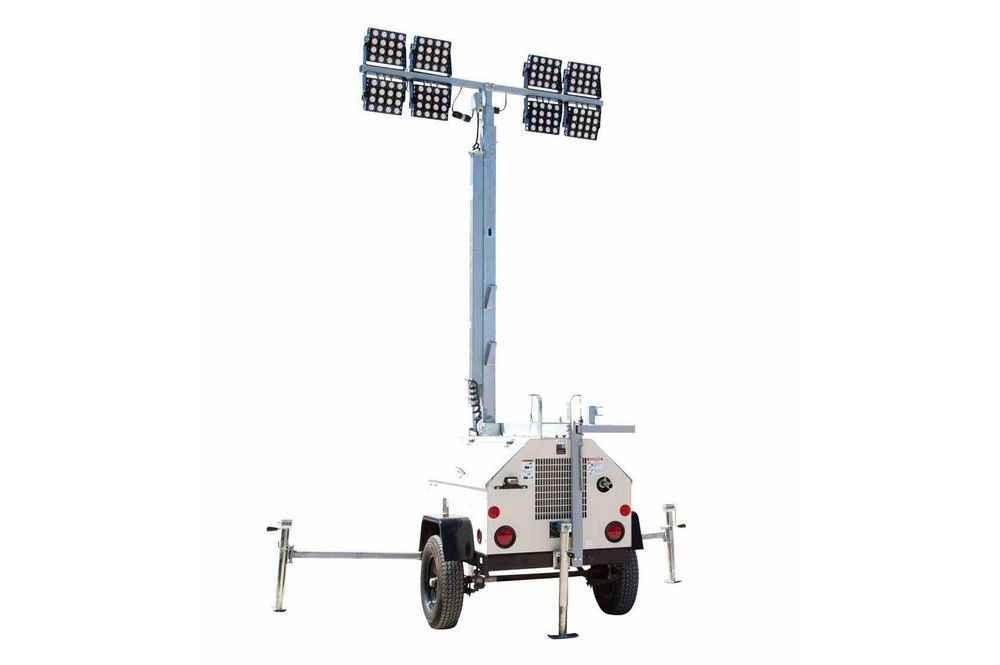

20kW Generator - Water Cooled Diesel Engine - 25' Telescoping Tower - (8) LED Lamps - 25 Gal Tank is a product intended for professional commercial and industrial applications.
Key Specifications
- Genset Specs: 20kW Perkins Genset
- Engine: Perkins/404D-22G EPA Tier 4
- Engine Type: 4-cycle, Water Cooled, Direct Injection, Natural Intake
- Engine Speed: 1800 RPM
- No. of Cylinders: 4
- Rated Power: 20 kW
- Rated Standby Output: 22 kW
- Generator: Stamford PI144D
- Voltage: 220V 60Hz 3PH
- Fuel Cell Capacity: 25 Gallons
This item is grouped with 110/120 Volt Flood Lights.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Temperature Range
-40°C to +80°C
Axle
(1) 2,200 lbs
Boom Height
Up to 25`
Coverage
8 to 9 Acres
Engine
Perkins/404D-22G EPA Tier 4
Engine Speed
1800 RPM
Engine Type
4-cycle, Water Cooled, Direct Injection, Natural Intake
Features
Coiled Mast Cord, (1) Lifting Eye and Fork Pockets
Finish
Industrial Grade Paint
Fuel Cell Capacity
25 Gallons
Fuel Delivery
Electric
Generator
Stamford PI144D
Genset Specs
20kW Perkins Genset
Hitch
2" ball hitch
Housing Color
Natural Aluminum
LED Color Temperature
4000K or 5000K
Led Drive %
90%
LED Life Expectancy
80,000 hours
Light Mast Specs
Withstands 50Mph Winds at Full Extension
Lighting
DOT Approved tail, side, brake, and directional lights
Luminous Efficiency
135 lm/w
Mast Type
Manual Crank-Up
Materials
14ga Sheet Steel Enclosure, 12ga Formed Steel Chassis
Mounting
Stainless Steel Trunnion Mount U-Bracket
No. of Cylinders
4
Noise Level
Db level 65 @ 23 ft
Operation
Dual Winch System
Optics Efficiency
98% - PMMA High Transmittance Optics
Outriggers
(4) Adjustable Outriggers w/ 2,000 lbs Manual Leveling Jacks
Rated Power
20 kW
Rated Standby Output
22 kW
Stages
Four
Suspension
2,000 lbs Double Eye Leaf Springs
Total Lumens
259,200 (32,400 per lamp)
Total Watts
1,920 (240W per lamp)
Voltage
220V 60Hz 3PH
Waterproof Rating
IP67
Wheels
(2) 13
Winch
1,500 lbs - Self-Braking
Technical
Power Factor
>97%
