Model:
MT-SPI-23KV-150KV-19.9IN-M1SKU:
MT-SPI-23KV-150KV-19.9IN-M1Availability:
In StockDocuments:
Spec Sheet
$4,500.00
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

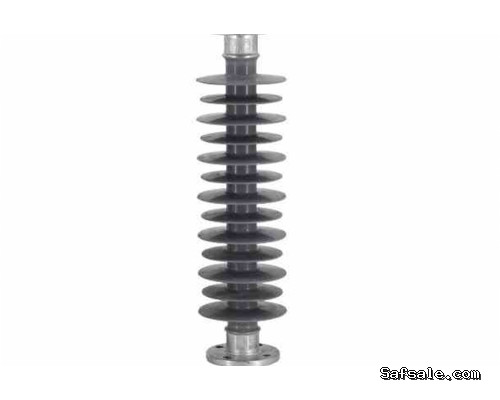

23kV Vertical Station Post Polymer Insulator, Ø160mm/Ø120mm, 505mm Pitch, 900mm Creepage, 24.2kN Cantilever, with Trunnion Clamp and Preformed Armor Rod Set is a product intended for professional commercial and industrial applications.
Key Specifications
- Rated Voltage: 23kV
- BIL: 150kV
- Pitch (Insulating Length): 505mm [19.9 in]
- Creepage Distance: 900mm [35.4 in]
- Cantilever Mechanical Strength: 24.2 kN [5,438 lbf]
- Skirt Configuration: Circular Base, 5 + 4 Skirts (9 total)
- Diameters: Ø160mm and Ø120mm (skirt vs. base assignment not confirmed)
- Overall Dimensions: 6.3 in W × 6.3 in D × 19.9 in H (estimate)
- Approximate Weight: 17.6 lbs (estimate)
- Shipping Dimensions: TBD
This item is grouped with 400A-600A Non-Fused Disconnect Switches - Wall Mount Disconnects.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Approximate Weight
17.6 lbs (estimate)
BIL
150kV
Cantilever Mechanical Strength
24.2 kN [5,438 lbf]
Creepage Distance
900mm [35.4 in]
Diameters
Ø160mm and Ø120mm (skirt vs. base assignment not confirmed)
Overall Dimensions
6.3 in W × 6.3 in D × 19.9 in H (estimate)
Pitch (Insulating Length)
505mm [19.9 in]
Rated voltage
23kV
Shipping Dimensions
TBD
Shipping Weight
TBD
Skirt Configuration
Circular Base, 5 + 4 Skirts (9 total)
