Model:
MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1SKU:
MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1Availability:
In StockDocuments:
Spec Sheet
$10,400.38
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview
25 KVA Pole Mount Distribution Transformer - 12470V Delta Primary, 120/240V Secondary - Copper/Mineral Oil/DOE - 5-Position TC - is a product intended for professional commercial and industrial applications.
Key Specifications

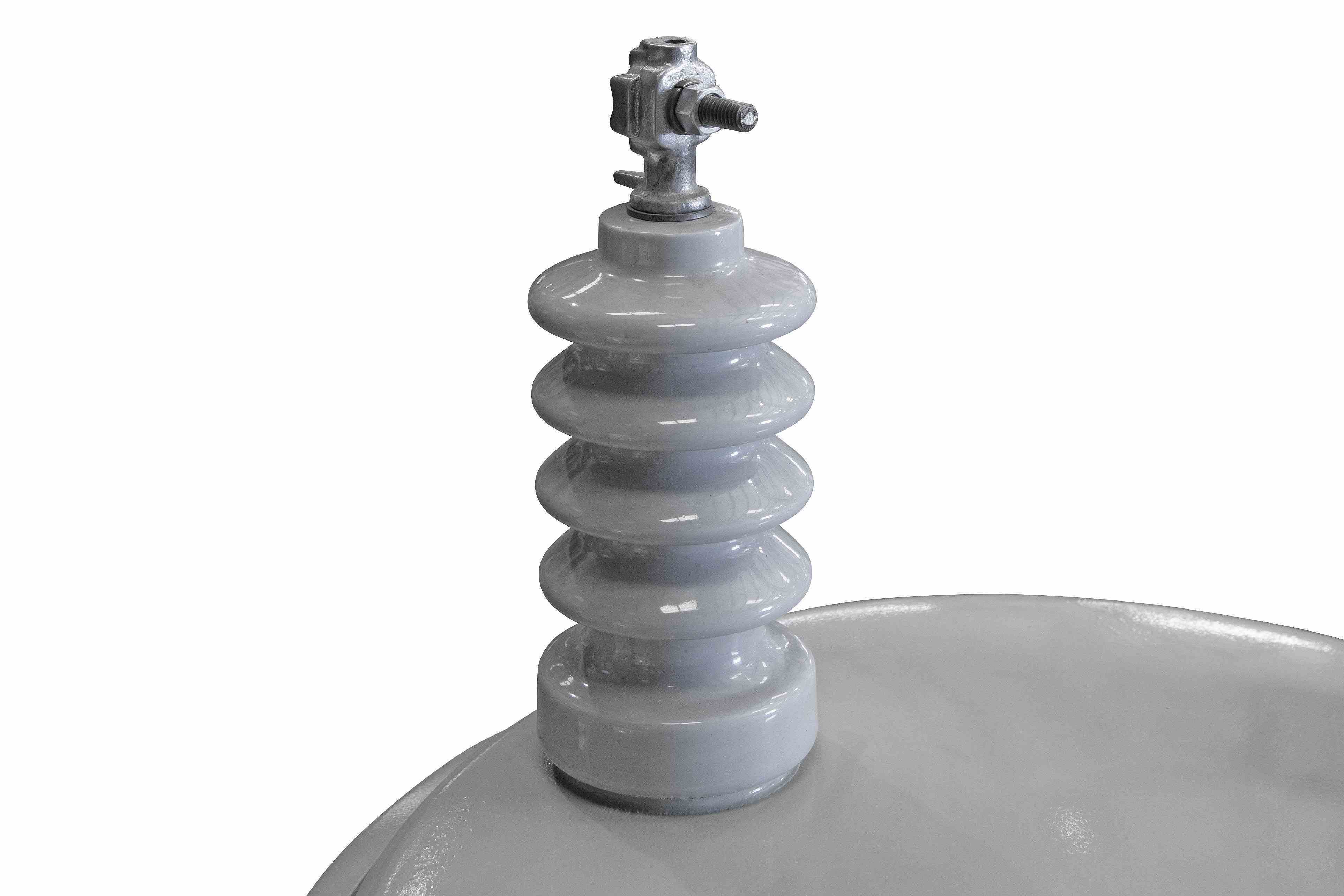

- Transformer Features: With a transformer rating of 25 KVA, the industrial transformer features a primary voltage of single-phase 12470V Delta and a secondary voltage of single-phase 120/240V (L-L-N). This pole mount transformer features porcelain high-voltage, dual bushings on the primary side and three bushings on the secondary side. Equipped with copper windings and a grain oriented steel core, this single-phase transformer consists of one coil and two core loops. Tin plated terminals on the primary and secondary side accepts copper or aluminum connections.
- Insulation Fluid: The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 features mineral oil insulation fluid. Internal marking is available for proper oil level monitoring. We offer transformers with FR-3 oil fluid, if needed.
- The following gauges are included with the system: • Liquid level indicator - internal line
- Pressure Relief Device: An automatic pressure relief device is included with this transformer.
- Rapid Rise Relay: There are no rapid rise relays on the unit. This safety component is designed for protection when a rapid increase in tank pressure occurs. The relay is suitable for detecting sudden pressure fluctuations above predetermined safe limits.
- Surge arresters: This system does NOT come with a lightning arrestor on the H1 primary terminal. There are mounting provisions that can accept a lightning surge arrestor on the H1 terminal.
- Load Breaker Switch: The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 does not have a load breaker switch.
- Valves: The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 is not equipped with a fill valve and drain valve with sampler port.
- Protection Fuses: This transformer does not contain fuses or circuit breakers. For units without protection fuses, up stream protection is provided. We recommend provisions for protection fuses when possible, as blown fuses may require more frequent oil changes.
- Mount: The heavy-duty enclosure makes the unit suitable for and outdoor applications. Equipped with hangar brackets and lifting lugs, this overhead power distribution system can be mounted on poles.
This item is grouped with 100-112.5 KVA Industrial Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
General purposes, industrial sites, electrical rooms, public locations, manufacturing facilities, steel plants, offshore, commercial, military, processing plants, electric power distribution, utilities, public locations and more.
Benefits
The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 heavy-duty transformer offers many benefits to consumers. This transformer provides owners with significant energy savings, as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turns into cost savings for owners in the form of lower energy bills and decreased cost of ownership.
Insulation Fluid
The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 features mineral oil insulation fluid. Internal marking is available for proper oil level monitoring. We offer transformers with FR-3 oil fluid, if needed.
Load Breaker Switch
The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 does not have a load breaker switch.
Mount
The heavy-duty enclosure makes the unit suitable for and outdoor applications. Equipped with hangar brackets and lifting lugs, this overhead power distribution system can be mounted on poles.
Pressure Relief Device
An automatic pressure relief device is included with this transformer.
Protection Fuses
This transformer does not contain fuses or circuit breakers. For units without protection fuses, up stream protection is provided. We recommend provisions for protection fuses when possible, as blown fuses may require more frequent oil changes.
Rapid Rise Relay
There are no rapid rise relays on the unit. This safety component is designed for protection when a rapid increase in tank pressure occurs. The relay is suitable for detecting sudden pressure fluctuations above predetermined safe limits.
Surge arresters
This system does NOT come with a lightning arrestor on the H1 primary terminal. There are mounting provisions that can accept a lightning surge arrestor on the H1 terminal.
The following gauges are included with the system
• Liquid level indicator - internal line
Transformer Features
With a transformer rating of 25 KVA, the industrial transformer features a primary voltage of single-phase 12470V Delta and a secondary voltage of single-phase 120/240V (L-L-N). This pole mount transformer features porcelain high-voltage, dual bushings on the primary side and three bushings on the secondary side. Equipped with copper windings and a grain oriented steel core, this single-phase transformer consists of one coil and two core loops. Tin plated terminals on the primary and secondary side accepts copper or aluminum connections.
Valves
The MT-UPM-R9-1P-DMR-25KVA-SLT-BZ-A6-BM-CZ-Z-M1 is not equipped with a fill valve and drain valve with sampler port.
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Manual 4.21 MB
ANSI Certificate 1 188.18 KB
MSDS 296.01 KB
Spec Sheet 890.22 KB
FCC Certificate 163.87 KB
Shipping Time Map 424.5 KB
