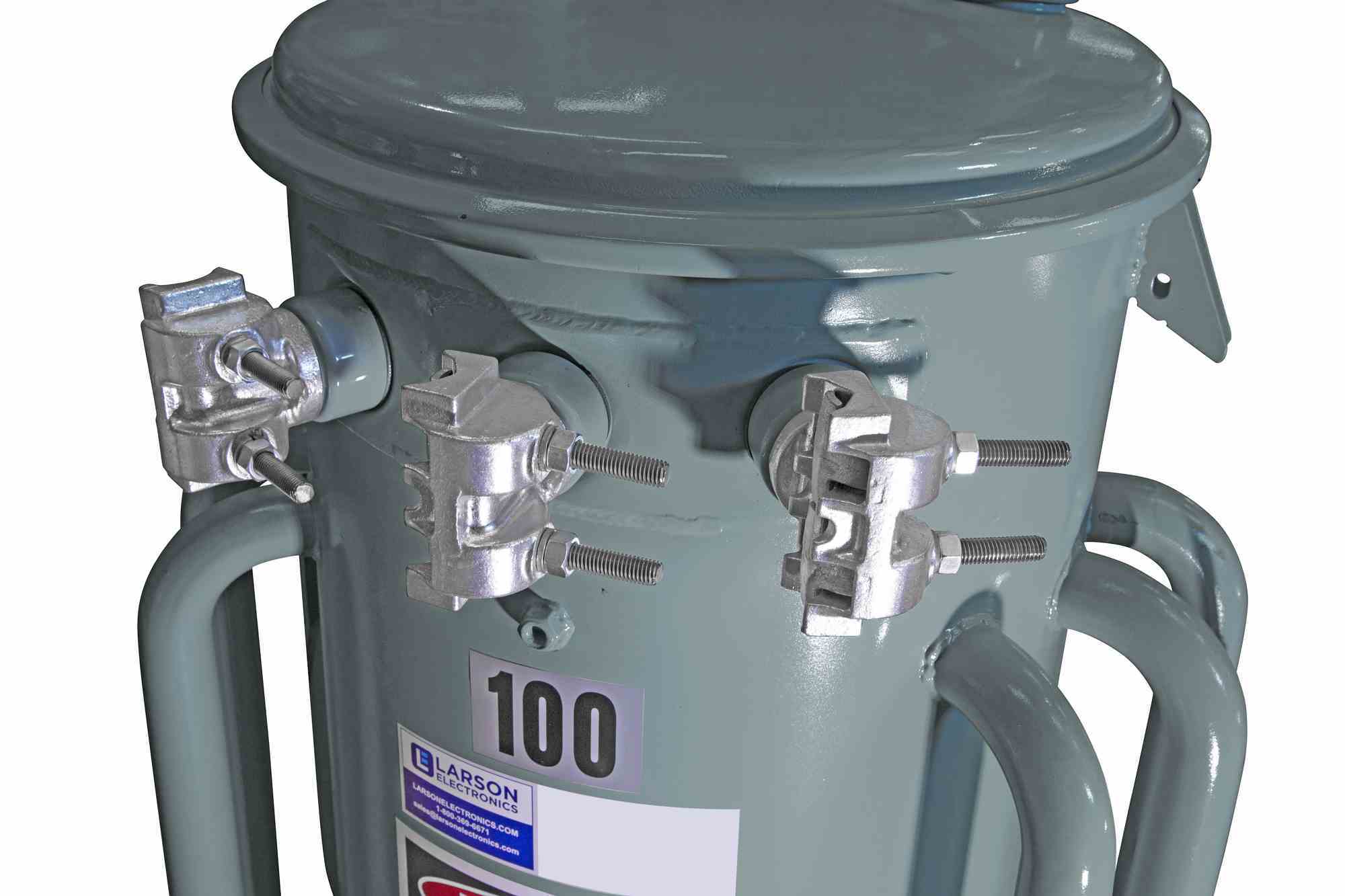

25 KVA Pole Mount Distribution Transformer - 4160/7200Y x 2400/4160Y Grounded Wye Dual Primary, 120/240V Secondary - FR-3 Oil/KNAN

Product Overview

25 KVA Pole Mount Distribution Transformer - 4160/7200Y x 2400/4160Y Grounded Wye Dual Primary, 120/240V Secondary - FR-3 Oil/KNAN is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: With a transformer rating of 10 kVA, the industrial transformer features a primary voltage of single-phase 4160/7200Y x 2400/4160Y Grounded Wye (2 wire) and a secondary voltage of single-phase 120/240V (L-N-L). This pole mount transformer features porcelain high-voltage, dual bushings on the primary side and three bushings on the secondary side. Equipped with copper windings and a grain oriented steel core, this single-phase transformer consists of one coil and two core loops. Tin plated terminals on the primary and secondary side accepts copper or aluminum connections.
• Insulation Fluid: The MT-UPM-R7-1P-GNC.NF-25KVA-SZ-BJ-A6-BF-CZ-BZZ-M1 features FR-3 oil insulation fluid. Internal marking is available for proper oil level monitoring. We offer transformers with mineral oil fluid, if needed.
• Gauges: There are no gauges on this transformer. We can add liquid level, temperature and pressure/vacuum gauges at an additional cost. Standard liquid level, temperature and pressure/vacuum gauges are analog, manual reading types.
• Pressure Relief Device: An automatic pressure relief device is included with this transformer.
• Rapid Rise Relay: There are no rapid rise relays on the unit. This safety component is designed for protection when a rapid increase in tank pressure occurs. The relay is suitable for detecting sudden pressure fluctuations above predetermined safe limits.
• Surge arresters: This system comes with a lightning arrestor on the H1 primary terminal. Mounting provisions for installing lightning arrestor on the H2 primary terminal are available. Designed for over-voltage and transient voltage protection, the components prevent damage caused by lightning, internal switching or voltage surges. We can offer models without high elbow surge arresters that have mounting provisions for customer-provided surge arresters.
• Load Breaker Switch: The MT-UPM-R7-1P-GNC.NF-25KVA-SZ-BJ-A6-BF-CZ-BZZ-M1 does not have a load breaker switch.
• Valves: The MT-UPM-R7-1P-GNC.NF-25KVA-SZ-BJ-A6-BF-CZ-BZZ-M1 is not equipped with a fill valve and drain valve with sampler port.
• Protection Fuses: This transformer does not contain fuses or circuit breakers. For units without protection fuses, up stream protection is provided. We recommend provisions for protection fuses when possible, as blown fuses may require more frequent oil changes.
• Mount: The heavy-duty enclosure makes the unit suitable for and outdoor applications. Equipped with hangar brackets and lifting lugs, this overhead power distribution system can be mounted on poles.

This item is grouped with 10 KVA 1PH Overhead Distribution Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
