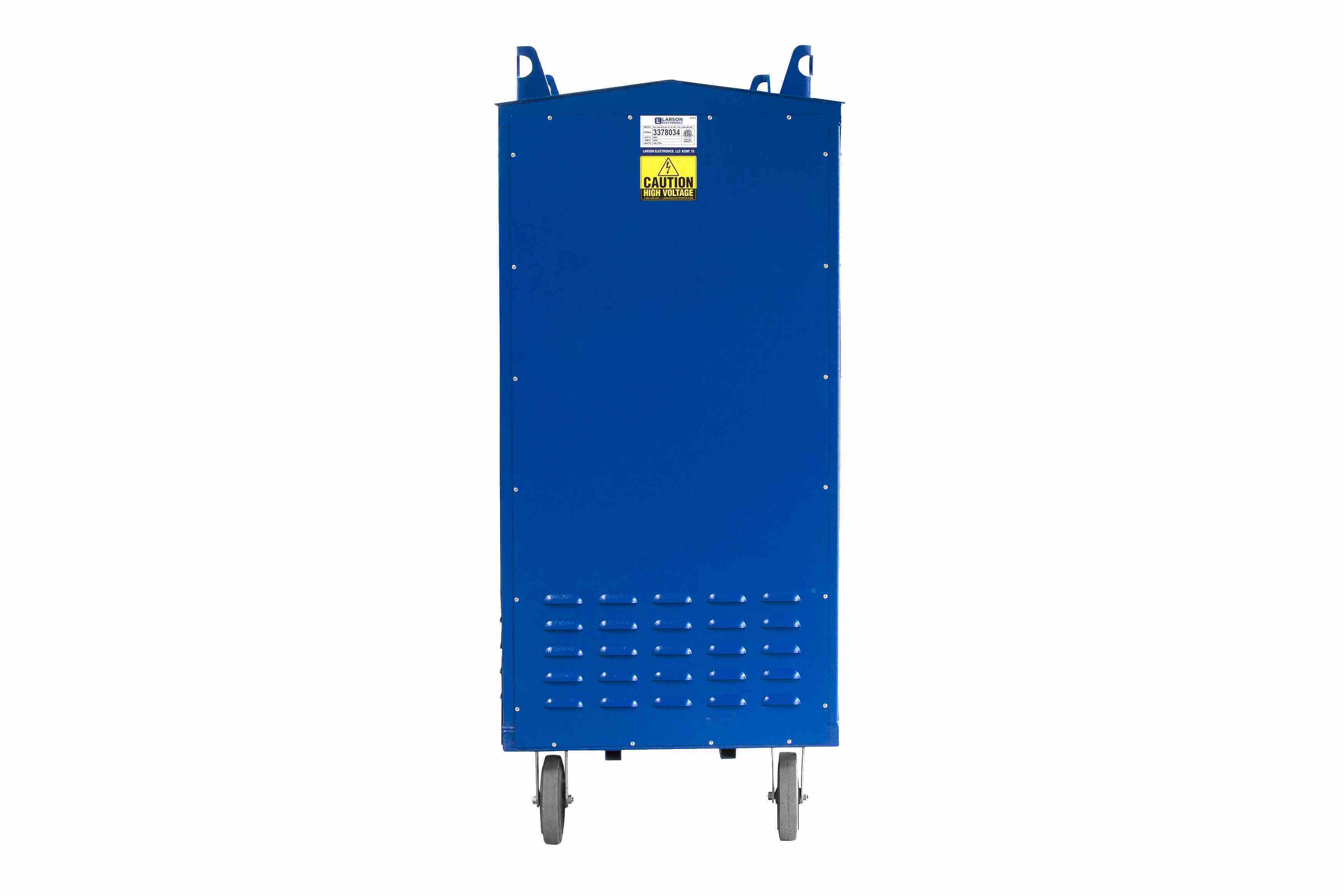

45 KVA Portable Distribution Cart, 480V - 208Y/120V 3PH, (8) L5-30R Outlets, 20' 6/4 AWG SOOW Cord, NEMA 3R

Product Overview

45 KVA Portable Distribution Cart, 480V - 208Y/120V 3PH, (8) L5-30R Outlets, 20' 6/4 AWG SOOW Cord, NEMA 3R is a product intended for professional commercial and industrial applications.

Key Specifications

• Operation: • Primary Voltage: 480V AC Delta 3PH

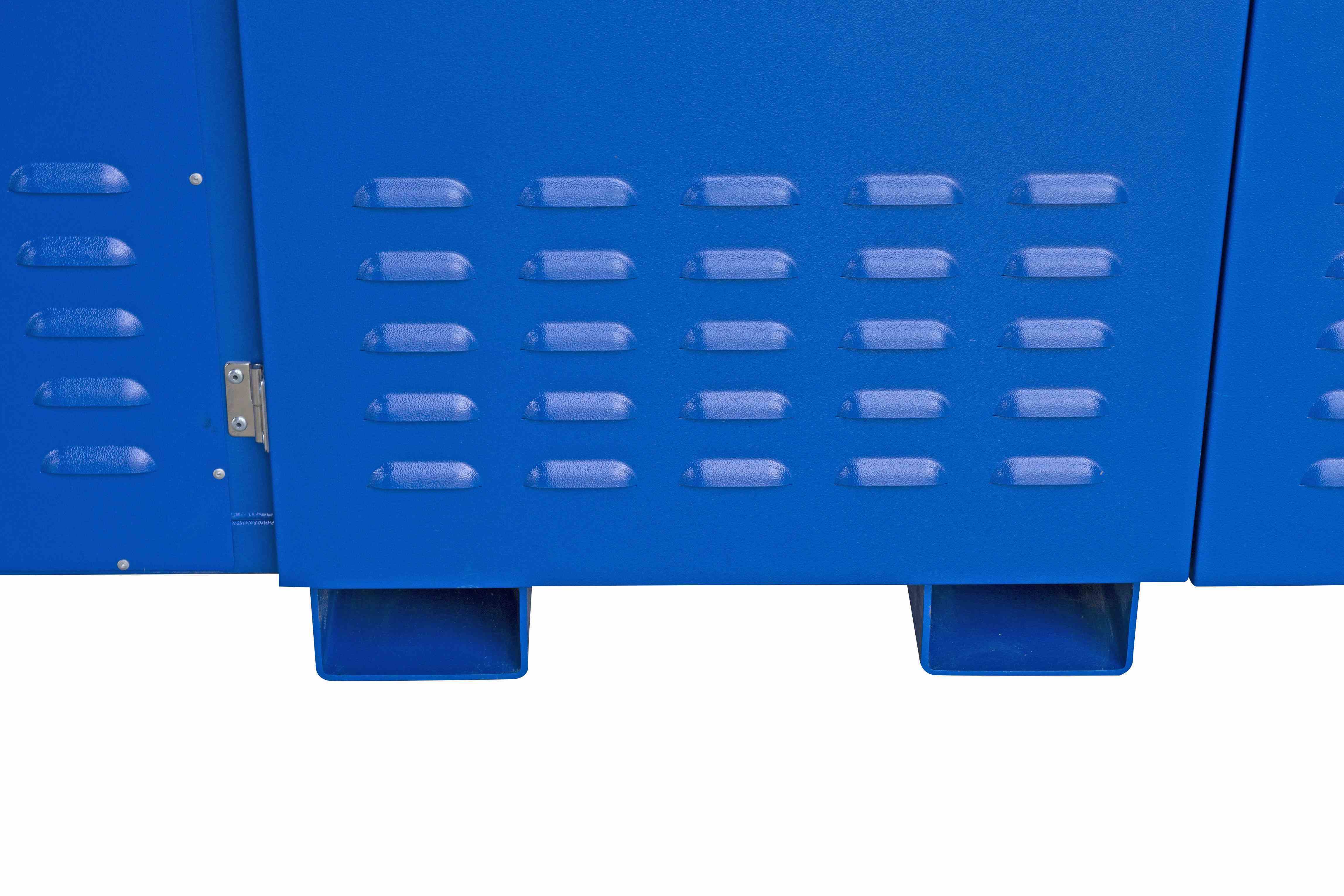

• Protective Construction: This temporary power distribution unit is fully enclosed and is ruggedly constructed to withstand demanding conditions and industrial applications. The system is accessible via two doors at each end for access to breakers on the panels and a center-located door for access to receptacles. The model is equipped with bottom-located forklift skid pockets and four top-located lifting eyelets, which allows easy lifting with cable or chain hooks. Four locking casters at the base provides mobility around work sites.
• Certification: All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
• Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
• Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
• Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or

This item is grouped with 45-55KVA Portable Power Distribution Systems.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
