Model:
MT-CT-SC-600V-2000.5-5A-M1SKU:
MT-CT-SC-600V-2000.5-5A-M1Availability:
In StockDocuments:
Spec Sheet
$1,608.12
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

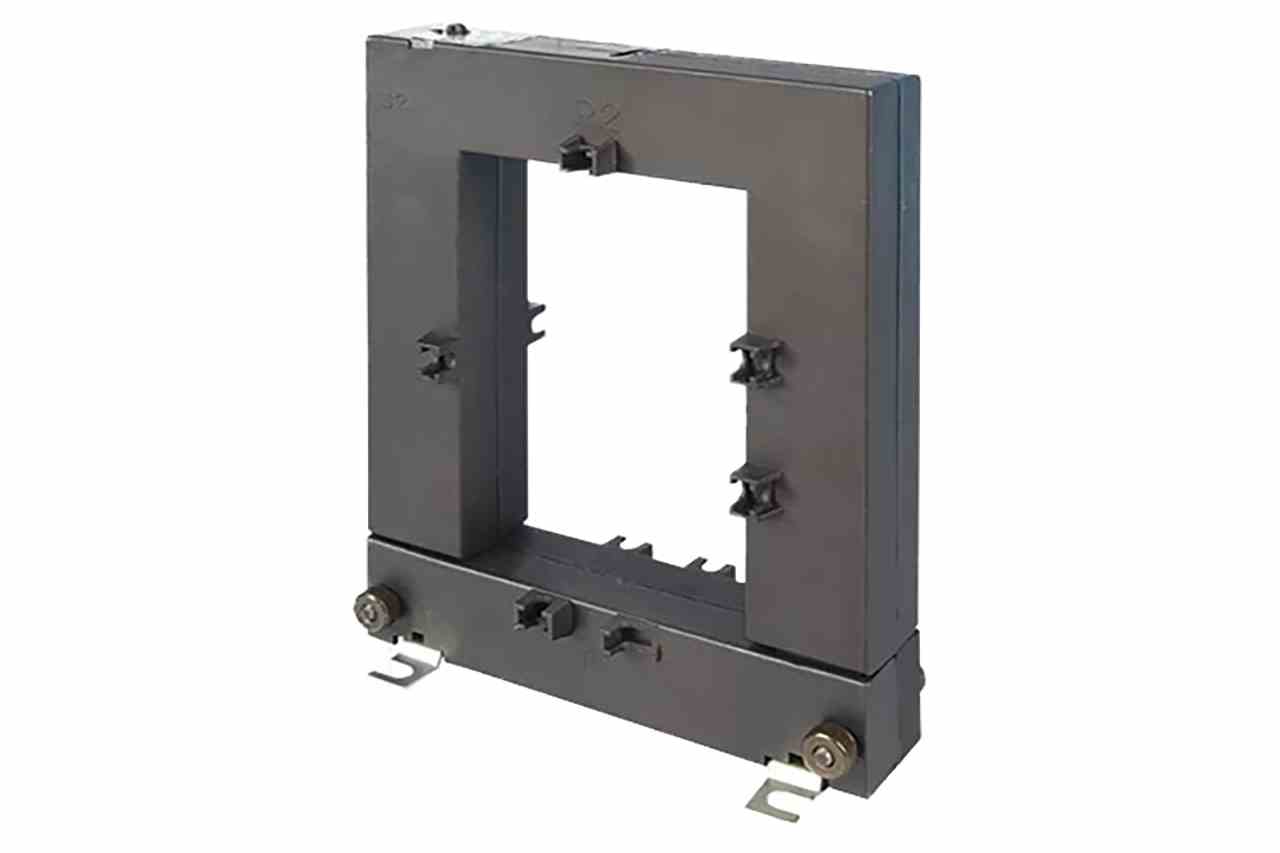

5-Amp Current Transformer - 2000:5 Ratio - Solid Core - Single Phase is a product intended for professional commercial and industrial applications.
Key Specifications
- Type: Solid Core
- Phase: Single Phase
- Rated Frequency: 50 Hz
- Output Current: 5 A
- Nominal Operating Voltage: 600 V
- Voltage: 720 V
- Winding Ratio: 2000:5
- Burden: 10 VA
- Accuracy Class: 5P10
- Insulation Class: E
This item is grouped with 65-75 KVA Industrial Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Accuracy Class
5P10
Burden
10 VA
Enclosure Material
Cast Resin
hort-Time Current
120 kA (1 Sec.)
Isolation Test Voltage
3 kV (1 Min.)
Mounting
Plug-In Metal Feet Compatible with Wall, Base, or Molded Busbar Mounting
Nominal Operating Voltage
600 V
Operating Temperature Range
-5°C to +50°C
Output Current
5 A
Overall Dimensions
7"-H x 5.9"-W x 4.49"-D
Rated Frequency
50 Hz
Relative Humidity
0-90% (Non-Condensing)
Storage Temperature Range
-25°C to +70°C
Thermal Nominal Continuous Current
2000 A
Type
Solid Core
Voltage
720 V
Weight
22 lbs
Winding Ratio
2000:5
Window Size
2.63"-W x 8.25"-H
Technical
Phase
Single Phase
Insulation Class
E
