Model:
PDU-ATS-50A-120.240V-1PH-N4X-M1SKU:
PDU-ATS-50A-120.240V-1PH-N4X-M1Availability:
In StockDocuments:
Spec Sheet
$1,348.15
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

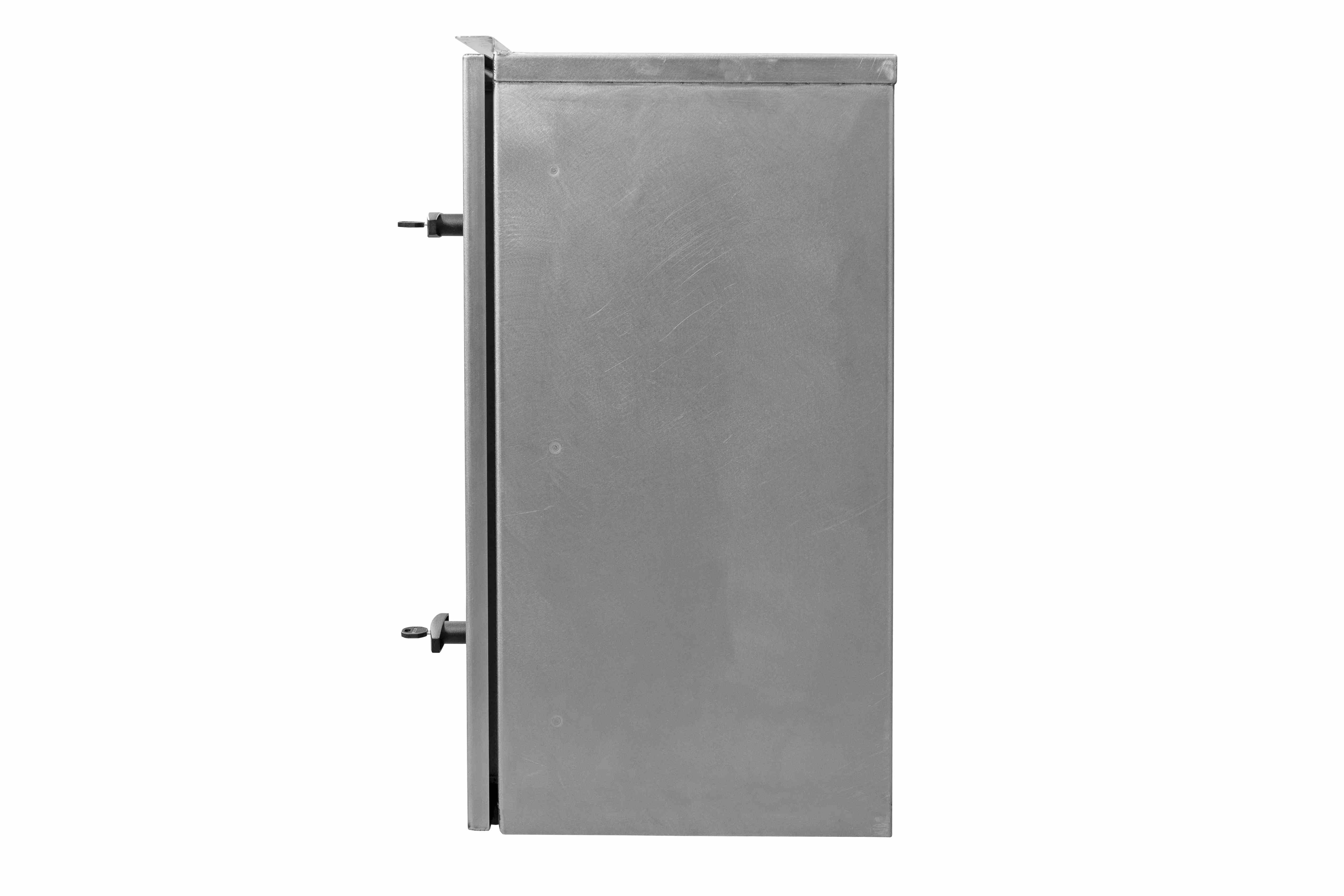

50-amp Automatic Transfer Switch - 120/240V 1PH - Aluminum - NEMA 4X is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Automatic Transfer Switch
- Dimensions: 9.98" x 15.13" x 20.69"
- Weight: 20 lbs
- Voltage: 120/240V 1PH
- Amps: 50
- Load Transition Type (Automatic): Open Transition
- Materials: Aluminum
- Finish: Electrostatically Applied and Baked Powder Paint
- Mount: Wall or Surface, via (4) Screw Holes
- Lug Range: 1/0 - #14
This item is grouped with Power Distribution Accessories and Replacement Parts.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Operating Temp
-20°C to +50°C (-4°F to +122°F) (Recommended)
Dimensions
9.98" x 15.13" x 20.69"
Finish
Electrostatically Applied and Baked Powder Paint
Load Transition Type (Automatic)
Open Transition
Lug Range
1/0 - #14
Materials
Aluminum
Mount
Wall or Surface, via (4) Screw Holes
Unit Type
Automatic Transfer Switch
Voltage
120/240V 1PH
Weight
20 lbs
Technical
Amps
50
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Submittal Spec Sheet 1.02 MB
Dimensional Drawing 244.58 KB
Manual 5.89 MB
Spec Sheet 780.88 KB
Shipping Time Map 424.5 KB
