Spec Sheet
$821.90
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

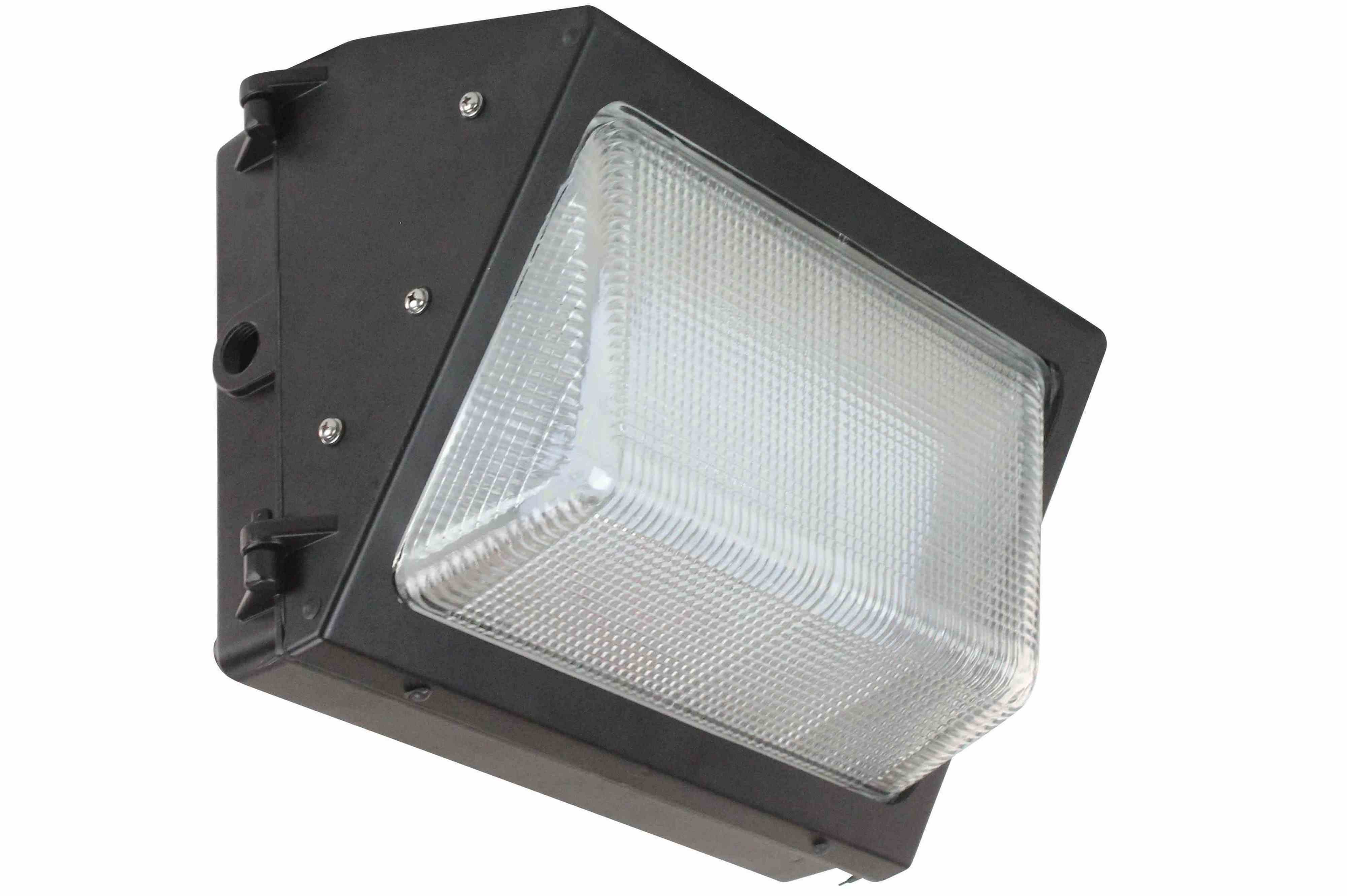

58W Traditional LED Wall Pack - Replaces 400W Metal Halide Fixtures - 48V DC- IP65 - Wall Mount is a product intended for professional commercial and industrial applications.
Key Specifications
- Listing: United States - Canada
- Lamp Type: LED
- Dimensions (Inches): 18.13"-L x 9.38"-W x 9"-H
- Dimensions (CM): 46.05-L x 23.83-W x 22.86"-H
- Weight: 12 lbs
- Voltage: 48V DC
- Watts: 58
- Total Lumens: 6,639
- Luminous Efficacy: 114.47 lm/w
- LED Life Expectancy: 100,000 hours
This item is grouped with LED Spreader Lights.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Temp Range
-40°C to +40°C
Amp draw
1.21A @ 48V
Dimensions (CM)
46.05-L x 23.83-W x 22.86"-H
Dimensions (Inches)
18.13"-L x 9.38"-W x 9"-H
Gasket Materials
Silicone
Housing Materials
Die Cast Aluminum Alloy 2-Part Hinged Housing
Ingress Protection
IP65
LED Life Expectancy
100,000 hours
LED Light Color
4000K or 5000K
Lens Materials
Prismatic Borosilicate Glass Lens
Lighting Configuration
Flood
Listing
United States - Canada
Luminous Efficacy
114.47 lm/w
Mounting
Wall / Flat Surface
Power Efficiency
85%
Total Lumens
6,639
Voltage
48V DC
Watts
58
Weight
12 lbs
Wiring Hub
1/2" NPT Knock-outs
Technical
Color Rendering Index
85
Wiring
Pigtail
Lamp Type
LED
Power Factor
>0.95
