Model:
MT-PCR-3P-480Y-60KVA-480Y-60HZ-M1SKU:
MT-PCR-3P-480Y-60KVA-480Y-60HZ-M1Availability:
In StockDocuments:
Spec Sheet
$74,334.30
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

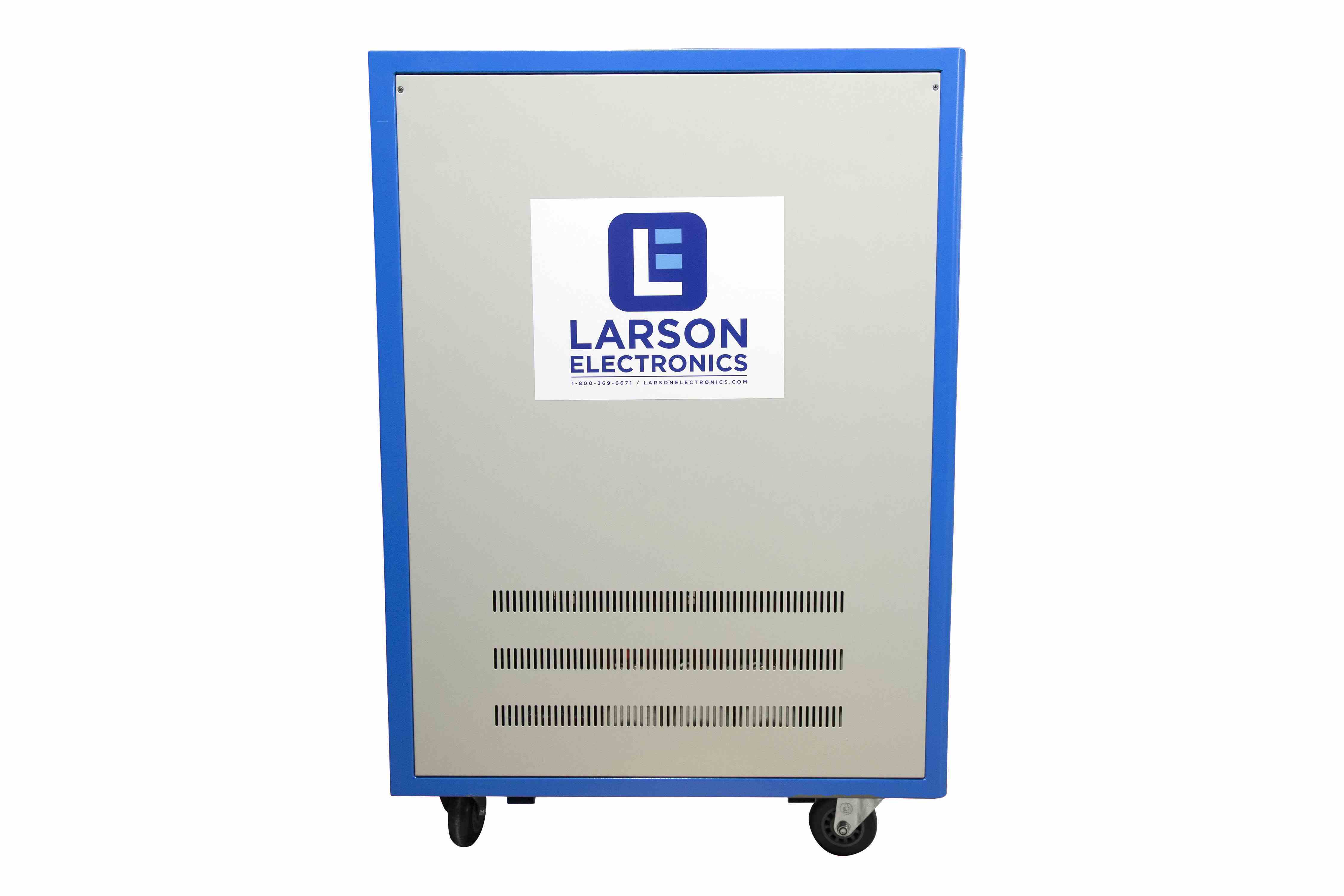

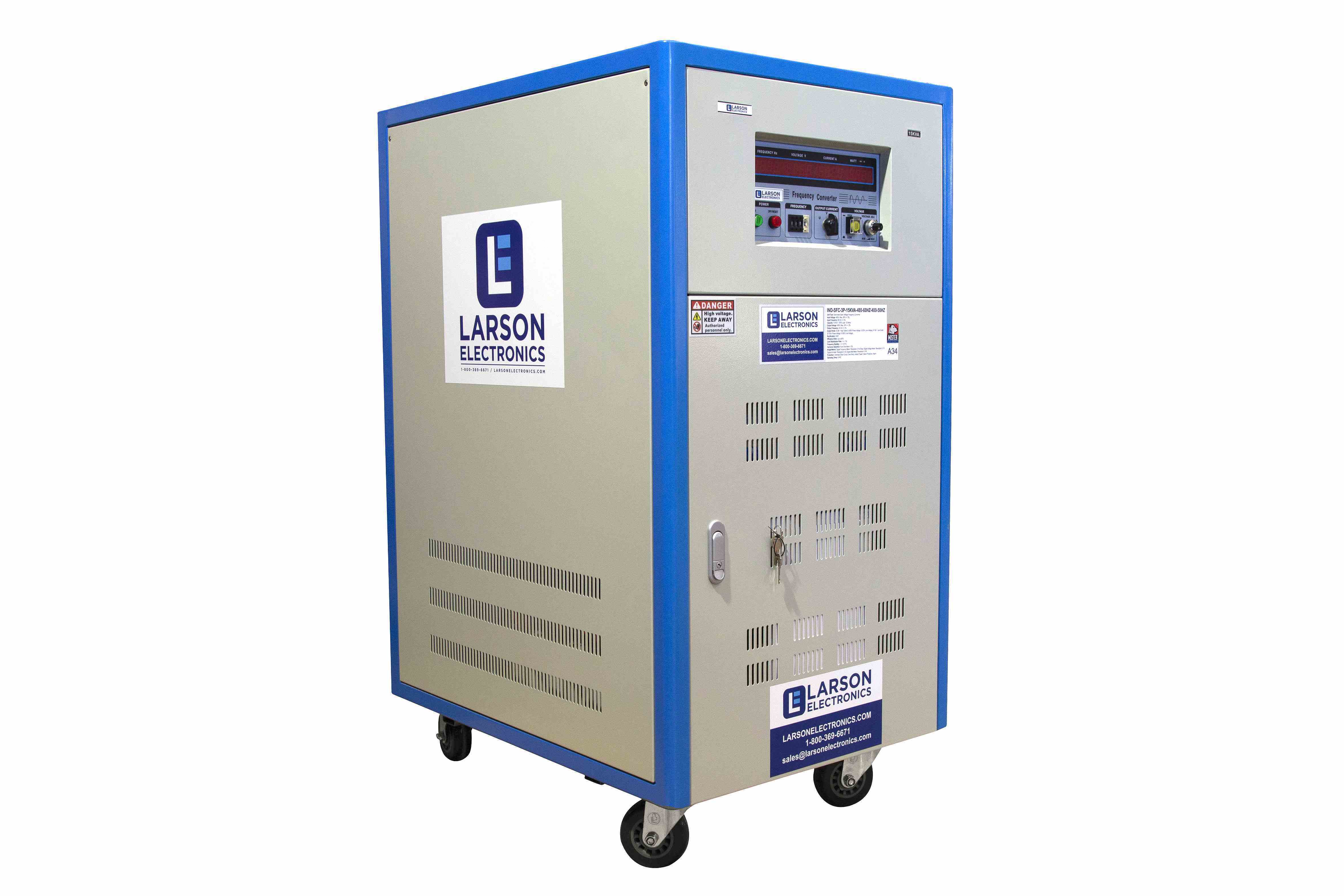

60 KVA Solid-State Voltage Regulator - Power Conditioner - 480Y/277 3PH Wye - Isolates EMI is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Solid-State Voltage Regulator and Power Conditioner
- Dimensions: 39.37" x 31.49" x 70.86"
- Weight: 1,268 lbs
- Input Voltage: 480Y/277 V Wye +/- 10% (188-228V Input Range)
- Input Frequency: 50/60 Hz +/- 510
- Capacity: 60 KVA - 100% Load - 30 Mins
- Output Voltage: 480Y/277 V Wye +/- 1%
- Output Frequency: 60 Hz +/- 1%
- Rectification: IGBT
- Efficiency Ratio: Up to 95%
This item is grouped with Latest Lights and Products.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
4-digit Meters
Digital Frequency Meter - Resolution 0.1Hz/Step; Digital Voltage Meter- Resolution 0.1V; Digital Ammeter- Resolution 0.1A; Digital Watt Meter- Resolution 0.1W
Capacity
60 KVA - 100% Load - 30 Mins
Color
Tan
Dimensions
39.37" x 31.49" x 70.86"
Efficiency Ratio
Up to 95%
Frequency Stability
< +/- 0.01%
Harmonic Distortion
Pure Sine Wave < 2%
Humidity
0-90% (Non-condensation)
Input Frequency
50/60 Hz +/- 510
Load Stabilization Rate
< +/- 1%
Mounting
Mobile Cart w/ Wheels
Operating Temp
0-40°
Output Frequency
60 Hz +/- 1%
Output Voltage
480Y/277 V Wye +/- 1%
Protection
Overload, Short Circuit, Over Temp, Instant Power Failure Protection, Alarm
Rectification
IGBT
Unit Type
Solid-State Voltage Regulator and Power Conditioner
Weight
1,268 lbs
Technical
Input Voltage
480Y/277 V Wye +/- 10% (188-228V Input Range)
