Model:
VFD-1P-240V-7.5HP-22A-DCM-N4XSKU:
VFD-1P-240V-7.5HP-22A-DCM-N4XAvailability:
In StockDocuments:
Spec Sheet
$3,898.02
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

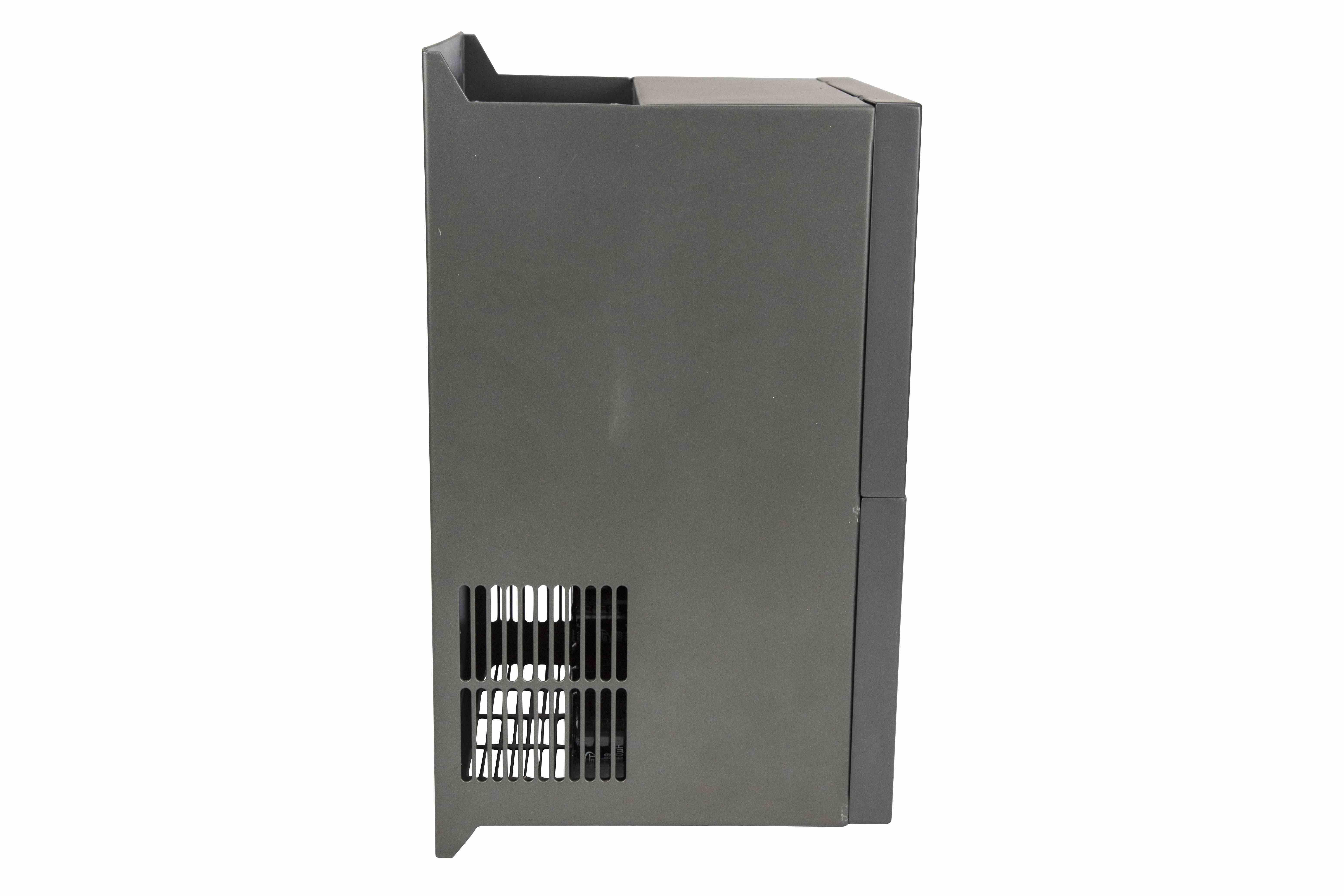

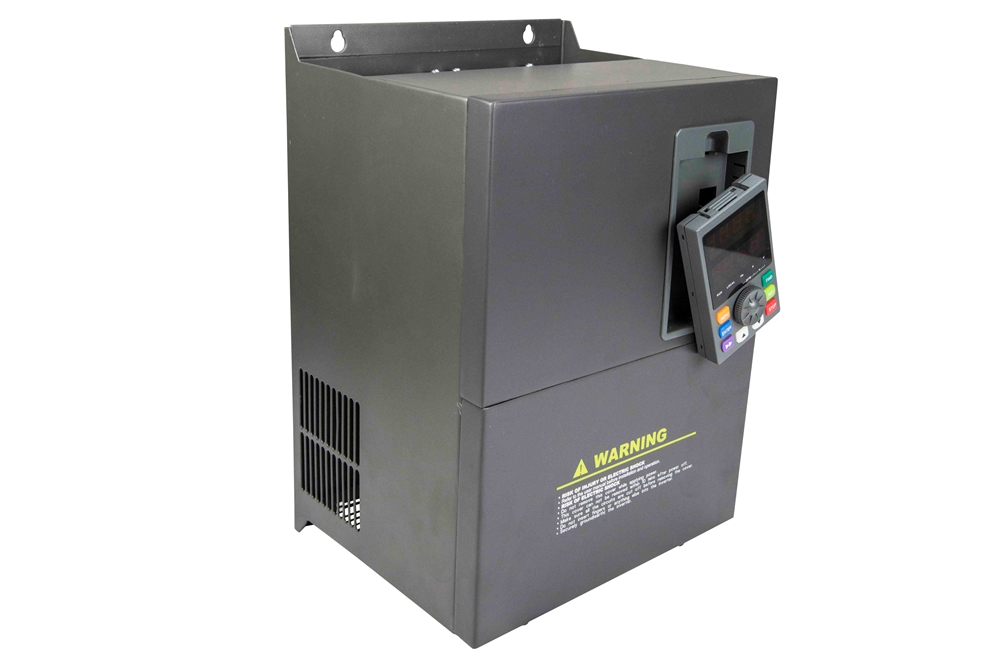

7.5 HP Variable Frequency Device - 240V AC 1PH Input/Output - 22 Amps - NEMA 4X is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Variable Frequency Device
- Dimensions: 12.36" x 6.54" x 6.69"
- Weight: 30 lbs
- Input/Output Voltage: 240V AC 1PH
- Operating Frequency: 0 to 3000 Hz
- HP: 7.5
- Rated Motor Speed: 3600 RPM
- Supported Motor Service Factor: 1.5
- Inputs: 7 on-off programmable digital, 1 high-speed pulse, 2 programmable analog
- Outputs: 1 programmable open collector, 1 analog (open collector or high-speed pulse), 2 relay, 2 analog
This item is grouped with 208V 220V 230V 240V AC Variable Frequency Drives (VFDs).
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Analog Input/Output
2 Input (0~10V or 0/4~20mA), 2 Output (0/4~20mA or 0~10V)
Color
Gray
Dimensions
12.36" x 6.54" x 6.69"
Display
Keypad
Enclosure Rating
NEMA 4X
HP
7.5
Input/Output Voltage
240V AC 1PH
Inputs
7 on-off programmable digital, 1 high-speed pulse, 2 programmable analog
Materials
-
Mounting
Surface
Operating Frequency
0 to 3000 Hz
Operating Temp
–10°C to +40°C
Outputs
1 programmable open collector, 1 analog (open collector or high-speed pulse), 2 relay, 2 analog
Rated Motor Speed
3600 RPM
Supported Motor Service Factor
1.5
Unit Type
Variable Frequency Device
Weight
30 lbs
