Model:
MPD-CW11-TB.100AB-DE75YT-LP-42.R11-M1SKU:
MPD-CW11-TB.100AB-DE75YT-LP-42.R11-M1Availability:
In StockDocuments:
Spec Sheet
$29,734.34
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

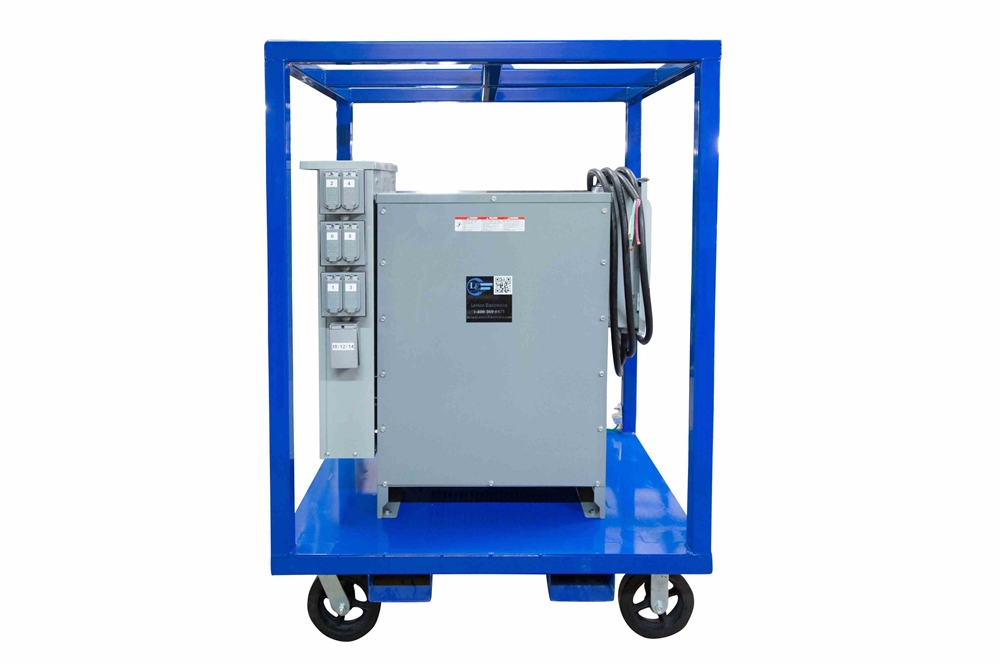

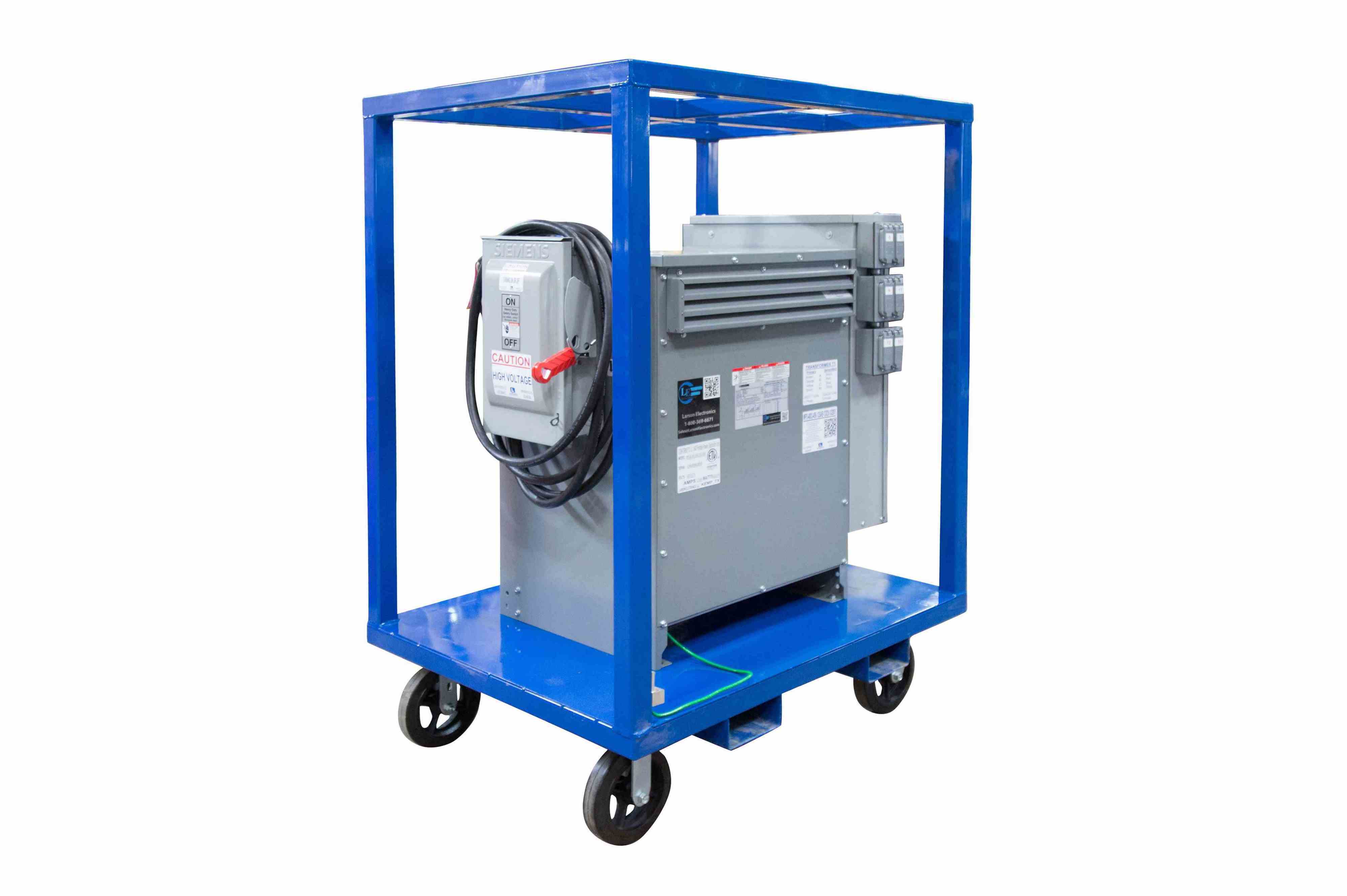

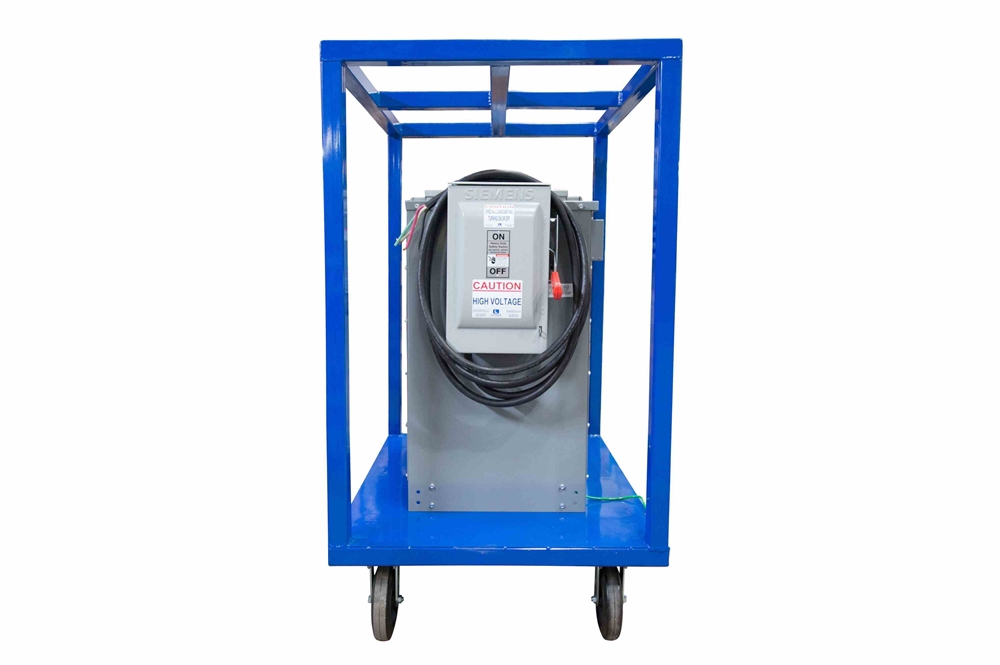

75 KVA Mobile Power Distribution, 480V-208Y/120 3-phase, (42) 20A 1P Breakers is a product intended for professional commercial and industrial applications.
Key Specifications
- Operation: Primary Voltage: 3-phase 480V AC, Delta
- Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
- Certification: All units are built in accordance to NFPA 70 (National Electric Code) and NRTL certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
- Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
- Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or
This item is grouped with Power Distribution Panels with KVA Transformers.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments.
Certification
All units are built in accordance to NFPA 70 (National Electric Code) and NRTL certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request.
Custom Built Systems Available
Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or
Grounding
Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground.
Operation
Primary Voltage: 3-phase 480V AC, Delta
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
One-Line Diagram 94.34 KB
Catalog Page 1.99 MB
ANSI Certificate 1 211.64 KB
Spec Sheet 743.18 KB
Certificate 1 171.96 KB
CE Certificate 202.48 KB
NEC Certificate 147.59 KB
Certificate 5 85.03 KB
Ro HS Certificate 227.13 KB
Wiring Diagram 94.34 KB
CEC Certificate 144.34 KB
MSDS 124 KB
Shipping Time Map 424.5 KB
