Model:
EXP-VFD-3P-220.240-75HP-112A-DCMSKU:
EXP-VFD-3P-220.240-75HP-112A-DCMAvailability:
In StockDocuments:
Spec Sheet
$39,065.72
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

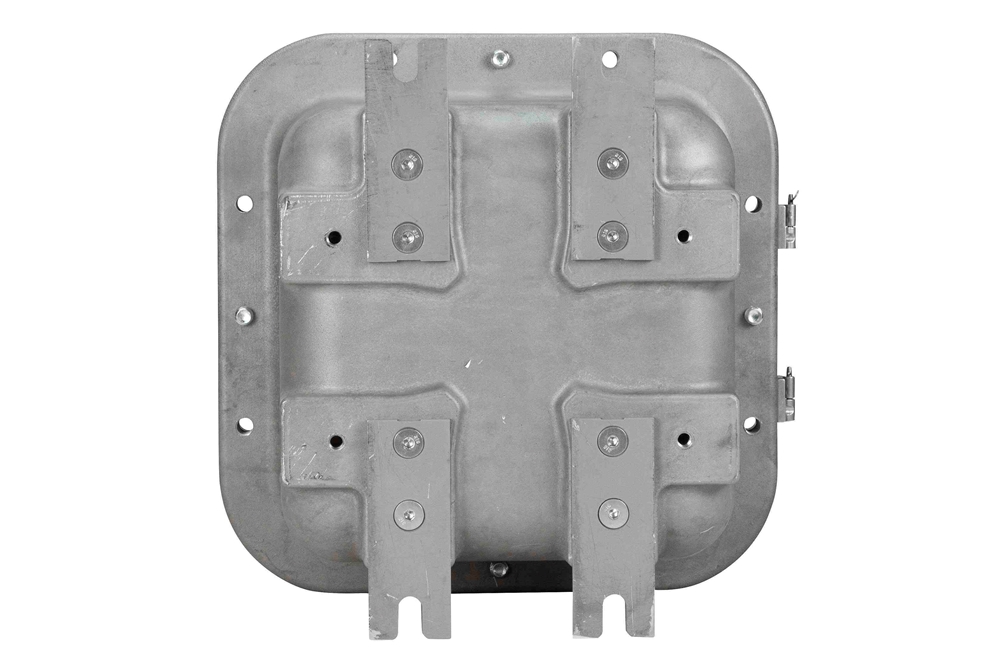

75HP VFD Phase Converter - 220-240V AC 1PH Input/3PH Output - 112 Amps - 55kW - C1D1&2/C2D1&2 is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: 1 Phase Input/3 Phase Output Delta, 3 Wire Variable Frequency Device
- Dimensions: 41.25"L x 29.25"W x 14.40"H
- Weight: 88.18 lb
- Input/Output Voltage: 1 Phase 220-240 V AC/3 Phase AC 0-Input Voltage
- Output Current: 112 Amps
- Operating Frequency: 0 to 400 Hz
- Kilowatts: 55 kw
- HP: 75
- Speed Regulation: 1:100
- Speed Control Accuracy: =±0.5% of rating synchronous speed
This item is grouped with Three Phase Variable Frequency Drives (3PH VFDs).
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Gray
Communication Terminal
RS485 communication interface
Control Mode
V/F Control; Sensorless Vector Control
Dimensions
41.25"L x 29.25"W x 14.40"H
Frequency Precision
Digital setting: 0.01% max, Analog Setting: Max frequency X 0.2% max
Frequency Resolution
Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
HP
75
Input/Output Voltage
1 Phase 220-240 V AC/3 Phase AC 0-Input Voltage
Kilowatts
55 kw
Materials
-
Max Operating Humidity
95% (non condensing)
Mounting
Surface
Operating Frequency
0 to 400 Hz
Operating Temp
–10°C to +40°C
Output Current
112 Amps
Overload Capacity
150% @ 60s, 180% @ 3s
Speed Control Accuracy
=±0.5% of rating synchronous speed
Speed Regulation
1:100
Torque Boost
Automatic torque boost; manual torque boost: 0.1%~30.0%
Unit Type
1 Phase Input/3 Phase Output Delta, 3 Wire Variable Frequency Device
Weight
88.18 lb
