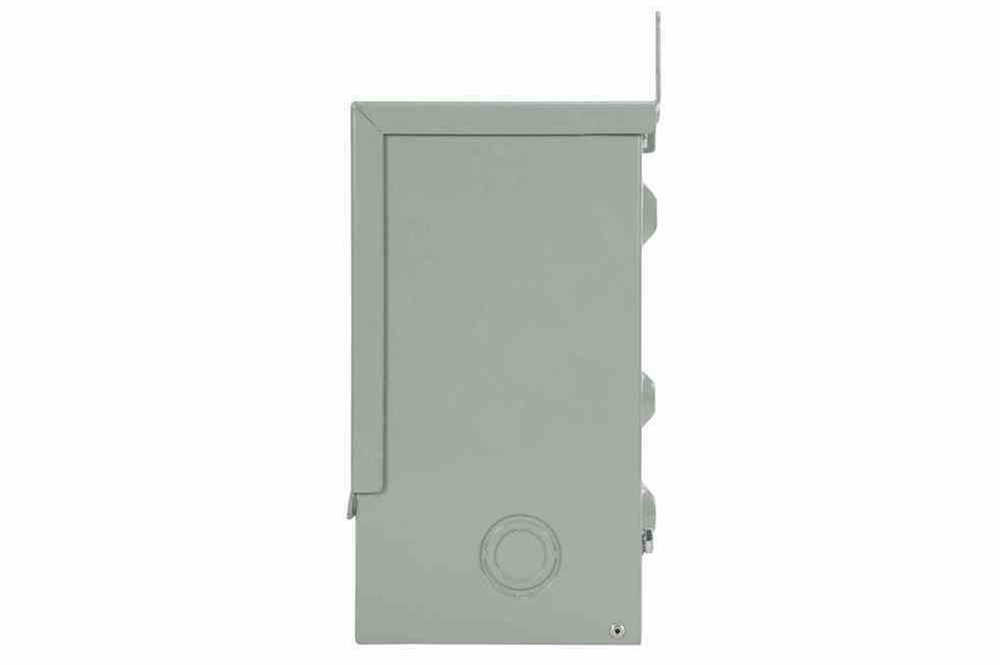

8 kVA Isolation Transformer - 220V Euro (L-N) Primary - 120/240V (L-L-N) Secondary - NEMA 3R - 1 Phase - Fully Potted/Encapsulated

Product Overview

8 kVA Isolation Transformer - 220V Euro (L-N) Primary - 120/240V (L-L-N) Secondary - NEMA 3R - 1 Phase - Fully Potted/Encapsulated is a product intended for professional commercial and industrial applications.

Key Specifications

• Transformer Features: With a transformer rating of 8 kVA, the MT-ISX-FP-1P-220V.EU-8KVA-120.240V-N3R isolation transformer is a single phase unit with a primary voltage of 220V Euro (L-N) single phase. This transformer takes 220V Euro (L-N) and converts it to 120/240V (L-L-N) single phase. This L1+N model is considered European 220 V. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology.
• Benefits: The MT-ISX-FP-1P-220V.EU-8KVA-120.240V-N3R isolation transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations.
• Safety: The MT-ISX-FP-1P-220V.EU-8KVA-120.240V-N3R is a fully potted isolation transformer which means that it provides operators with an increased level of protection against electric shock. An isolation transformer can also suppress electrical noise in sensitive devices and transfer power between two circuits which must not be connected. The MT-ISX-FP-1P-220V.EU-8KVA-120.240V-N3R achieves these safety features by seperating or "isolating" the powered device from the power source and insulation between the primary and secondary power sources.
• Applications: Power supplies for sensitive equipment such as computers, medical devices, or laboratory instruments.

This item is grouped with 7.5 KVA and Below Industrial Transformers.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
