Spec Sheet
$540.12
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

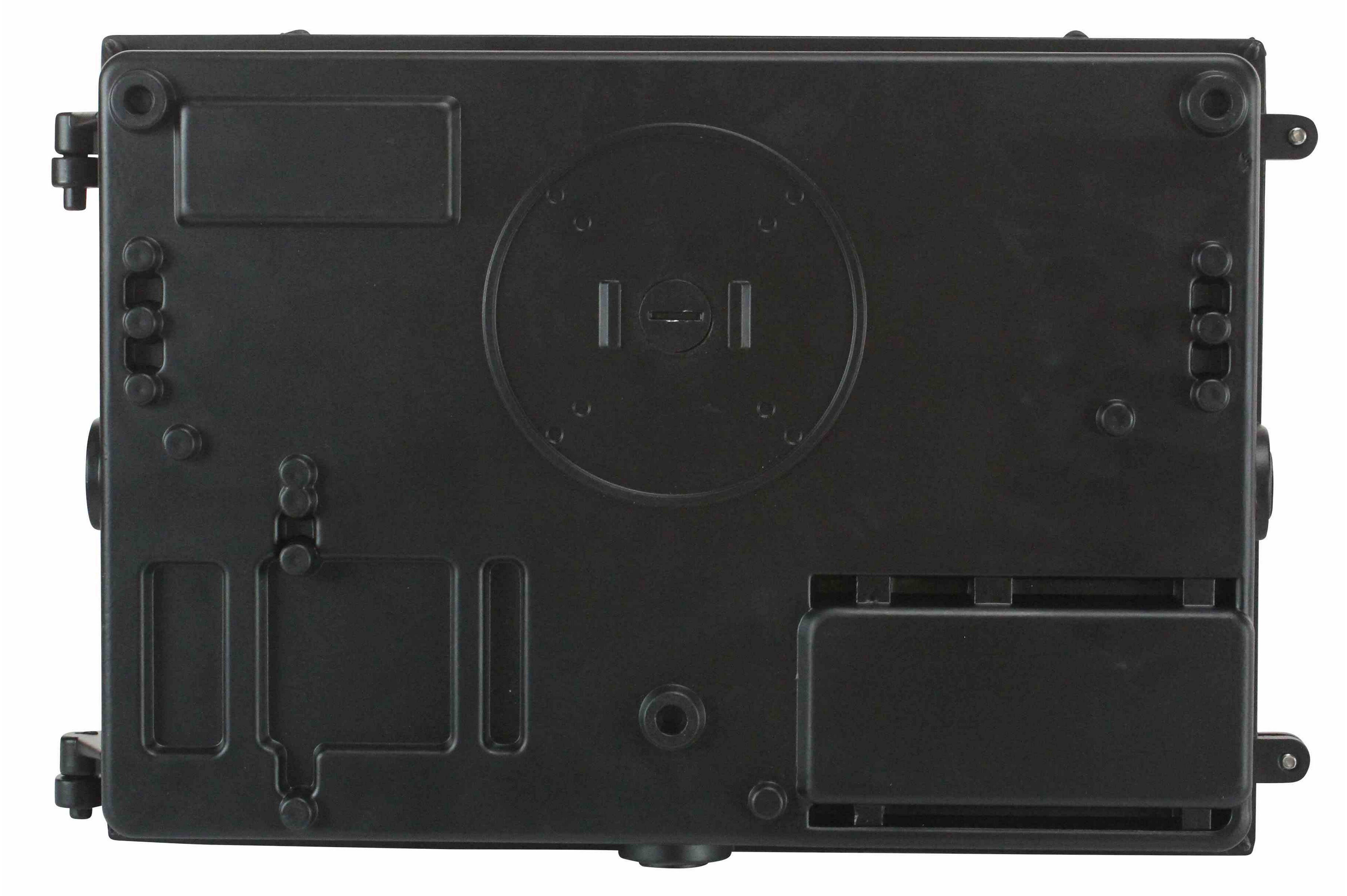

90W Traditional LED Wall Pack - 120-277V AC - IP65 - 10' 16/3 SOOW w/ Gen. Cord Cap - Wall Mount is a product intended for professional commercial and industrial applications.
Key Specifications
- Listing: United States - Canada
- Lamp Type: LED
- Dimensions (Inches): 14.18"-L x 9.45"-W x 7.88"-H
- Dimensions (CM): 26-L x 24-W x 20-H
- Weight: 10.15 Lbs.
- Voltage: 110-277 Volts AC 50/60hz
- Watts: 90
- Total Lumens: 8,100
- Luminous Efficacy: 90 lm/w
- LED Life Expectancy: 100,000 hours
This item is grouped with LED Spreader Lights.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Temp Range
-40°C to +60°C
Amp draw
0.75A @ 120V, 0.375 @ 240V, 0.33 @ 277V
Cord Cap Options
5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist. UK BS1363, Intl. Schuko, Pigtail
Dimensions (CM)
26-L x 24-W x 20-H
Dimensions (Inches)
14.18"-L x 9.45"-W x 7.88"-H
Gasket Materials
Injection Molded Rubber
Housing Materials
Die Cast Aluminum Alloy 2-Part Hinged Housing
Ingress Protection
IP65
LED Life Expectancy
100,000 hours
LED Light Color
2700K, 4500K, or 5600K
Lens Materials
Prismatic Glass Lens
Lighting Configuration
Flood
Listing
United States - Canada
Luminous Efficacy
90 lm/w
Mounting
Wall / Flat Surface
Power Efficiency
85%
Total Lumens
8,100
Voltage
110-277 Volts AC 50/60hz
Watts
90
Weight
10.15 Lbs.
Wiring Hub
1/2" NPT Knock-outs
Technical
Color Rendering Index
>75
Wiring
10` 16/3 SOOW w/ General Area Cord Cap
Lamp Type
LED
Power Factor
>0.95
