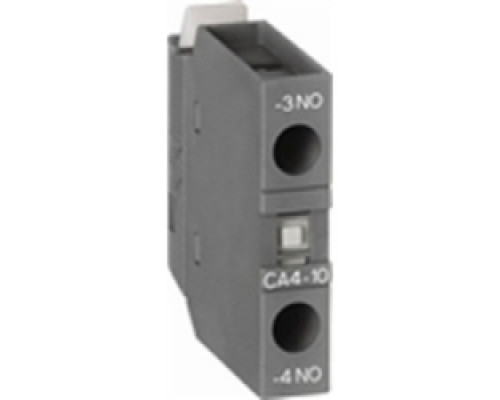

ABB CA4-10 CA4-10 Auxiliary Contact Block

Applications

For Block Contactors. The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits.

Specification Description

Contact Configuration: 1 NO (Auxiliary)
Wattage: DC-13: 144 W At 24 V, 134 W At 48 V, 72 W At 72 V, 60 W At 110/220/400/600 V, 69 W At 125 V, 68 W At 250 V, 65 W At 500 V
Connection: Screw Terminal
Wire stripping length: 10 mm
Wire Size: Rigid: (1 Or 2) 1 - 2.5 mm2, Flexible With Ferrule: (1 Or 2) 0.75 - 2.5 mm2, Flexible With Insulated Ferrule: (1) 0.75 - 2.5 mm2, Flexible With Insulated Ferrule: (2) 0.75 - 1.5 mm2
Voltage Rating: 24 - 690 V
Number Of Poles: 4
Tightening Torque: 1.2 N-m
Insulation Voltage: 690 V (IEC 60947-5-1 And VDE 0110), 600 V (UL/CSA)
Operating Current: AC-15: 6 A At 24/127 V, 4 A At 220/240 V, 3 A At 400/440 V, 2 A At 500/690 V, DC-13: 6 A At 24 V, 2.8 A At 48 V, 1 A At 72 V, 0.55 A At 110/125 V, 0.27 A At 220/250 V, 0.15 A At 400 V, 0.13 A At 500 V, 0.1 A At 600 V
Impulse Withstand Voltage: 6 kV

Tech Info

CE, GOST Certified, RoHS Compliant
