Model:
HAL-MTPC-LD-RB-208V-40HP-30HP-N3RSKU:
HAL-MTPC-LD-RB-208V-40HP-30HP-N3RAvailability:
In StockDocuments:
Spec Sheet
$15,209.59
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview
C1D2 Hazloc Rotary Phase Converter,30HP Easy Load, 208V 1PH to 3PH, 90.8A Output, 40HP Idler is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Rotary Phase Converter
- Phase Conversion: Single Phase to Three Phase
- Kilowatt Rating: 29.8 KW
- Kilo Volt-Amp Rating: 40 KVA
- Idle Motor Horse Power: 40 HP
- Single Phase Voltage Input: 208V
- Minimum Fuse/Circuit Breaker Size: 60
- Maximum Fuse/Circuit Breaker Size: 200
- Minimum Wire (Input) to Converter: 1/0 AWT
- Minimum Electrical Service Required: 50 KVA
This item is grouped with Single Phase to Three Phase Converters for Easy Motor Loads.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Natural Gray
Dimensions
-
Idle Amps
-
Idle Motor Horse Power
40 HP
Kilo Volt-Amp Rating
40 KVA
Kilowatt Rating
29.8 KW
Maximum Fuse/Circuit Breaker Size
200
Maximum Output Amps
110A
Maximum Resistive Amps
56A
Maximum Single Motor Load HP
30 HP
Minimum Electrical Service Required
50 KVA
Minimum Fuse/Circuit Breaker Size
60
Minimum Wire (Input) to Converter
1/0 AWT
Minimum Wire to Device Load
3 AWG
Optimal Output Amps
90.8A
Phase Conversion
Single Phase to Three Phase
Recommended Combined HP
30 HP
Service Load Type
Easy motor loads
Shipping Dimensions
-
Shipping Weight
- lbs
Single Phase Voltage Input
208V
Three Phase Voltage Output
208
Unit Type
Rotary Phase Converter
Voltage Balance
2-5%
Weight
- lbs
Technical
Form Factor

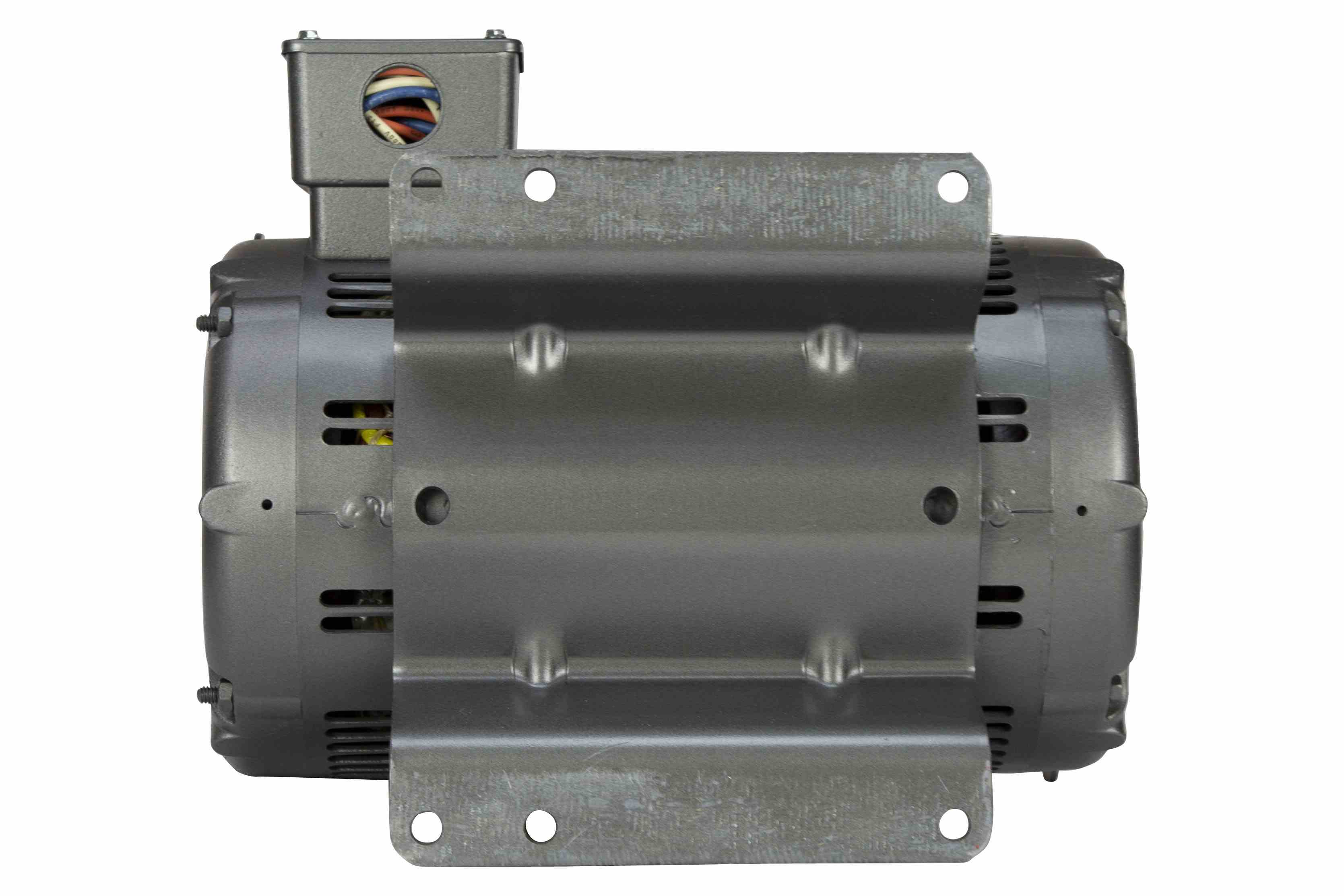

Rectangular Enclosure, Cylindrical Idler w/ Four Legs
