Spec Sheet
$999.99
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.

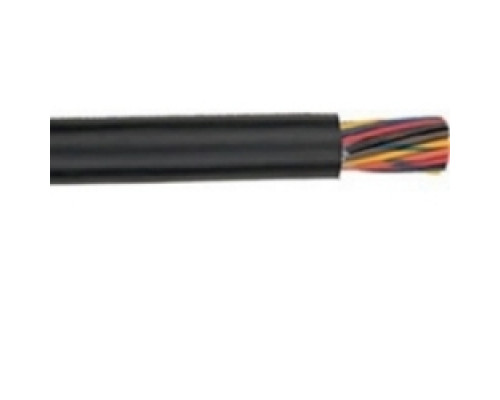

The COLEMAN CABLE 31405 18/14 Stranded Type SEOW Flexible Power Cable is rated for 600 volts and meets NEC Article 400 standards. It features a bare copper conductor with thermoplastic elastomer (TPE) insulation, supporting continuous temperatures up to 105C. This control cable is suitable for portable control equipment, motor control, stage lighting, and other general use industrial applications.
Its design offers resistance to abrasion, gas, oil, chemicals, water, ozone, and solvents. The cable remains flexible in temperatures ranging from -50C to 105C and is approved for submersion in water. All components are recyclable and safe for landfill disposal.
Technical
Conductor Count
14 CONDUCTOR
Conductor Material
BARE COPPER
Conductor Size
18 AWG
Conductor Type
STRANDED
Earth/Ground Wires
NO
Insulation Material
TPE-THERMOPLASTIC ELASTOMER
Jacket Material
TPE-THERMOPLASTIC ELASTOMER
Product Type
SEOOW
RoHS Compliant
YES
Screen/Shield
UNSHIELDED
Standards
UL/CSA
Voltage Range
600V
