Spec Sheet
$18,720.54
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

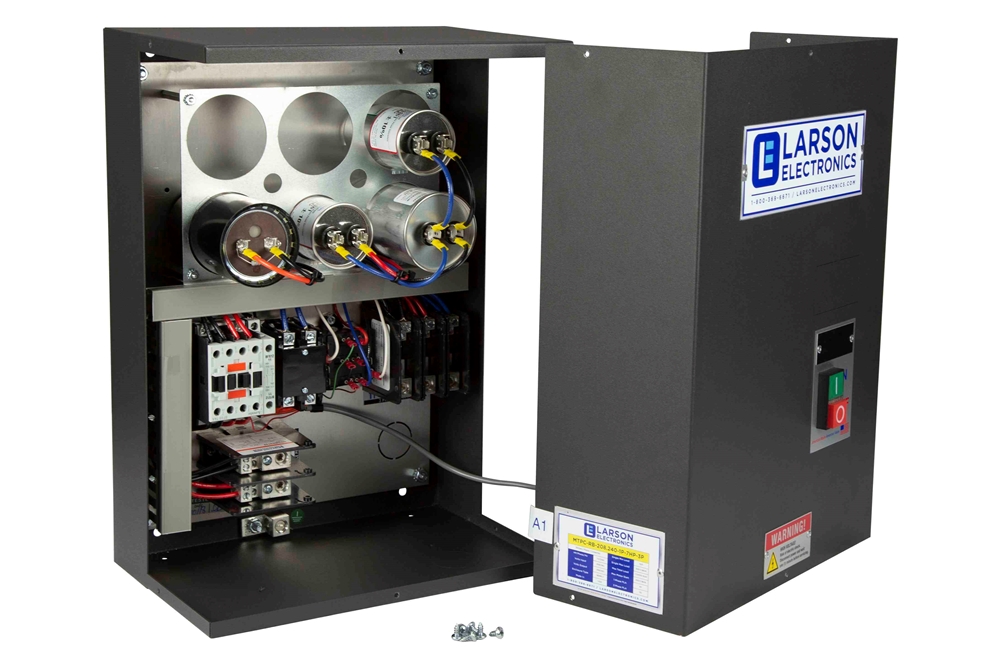

Digital Phase Converter for 3HP Hard Loads, 230V 1PH to 3PH, 11 Amps Output, NEMA 3R is a product intended for professional commercial and industrial applications.
Key Specifications
- Unit Type: Digital Phase Converter
- Phase Conversion: Single Phase to Three Phase
- Stand-by Power Consumption: 60 W
- Kilo Volt-Amp Rating: 4.5 kVA
- Rated HP: 3 HP
- Input Voltage Range: 187 - 260 V
- Output Voltage: Equal to Input
- Maximum Steady-State Output: 11 A
- Maximum AC Input Current: 19
- Full Load Energy Loss: 205 BTU/hr
This item is grouped with Single Phase to Three Phase Converters for Hard Motor Loads.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Color
Natural Gray
Dimensions
17.88"-H x 13.25"-W x 10.50"-D
Efficiency
98.7%
Full Load Energy Loss
205 BTU/hr
Input Voltage Range
187 - 260 V
Kilo Volt-Amp Rating
4.5 kVA
Max Overload
Class 4
Maximum AC Input Current
19
Maximum Steady-State Output
11 A
Minimum Wire (Input) to Converter
1 AWG
On/Off Switch
Yes
Output Voltage
Equal to Input
Phase Conversion
Single Phase to Three Phase
Phase-to-Phase Voltage Balance
< 2%
Rated HP
3 HP
Recommended Circuit Breaker
30 A
Service Load Type
Hard Motor Loads
Shipping Dimensions
-
Shipping Weight
-
Stand-by Power Consumption
60 W
Three Phase Voltage Output
230 V
Unit Type
Digital Phase Converter
Weatherproof Rating
NEMA 3R
Weight
19 lbs
Technical
Form Factor
Rectangular Enclosure, Cylindrical Idler w/ Four Legs
