Spec Sheet
$4,289.53
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

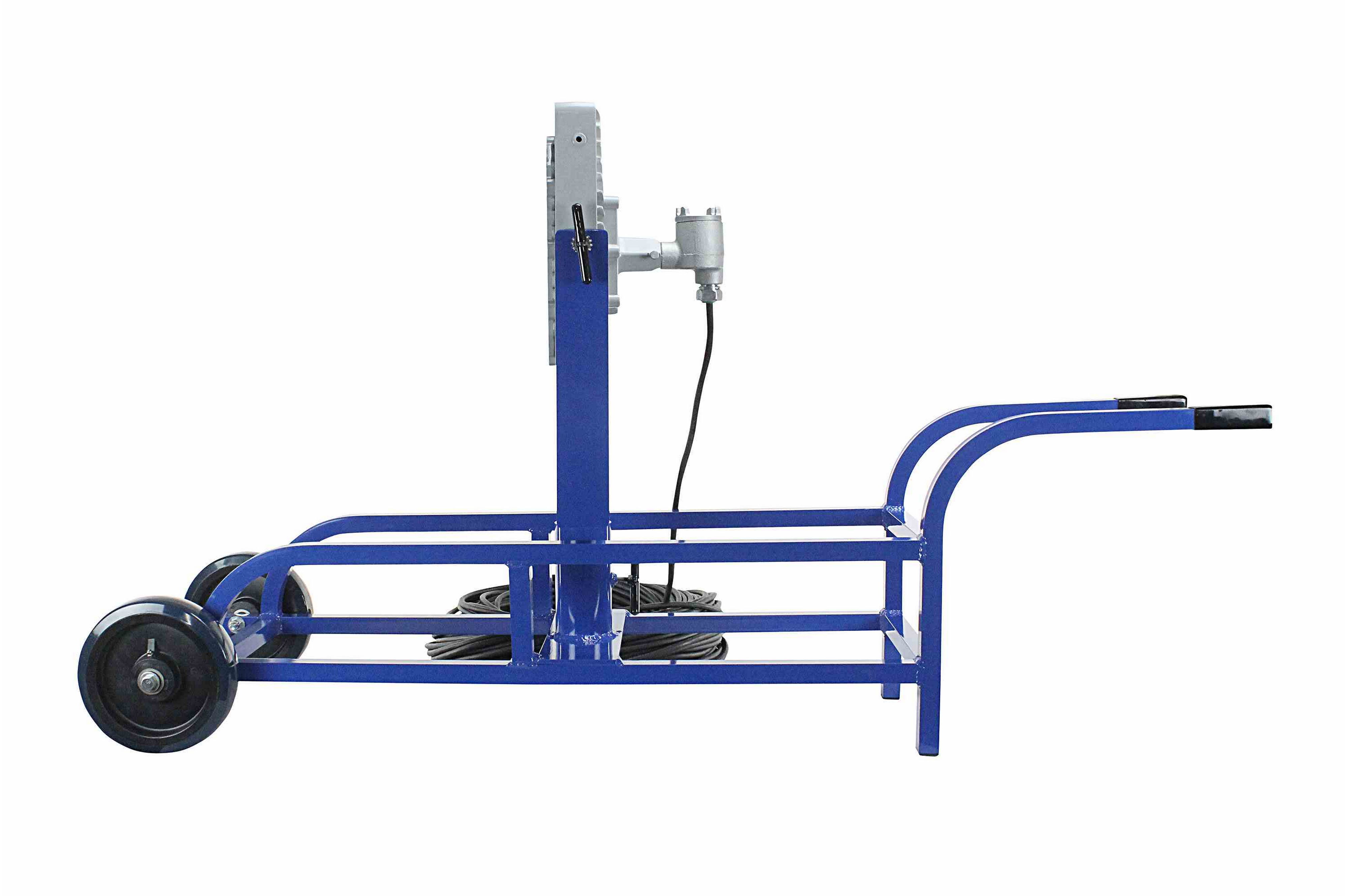

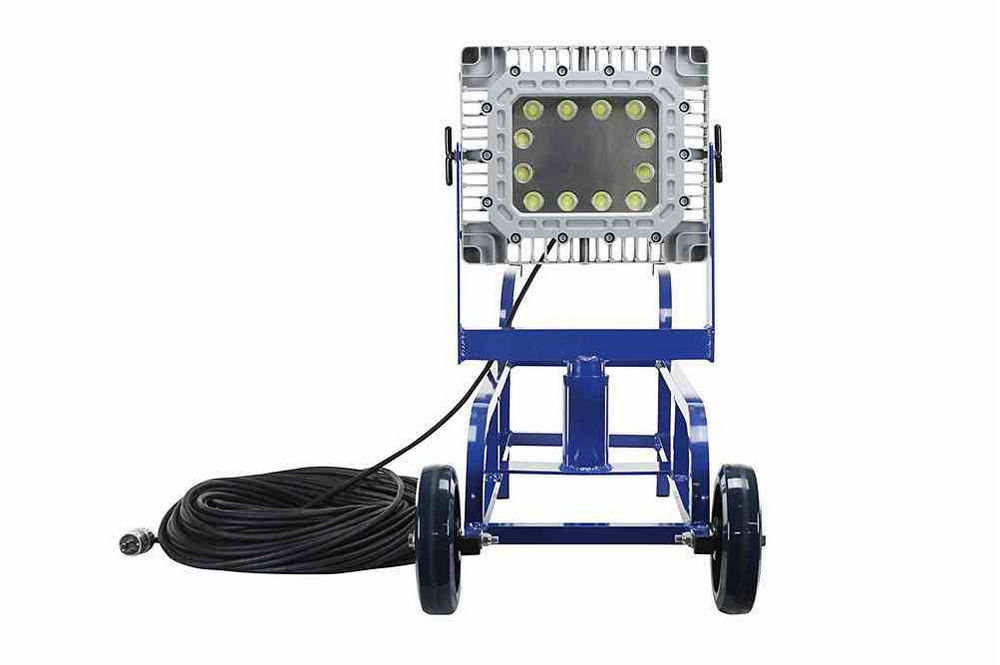

Explosion Proof LED Tank Light - 21,000 Lumens LED - Wheelbarrow Cart - 250' Cord - Class I Div 1 is a product intended for professional commercial and industrial applications.
Key Specifications
- Listing: United States & Canada
- Lamp Type: Cree
- Dimensions: 14"-W 16"-H 5"-D- Light Head
- Weight: 75 Lbs
- Voltage: 120-277V AC 50/60Hz
- Total Watts: 150 watts
- Total Lumens: 21,000
- Luminous Efficacy: 140 Lm/W
- Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
- Lamp Life: 60,000+ Hours
This item is grouped with Explosion Proof Lighting.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Operating Temp Range
-50° C to +65°C
Amperage
1.25A @ 120V, 0.63 @ 240V, 0.54 @ 277V
Beam Angle
60°, 125°, or 140°
Beam Lux
8500@ 1 Meter 1250@ 3 Meters
Cart Material
Non-Sparking Aluminum Tubing w/ Rubber Casters
Cord Cap
15A 5-15P, 20A 5-20P, 20A 6-20P
Dimensions
14"-W 16"-H 5"-D- Light Head
Gasket Material
Silicone
Lamp Housing Material
Copper Free Cast Aluminum
Lighting Configuration
Flood Pattern
Listing
United States & Canada
Luminous Efficacy
140 Lm/W
Mounting
Non-Sparking Wheeled Aluminum Cart
Operating Temp Rating
T5
Power Efficiency
>95%
Total Lumens
21,000
Total Watts
150 watts
Voltage
120-277V AC 50/60Hz
Weight
75 Lbs
Technical
Color Rendering Index
>75 CRI
Color Temp
5600K, 5000K, 4500K, 4000K, 3500K, 3000K, 2700K, or 6500K
Lamp Life
60,000+ Hours
Warranty
Yes - 5 Year - 10 Year Warranty Available
Wiring
250` 16/3 SOOW Cable w/ Explosion Proof Cord Cap
Lamp Type
Cree
Power Factor
0.992
Lens Material
Hardened Borosilicate Glass
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Manual 5.88 MB
NEC Certificate 337.52 KB
Spec Sheet Spanish 269.81 KB
Certificate 3 222.25 KB
Certificate 1 208.24 KB
Ro HS Certificate 226.85 KB
Certificate 2 212.05 KB
Submittal Spec Sheet 3.83 MB
Wiring Diagram 200.94 KB
CEC Certificate 1.31 MB
MSDS 124.63 KB
Dimensional Drawing 376.57 KB
CE Certificate 201.95 KB
Spec Sheet 697.98 KB
Shipping Time Map 424.5 KB
