Model:
EPPB-3P4W-208V-100AMB-18CKT-MOD1SKU:
EPPB-3P4W-208V-100AMB-18CKT-MOD1Availability:
In StockDocuments:
Spec Sheet
$18,670.82
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

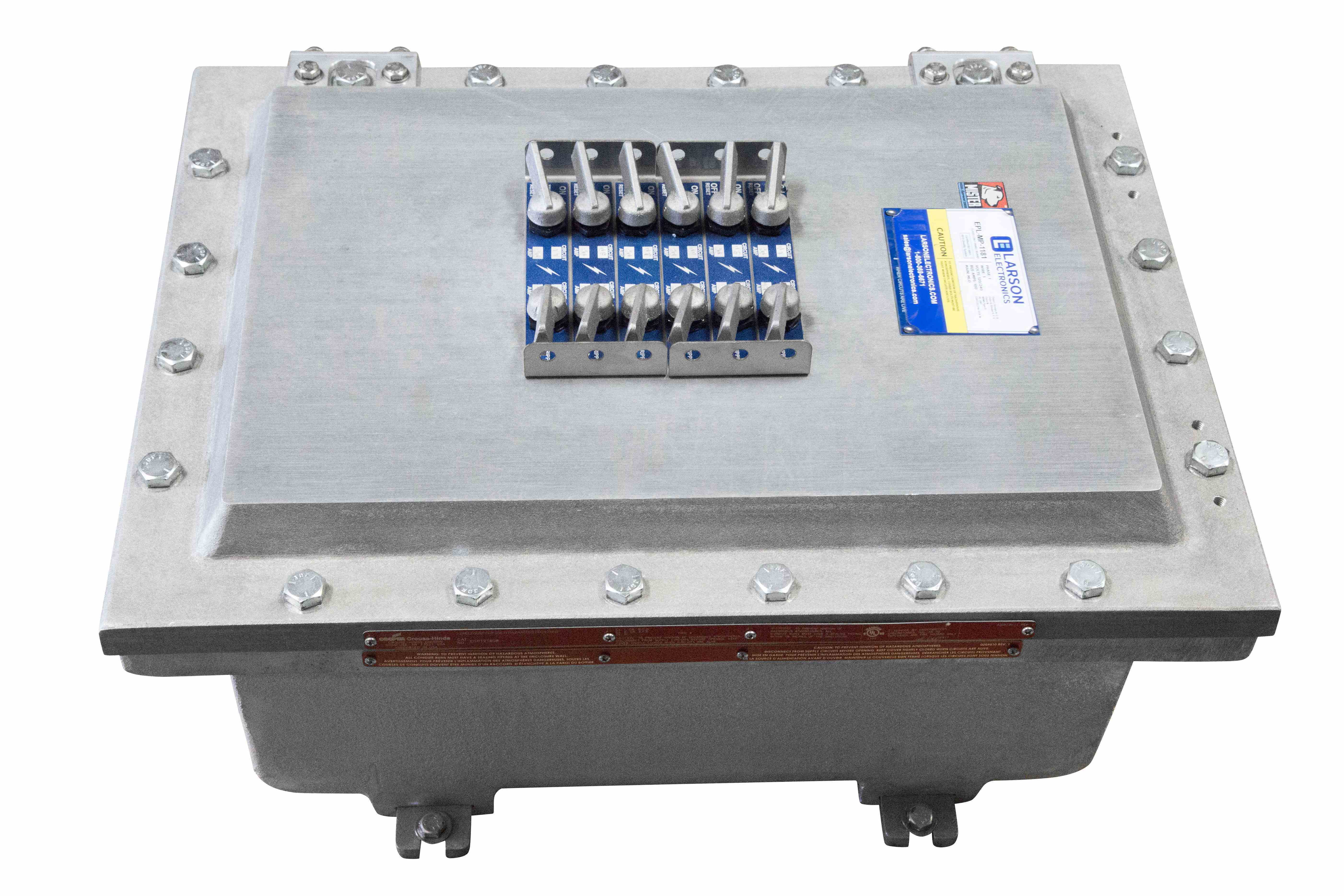

Explosion Proof Panelboard - C1D1 - 208Y/120V, 3PH - (15) Breakers - (16) Hubs is a product intended for professional commercial and industrial applications.
Key Specifications
- Listing: United States, Canada
- Unit Type: Explosion Proof Lighting Panelboard
- Dimensions: 45 3/8" x 33" x 16 7/8"
- Weight: 250 lbs
- Voltage: 208Y/120V AC, 3PH
- Panel Type: Main Circuit Breaker
- Main Panel Amp Rating: 100 Amps
- Circuit Panel: 18
- Breakers: (3) 30A 1P [125V], (11) 20A 1P [125V], (1) 15A 1P [125V]
- Neutral Terminal Strip: 20 Ports
This item is grouped with Explosion Proof Lighting.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Breakers
(3) 30A 1P [125V], (11) 20A 1P [125V], (1) 15A 1P [125V]
Cable Glands
(16)
Circuit Panel
18
Conduit Configuration
(1) 2" NPT [Centered] + (2) 1/2" NPT [Left/Right] @ North Side, (3) 3/4" NPT @ East Side, (7) 1/2" NPT + (2) 3/4" NPT + (1) 1" NPT @ South Side
Dimensions
45 3/8" x 33" x 16 7/8"
Grounding Terminal Strip
20 Ports
Hub Sizes
(1) 2" NPT, (1) 1" NPT, (5) 3/4" NPT, (9) 1/2" NPT
Listing
United States, Canada
Main Panel Amp Rating
100 Amps
Materials
Copper-free Aluminum
Mount
Wall or Surface
Neutral Terminal Strip
20 Ports
Panel Type
Main Circuit Breaker
Unit Type
Explosion Proof Lighting Panelboard
Voltage
208Y/120V AC, 3PH
Weight
250 lbs
Reviews: 0
There are no reviews for this product.
Questions: 0
No questions about this product.
Wiring Diagram 257.42 KB
Submittal Spec Sheet 1.93 MB
Dimensional Drawing 226.73 KB
Spec Sheet 1.47 MB
Shipping Time Map 424.5 KB
