Spec Sheet
$14,865.95
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

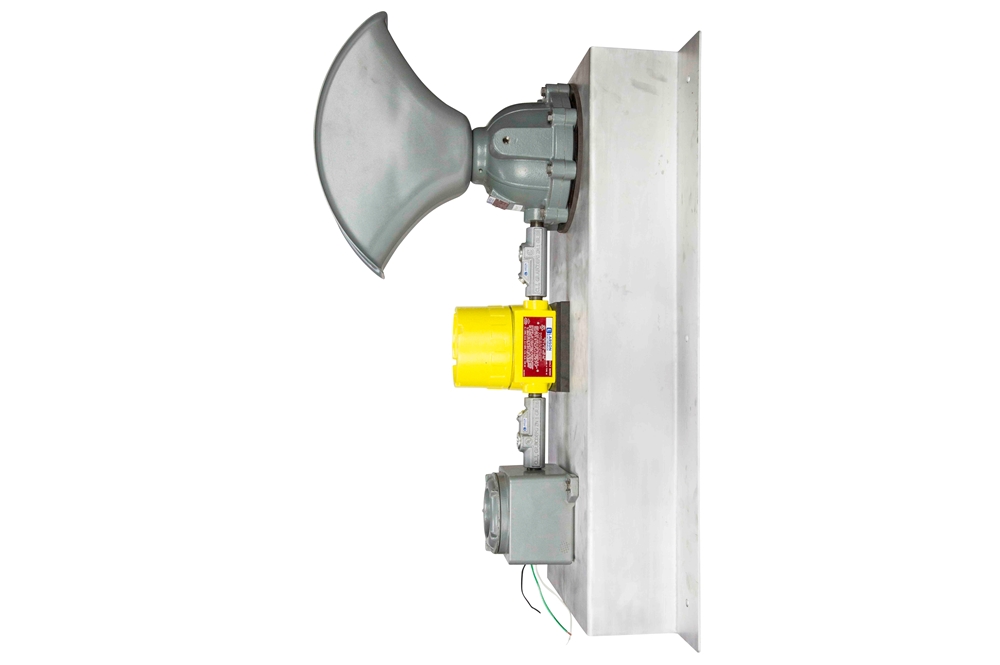

Explosion Proof Toxic Gas Sensor w/ Audible Horn - Propane/Butane - C1D1 - Timed Adjustment is a product intended for professional commercial and industrial applications.
Key Specifications
- Horn: The EPL-TL-PA-AT-GSPB is equipped with an explosion proof horn. Attached to the far end of the base, this audible horn provides operators with up to 8 different tones that can reach a peak output of 110 dBA, powerful enough to be heard over industrial operations. The explosion proof audible alarm setup sounds a unique tone per user setting.
- Toxic Gas Sensor: A robust toxic gas sensor actively detects hydrocarbons for propane and butane in the flammable environment, with +/- 10 percent accuracy. This component features three programmable internal alarm relays for local alarms and an LCD display for direct configuration. Internal data logger provides storage and recall of gas measurements. Four magnetic switches at the front of the transmitter is available for controls. Operators may set a 4-digit password to deter tampering.
- Wiring/Mounting: The EPL-TL-PA-AT-GSPB comes with a 3/4" NPT conduit access hub for completing wiring connections. Mounting is provided by a heavy gauge aluminum base with predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. Power is provided by individual conductors to allow independent operation of each tone combination. Operators can tap the C1D1 junction box in order to connect to a power source.
- Applications: Hazardous locations, chemical processing, flammable work sites, semiconductor plants, refineries, plastics manufacturing, agricultural sites, safety systems and more.
This item is grouped with Class Rated Signals, Alarms, and Systems.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
Hazardous locations, chemical processing, flammable work sites, semiconductor plants, refineries, plastics manufacturing, agricultural sites, safety systems and more.
Horn
The EPL-TL-PA-AT-GSPB is equipped with an explosion proof horn. Attached to the far end of the base, this audible horn provides operators with up to 8 different tones that can reach a peak output of 110 dBA, powerful enough to be heard over industrial operations. The explosion proof audible alarm setup sounds a unique tone per user setting.
Toxic Gas Sensor
A robust toxic gas sensor actively detects hydrocarbons for propane and butane in the flammable environment, with +/- 10 percent accuracy. This component features three programmable internal alarm relays for local alarms and an LCD display for direct configuration. Internal data logger provides storage and recall of gas measurements. Four magnetic switches at the front of the transmitter is available for controls. Operators may set a 4-digit password to deter tampering.
Wiring/Mounting
The EPL-TL-PA-AT-GSPB comes with a 3/4" NPT conduit access hub for completing wiring connections. Mounting is provided by a heavy gauge aluminum base with predrilled holes designed to be bolted to walls and flat surfaces for permanent and secure attachment. Power is provided by individual conductors to allow independent operation of each tone combination. Operators can tap the C1D1 junction box in order to connect to a power source.
