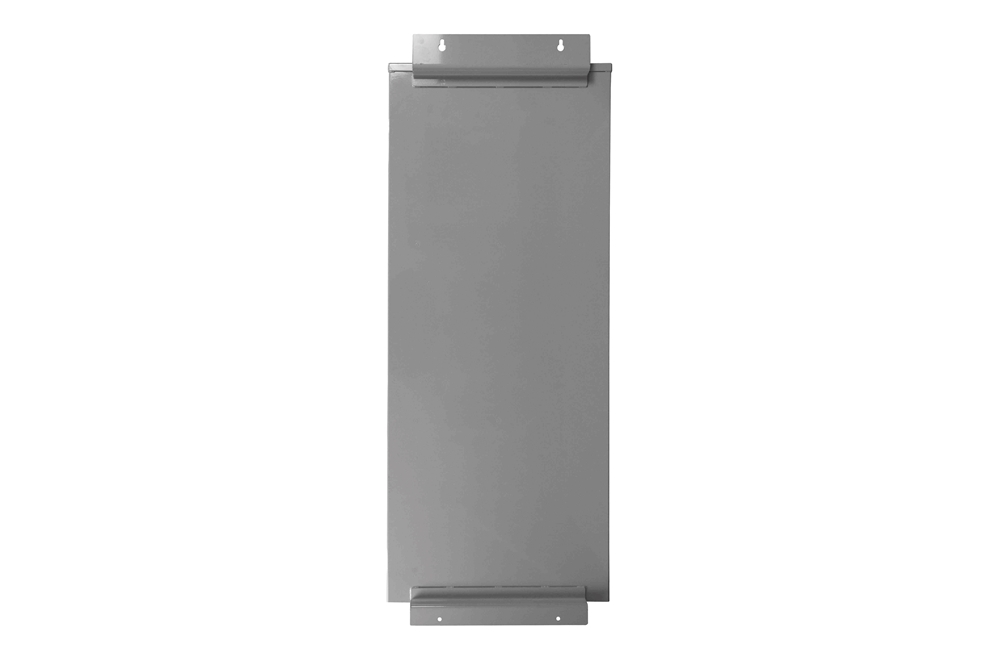

Fused Disconnect Switch - 1500V DC Rated, 2-Pole, (3) 1000A Fast-Acting Battery Energy Storage-Duty Fuses, Wall Mount/NEMA 3R

Product Overview

Fused Disconnect Switch - 1500V DC Rated, 2-Pole, (3) 1000A Fast-Acting Battery Energy Storage-Duty Fuses, Wall Mount/NEMA 3R is a product intended for professional commercial and industrial applications.

Key Specifications

• Operation: The disconnect switch features a lockable door with a permanently attached operating handle for manual disconnection. A dead front safety cover shields operators from live parts and fuses. Ventilation allows for inspection while maintaining safety.
• Fuse Protection: This disconnect is fitted with fast-acting fuses selected specifically for battery energy storage system duty, rated for the elevated available fault current characteristic of battery sources relative to PV source-circuit fuses of the same voltage and current class. The fuse block accommodates this battery-duty fuse type at the disconnect's full 1500V DC / 1000A rating.
• Enclosure Design: The disconnect switch is protected by an 11GA sheet steel enclosure with ANSI 49 grey finish. A ventilated design promotes natural cooling and improves performance. The enclosure is NEMA 3R rated for protection against water, moisture and debris. This rating allows the fused disconnect to be used in indoor and outdoor areas.
• Certification: NRTL Listed to UL 98B - Enclosed & Dead-Front Switches for DC. Fuse duty is rated for the elevated available fault current characteristic of battery sources, distinct from PV-listed fuse ratings of the same voltage and current class.
• Mount: Operators can mount the service entrance disconnect on walls.
• Customization: The
• Applications: This switchgear is suitable for indoor/outdoor use and applications including, but not limited to, battery energy storage installations, construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations.
• Customer Compliance: The final arrangements, sizes, ratings, settings, configuration, and installation details of this equipment will be established in accordance with detailed engineering review, applicable project documentation, and customer approval prior to manufacture.

This item is grouped with Fused Disconnect Switches - Wall Mount Disconnects.

Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
