Model:
MPD-DS-FS-FDS-3P-4W-4160V-400A-EF-BM-N3R-M1SKU:
MPD-DS-FS-FDS-3P-4W-4160V-400A-EF-BM-N3R-M1Availability:
In StockDocuments:
Spec Sheet
$99,929.48
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

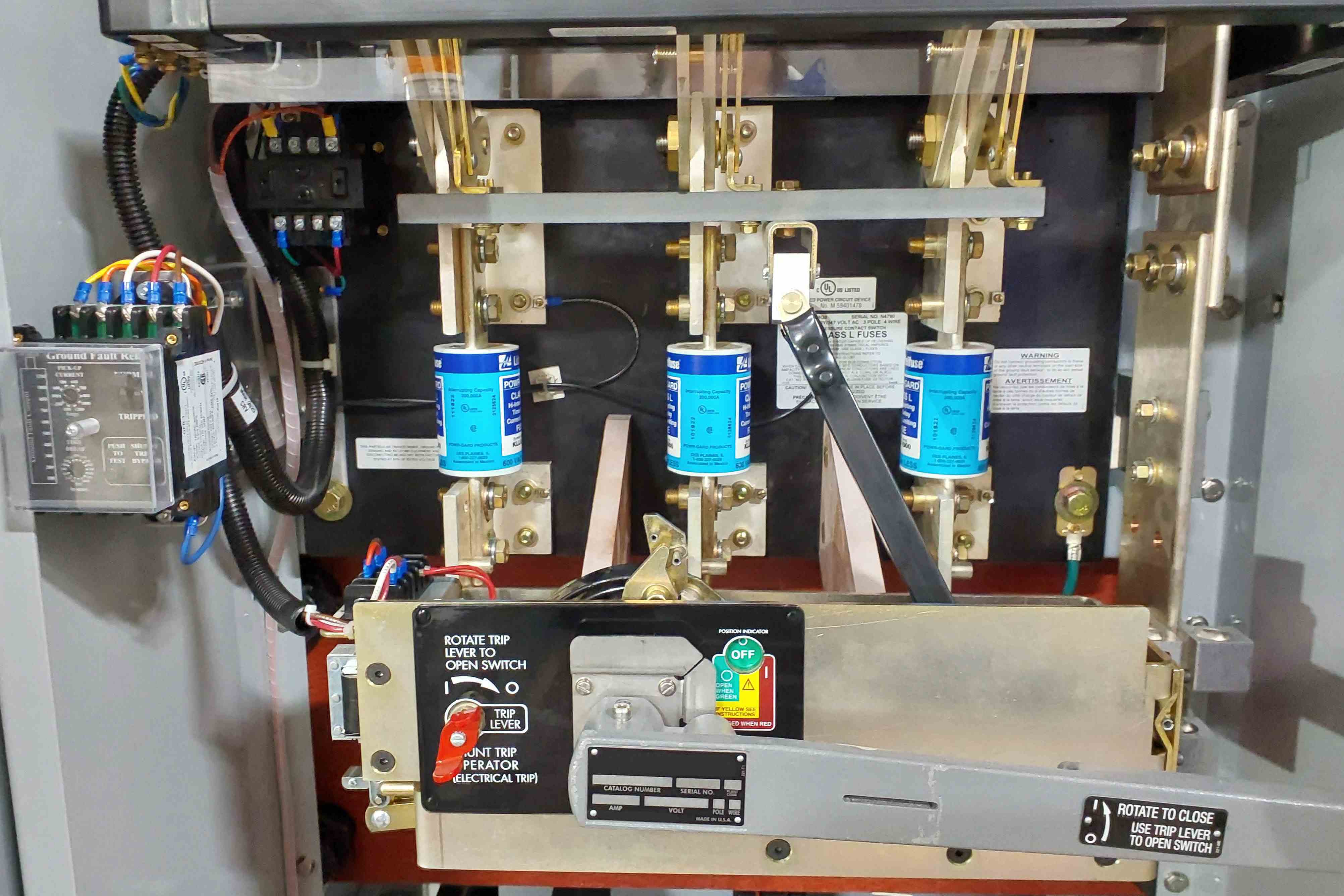

Fused Medium Voltage Disconnect Switch, 400 Amp, 4160V 3PH AC, 3-Pole 4-Wire, (3) Current Limiting Fuses, NEMA 3R is a product intended for professional commercial and industrial applications.
Key Specifications
- Operation: The dead front disconnect switch features a locking door. The door provides access to a permanently attached operating handle, which is used for manually disconnecting or connecting power. A dead front cover protects operators from the fuses for safety. Operators can inspect the fuses through the dead front via a vented cover. Removing the dead front allows access to the fuses.
- Current Limiting Fuse: A current-limiting fuse is a type of electrical fuse designed to limit the amount of current that can pass through it during a fault condition. It does this by rapidly melting and opening the circuit when the current exceeds a predetermined threshold. The key feature of a current-limiting fuse is its ability to quickly interrupt high levels of fault current, protecting downstream equipment and minimizing damage to the electrical system.
- Enclosure Design: The disconnect switch is protected by an 11GA sheet steel enclosure with ANSI 49 grey finish. A ventilated design promotes natural cooling and improves performance. The enclosure is NEMA 3R rated for protection against water, moisture, and debris. This rating allows the fused disconnect to be used in indoor and outdoor areas.
- Certification: This disconnect switch is NRTL listed to UL 891 dead front switchboards and NRTL listed for service equipment.
- Mount: Operators can mount the service entrance disconnect on floors and flat surfaces.
- Applications: This switchgear is suitable for indoor/outdoor use and applications including, but not limited to, construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations.
This item is grouped with Fused Disconnect Switches - Floor Mount Service Entrance Disconnects.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Applications
This switchgear is suitable for indoor/outdoor use and applications including, but not limited to, construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations.
Certification
This disconnect switch is NRTL listed to UL 891 dead front switchboards and NRTL listed for service equipment.
Current Limiting Fuse
A current-limiting fuse is a type of electrical fuse designed to limit the amount of current that can pass through it during a fault condition. It does this by rapidly melting and opening the circuit when the current exceeds a predetermined threshold. The key feature of a current-limiting fuse is its ability to quickly interrupt high levels of fault current, protecting downstream equipment and minimizing damage to the electrical system.
Enclosure Design
The disconnect switch is protected by an 11GA sheet steel enclosure with ANSI 49 grey finish. A ventilated design promotes natural cooling and improves performance. The enclosure is NEMA 3R rated for protection against water, moisture, and debris. This rating allows the fused disconnect to be used in indoor and outdoor areas.
Mount
Operators can mount the service entrance disconnect on floors and flat surfaces.
Operation
The dead front disconnect switch features a locking door. The door provides access to a permanently attached operating handle, which is used for manually disconnecting or connecting power. A dead front cover protects operators from the fuses for safety. Operators can inspect the fuses through the dead front via a vented cover. Removing the dead front allows access to the fuses.
