Spec Sheet
$3,010.19
Estimated price. Final price and availability are subject to confirmation. Contact our sales team for a current quote.
Product Overview

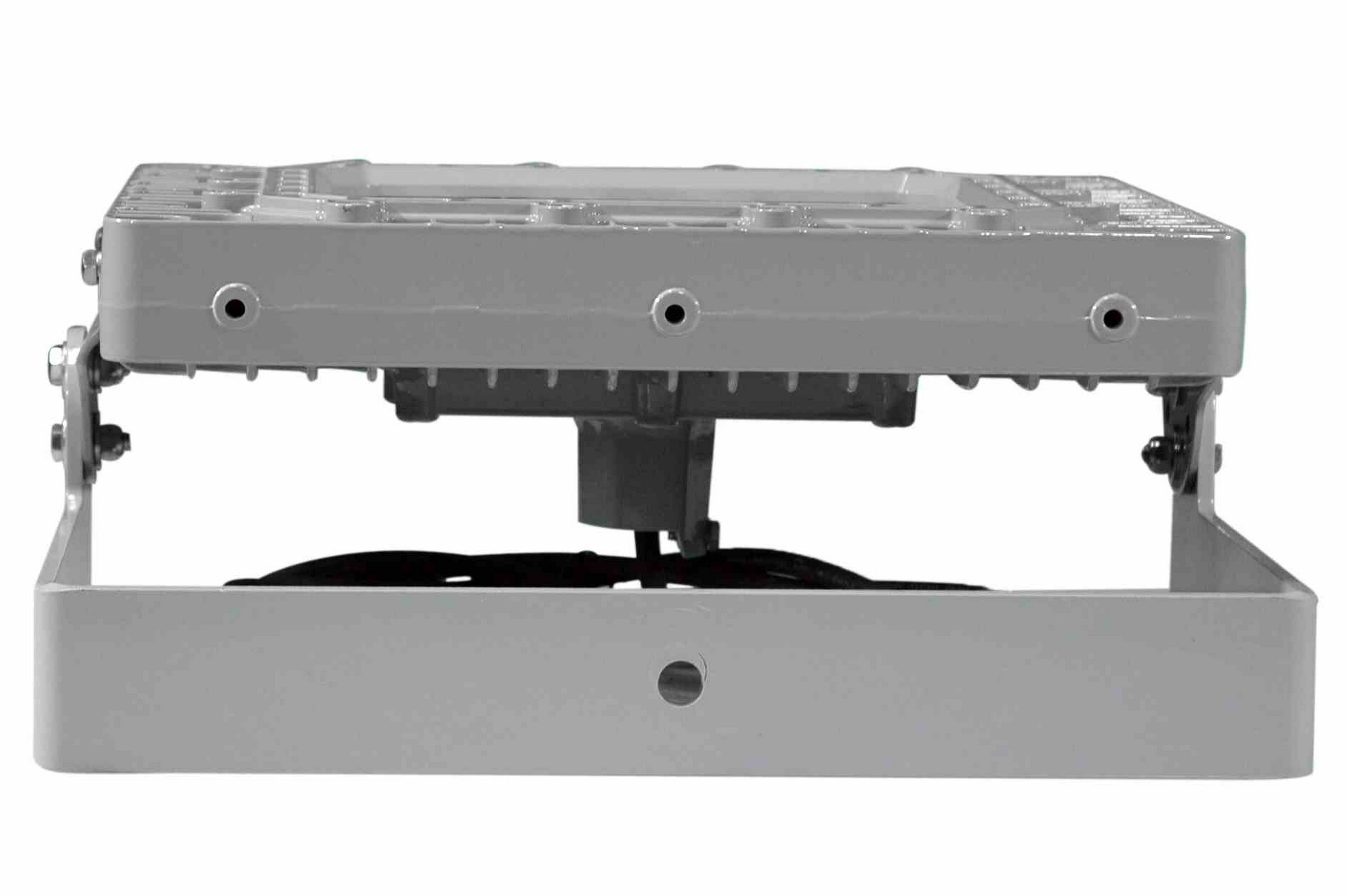

Hazardous Location Lighting - 150 Watts - 17,500 Lumens - C1D2 / C2D1 - Surface Mount is a product intended for professional commercial and industrial applications.
Key Specifications
- Listing: United States - Canada
- Lamp Type: LED
- Dimensions: 14"H x 16"W 5"D
- Weight: 32 lbs
- Voltage: 100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC
- Total Watts: 150W
- Total Lumens: 17,500
- Luminous Efficiency: 166.67 Lm/W
- Lamp Life: 60,000+ Hours
- Color Temp: 5600K, 4500K, 3000K
This item is grouped with Hazardous Location Area Lights and Portable Lighting.
Before ordering: Verify ratings, dimensions, compatibility, and installation requirements before ordering.
Specifications
Ambient Operating Temp Range
-50°C to +65°C
Amperage
1.25A @ 120V, 0.63 @ 240V, 0.54 @ 277V
Beam Angle
60° or 125°
Dimensions
14"H x 16"W 5"D
Gasket Material
Silicone
Housing Material
Copper Free Cast Aluminum
Input Current
1.8A Max
Lighting Configuration
Flood Pattern
Listing
United States - Canada
Luminous Efficiency
166.67 Lm/W
Mounting
Trunnion Mount
Operating Temp Rating
T5
Output Current
2.1A
Output Voltage
54V Max
Power Efficiency
>95%
Total Lumens
17,500
Total Watts
150W
Voltage
100-277 Volts AC, 50/60Hz or 11-25 Volts AC/DC
Weight
32 lbs
Wiring Hub
3/4" NPT
Technical
Color Rendering Index
>75 CRI
Color Temp
5600K, 4500K, 3000K
Input Voltage
100-277 Volts AC
Lamp Life
60,000+ Hours
Warranty
Yes - 5 Years* - 10 Year / 100,000 Lumen Available**
Wiring
10` 16/3 SOOW w/ Flying Leads
Lamp Type
LED
Power Factor
0.992
Lens Material
Hardened Borosilicate Glass
